On-Site Repair Kit Guide for STRATA_HEAT
Warranty Disclaimer:
This guide and the repair kit included have
been provided by LATICRETE, Inc. to aid in the repair of STRATA_HEAT™ Wire
systems damaged on-site. LATICRETE cannot warranty the repair or guarantee
the proper function of the heating system following a repair. LATICRETE
recommends that all repair work be carried out by a qualified electrician and
conform with current IEE Wiring Regulations.
For any further assistance, please contact LATICRETE at 1-800-243-4788.
CAUTION: Before commencing with the repair, ensure that the heating
system has been completely disconnected from the power source.
Tools & Items Required for Repair
1. One Repair kit consisting of:
2x Large heat shrink
12x Small heat shrink
12x Small butt crimp
1x Length of bridge wire
2. Crimping Tool
3. Heat gun
4. Stanley knife / Wire strippers
5. Side cutters
6. Multimeter
Testing of the Heater During and After Repair
Do not tile if the heater does not pass all the tests.
There may be a problem with new joint or additional wire breaks.
Actual value should be +/-5%.
Contact LATICRETE at 1-800-243-4788 for further assistance.
Wire Repair Kit
On-Site Repair Kit Guide
1
Wire Systems
™

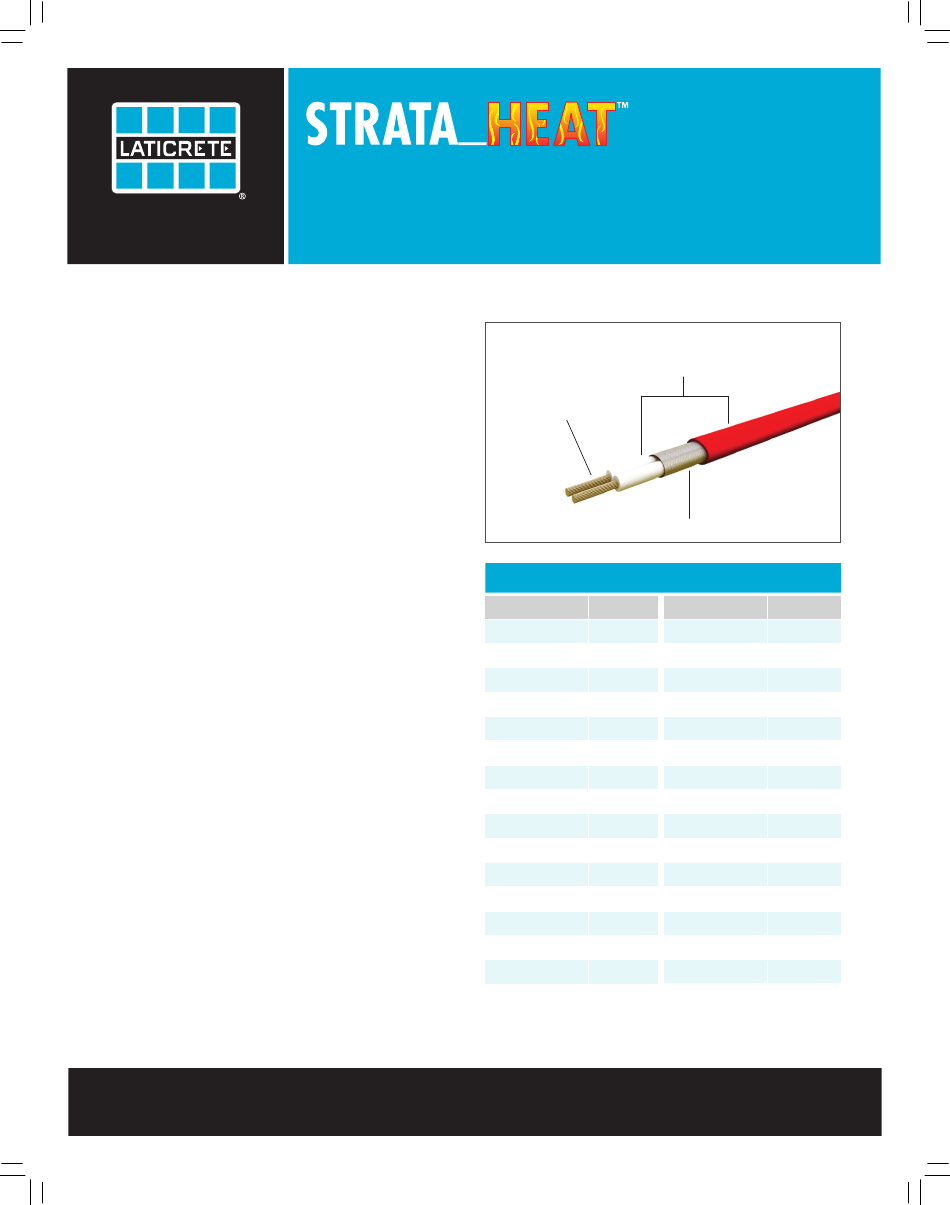

Heating Wire Construction
ADVANCED FLUOROPOLYMER INSULATION
MULTI-STRAND
TWIN CONDUCTORS
GROUND BRAID
STRATA_HEAT
Wire Systems
™
120V Model
Resistance
0802-0017-2
221.5
0802-0034-2
110.8
0802-0050-2
73.8
0802-0067-2
55.4
0802-0084-2
44.3
0802-0100-2
36.9
0802-0133-2
27.4
0802-0166-2
22.0
0802-0200-2
18.3
0802-0233-2
15.6
0802-0266-2
13.7
0802-0299-2
12.2
0802-0332-2
11.0
0802-0365-2
10.0
0802-0398-2
9.1
240V Model
Resistance
0802-0083-4
177.2
0802-0100-4
147.7
0802-0133-4
109.7
0802-0166-4
87.9
0802-0200-4
73.4
0802-0233-4
62.6
0802-0266-4
54.9
0802-0299-4
48.8
0802-0332-4
44.0
0802-0415-4
35.1
0802-0498-4
29.2
0802-0581-4
25.0
0802-0664-4
21.9
0802-0747-4
19.5
0802-0830-4
17.8
Advertisement
Related Manuals for LATICRETE STRATA_HEAT 120V
Summary of Contents for LATICRETE STRATA_HEAT 120V
- Page 1 Warranty Disclaimer: This guide and the repair kit included have Heating Wire Construction been provided by LATICRETE, Inc. to aid in the repair of STRATA_HEAT™ Wire systems damaged on-site. LATICRETE cannot warranty the repair or guarantee ADVANCED FLUOROPOLYMER INSULATION the proper function of the heating system following a repair. LATICRETE...
- Page 2 Use side cutters to remove any Use the wire strippers or Stanley knife to damaged heating wire. carefully remove approximately 2 in. (50 mm) of the outer sheath to expose the ground braid on both ends of the wire cut. Unravel the ground braid on both ends of Twist the ground braid.
- Page 3 Cut a section of the “bridge” wire provided to Slide the small heat shrink pieces over the a length suitable to replace the wire removed butt crimps so that any bare metal is covered. from the heating elements. Strip 0.4 in. Use a heat gun in order to activate the heat (10 mm) from either end of this wire and shrink.
- Page 4 For any further assistance, please contact LATICRETE at 1-800-243-4788. + 1.203.393.0010 LATICRETE International, Inc. One LATICRETE Park North, Bethany, CT 06524-3423 USA 1.800.243.4788 www.laticrete.com DS-049.1-0217 ©2017 LATICRETE International, Inc. All trademarks shown are the intellectual properties of their respective owners.
- Page 5 Avis de non-responsabilité de la garantie : Ce guide et la Construction de fil de chauffage trousse de réparation incluse ont été fournis par LATICRETE, Inc. pour aider dans la réparation des systèmes de fils STRATA_HEAT endommagés sur site. ISOLANT FLUOROPOLYMÈRE AVANCÉ...
- Page 6 Utilisez des couteaux latéraux pour enlever Utilisez les dénudeurs de fils ou un couteau tout fil de chauffage endommagé. Stanley pour enlever soigneusement environ 50 mm (2 po) de la gaine extérieure et exposer la tresse de terre aux deux extrémités de la coupe de fil.
- Page 7 Coupez une section du fil « pont » fourni à Glissez les petits morceaux du tube une longueur adéquate pour remplacer le fil thermorétrécissable sur les embouts de enlevé des éléments de chauffage. Dénudez sertissage, afin que tout métal nu soit 10 mm (0,4 po) de chaque extrémité...
- Page 8 Pour davantage d’aide, veuillez communiquer avec LATICRETE au 1-800-243-4788. + 1.203.393.0010 LATICRETE International, Inc. One LATICRETE Park North, Bethany, CT 06524-3423 USA 1.800.243.4788 www.laticrete.com DS-049.1-0217 ©2017 LATICRETE International, Inc. Toutes les marques présentées sont la propriété intellectuelle de leurs propriétaires respectifs.
- Page 9 Esta guía y el kit de reparación incluidos han sido Construcción del cable de calefacción proporcionados por LATICRETE, Inc. para ayudar en la reparación de sistemas de cables STRATA_HEAT™ dañados en el sitio. LATICRETE no garantiza la AISLAMIENTO DE FLUOROPOLÍMERO AVANZADO reparación ni el correcto funcionamiento de la calefacción después de una...
- Page 10 Utilice los cortadores para quitar Use el pelacables o el cuchillo Stanley cualquier cable de calefacción dañado. para retirar de manera cuidadosa aproximadamente 50 mm (2 pulg.) de la vaina externa, para exponer la trenza de tierra en ambos extremos del cable cortado. Desenrede la trenza de tierra en ambos Retuerza la trenza de tierra.
- Page 11 Corte una sección del cable de “puente” a Deslice los termoencogibles pequeños sobre una longitud conveniente para reemplazar el los engarzados de tope para que cualquier cable retirado de los elementos de calefacción. parte metálica desnuda quede cubierta. Quite 10 mm (0.4 pulg.) de cada extremo Utilice una pistola de calor para activar el de este cable y encaje estos extremos en los termoencogible.
- Page 12 Para cualquier asistencia adicional, póngase en contacto con LATICRETE en 1-800-243-4788. + 1.203.393.0010 LATICRETE International, Inc. One LATICRETE Park North, Bethany, CT 06524-3423 USA 1.800.243.4788 www.laticrete.com DS-049.1-0217 ©2017 LATICRETE International, Inc. Todas las marcas comerciales son propiedad intelectual de sus respectivos propietarios.
