TUFFY CENTER SECURITY CONSOLE #'s 012, 013, 016, 017,
Please read and fill out the enclosed warranty registration card to activate your warranty.

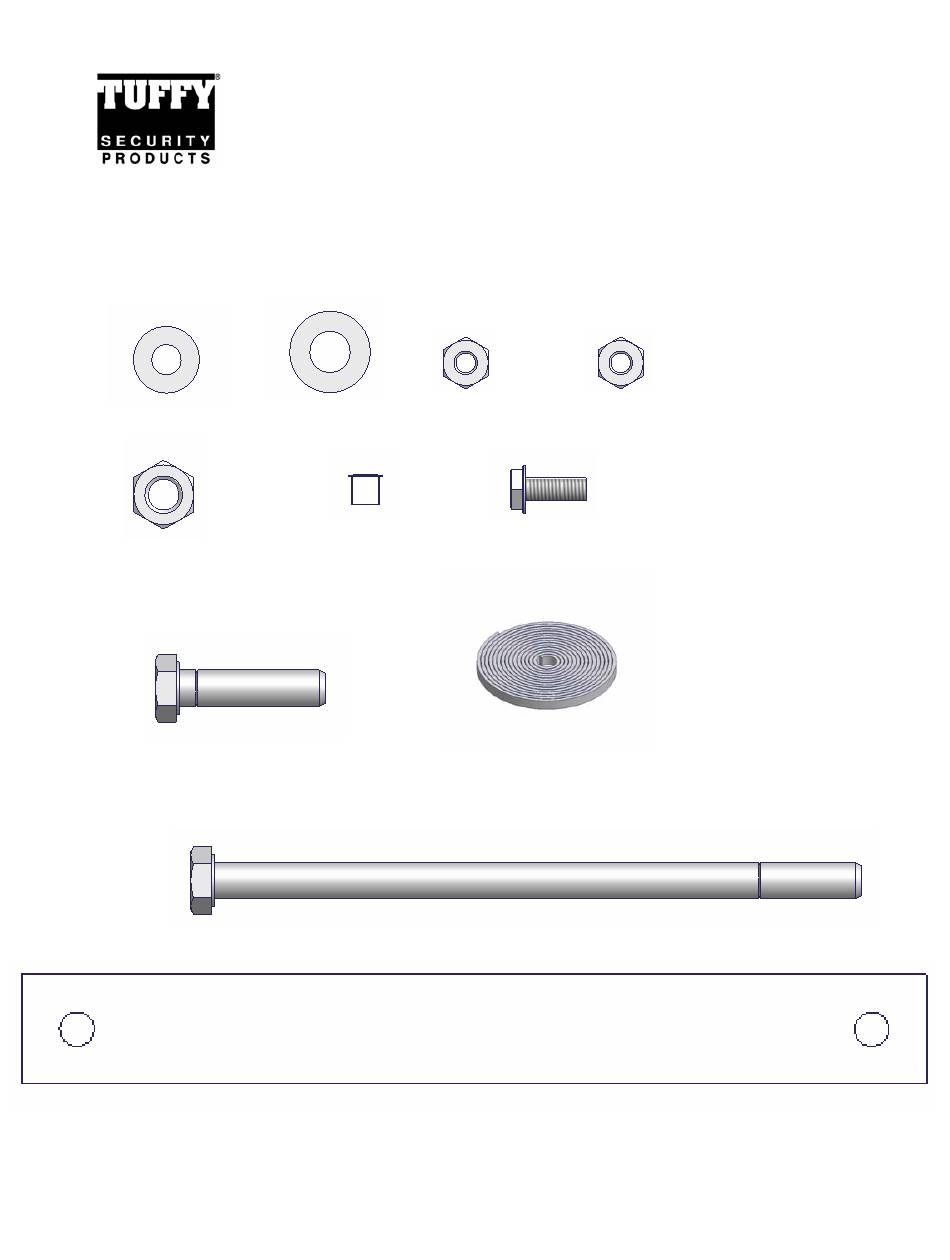

PARTS CHECKLIST
(9)3/16" Washers
(6)5/16" Washers
(3)5/16" Nuts
(1) 5x16x1-3/4" Bolt
INSTALLATION INSTRUCTIONS
023, 024, 032, 033
Call (970) 564-1762 for Technical Support
(5)10-32 Nuts
(2)1/4" Hole Plugs
(2) 5/16x5-1/2" Bolts
(2)Seat Belt Straps
Page - 1 - of 3 - 1/28/2008 – Rev122006
(4)10-32 Acorn Nuts
(8)10-32x1/2" Bolts
Rubber Seal
Advertisement
Table of Contents
Summary of Contents for Tuffy 012
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS TUFFY CENTER SECURITY CONSOLE #’s 012, 013, 016, 017, 023, 024, 032, 033 Call (970) 564-1762 for Technical Support Please read and fill out the enclosed warranty registration card to activate your warranty. PARTS CHECKLIST (9)3/16” Washers (6)5/16” Washers... - Page 2 NOTE: If a stereo is to be mounted in the console an antenna extension wire will be required and is available at most stereo equipment stores. 6. Run all required stereo and speaker wires to the console mounting location. Tuffy recommends running wires in a protective wire loom and using rubber grommets when passing through any drilled holes.
- Page 3 10. Fasten down the rear of the console through Holes #4 & #5 using (2) 5/16”x 5-1/2” Bolts, (2) 5/16” Locknuts, and (4) 5/16” Washers. Fasten down the front of the console through Hole #3 using (1) 5/16” x 1-3/4” Bolts, (1) 5/16” Locknut, and (2) 5/16” Washers. 11.
