Winegard Entertainment Select VS Series Service Tips

Service Tips
Winnebago Industries
recently started offering the
Winegard Entertainment
Selector System in
vehicles. Over the years we
have used several
video selectors to keep pace
with our entertainment system
offerings. The most noticeable
improvement in the Winegard
selector over previous models
we have used is
incorporates a built-in antenna
amplifier switch. The following
is from the Winegard
Entertainment Select owner's
manual.

Features

• Simple push button controls
allow you to send signals from
any one of five different inputs
to two TVs and VCR.
• Five inputs are Satellite
Receiver, TV Antenna, VCR,
Cable TV and Auxiliary.
• Three Outputs: Main TV, TV
2, VCR.
• Built-in
+12 VDC
antenna power
eliminates need for separate
wall mounted TV antenna power
supply.
• Self-resetting fuses used in
antenna power supply prevent
failure caused by
connections.
• Video
switch allows
independent viewing of signals
at different TVs, with a record
option from VCR.
• Low profile housing blends
nicely with other electronic
components; fits easily
overhead cabinets.
• Shielded circuitry for high
isolation and low signal loss.
• Oversize,
easy
graphics for proper function
selection when mounted in out
of the way locations.
V
IDEO
has
certain

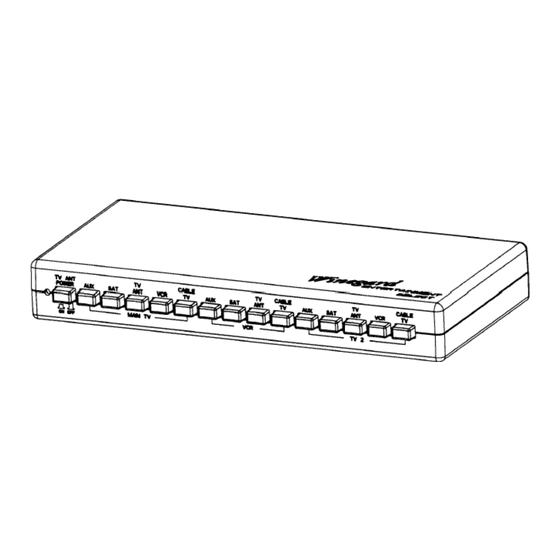

Model shown has five inputs, three outputs
different
that it

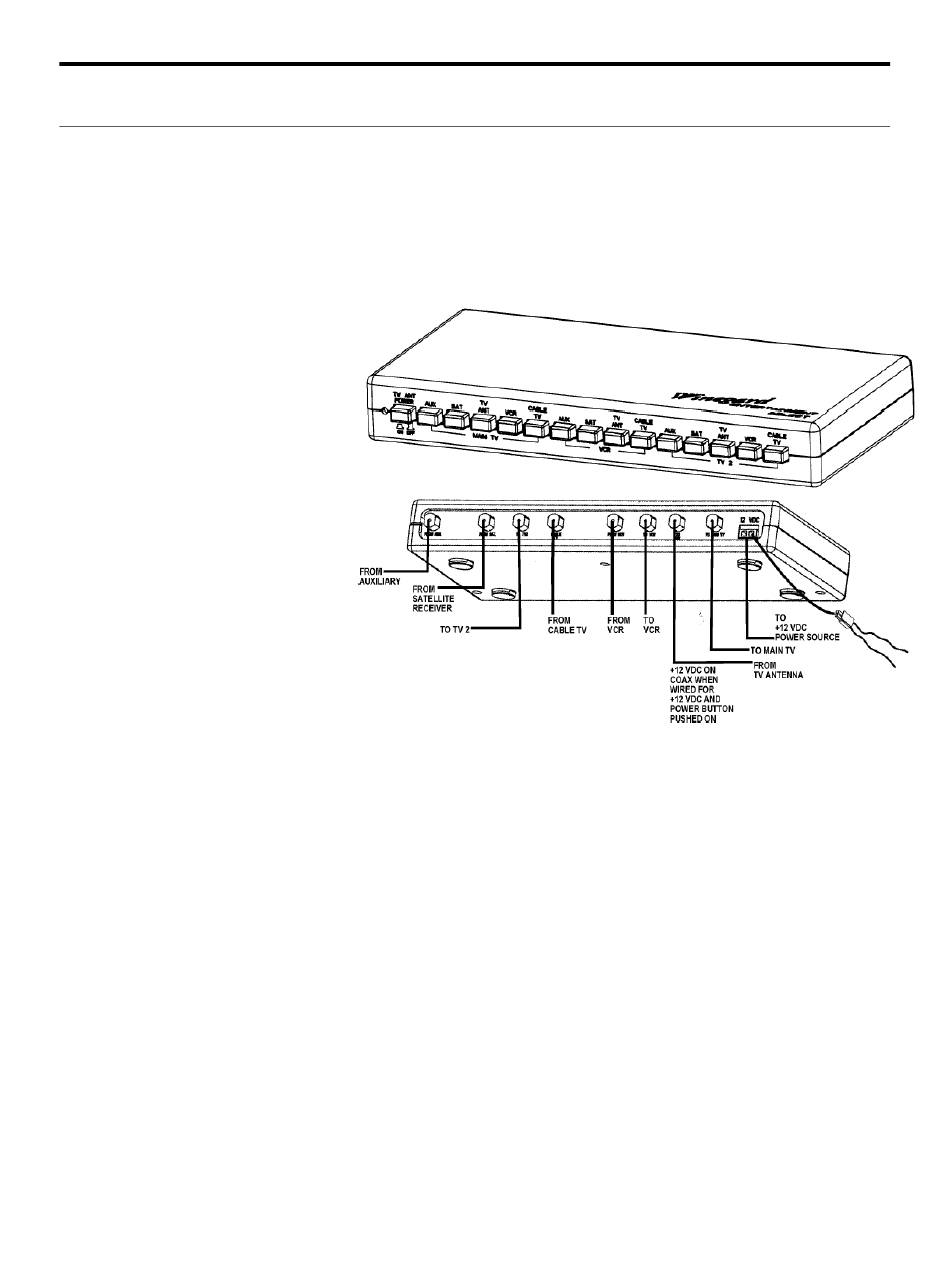

Coax Cable Connections

Step 1 Connect the coax
TV
cable from the output on the
supply
switch box marked "To Main TV"
to the antenna input connection
on the back of the main TV.
Step 2 Connect the coax
cable from the output on the
switch box marked "To TV 2" to
shorted
the antenna input connection on
the back of the second TV.
for
Step 3 Connect the coax
cable from the output on the
switch box marked "To VCR" to
the input connection on the back
of the VCR.
Step 4 Connect the coax
in
cable from the output of the
VCR to the coax connection on
the back of the switch box
marked "From VCR."
to read
Step 5 Connect the coax
cable from the exterior Cable TV
input plate
connection on the switch box
marked "From Cable TV."
WIT Club News – September 2002
S
ELECTOR
Winegard Entertainment Select
All VS Models
to the coax
.
Step 6 The output of the
auxiliary device (TV
camcorder, etc.) can
connected to the
connection marked "From Aux."
Step 7 Connect the coax
cable from the output of the
satellite receiver marked "To
TV" to the input connection on
the back of the switch box
marked "From Sat."
NOTE: The coax cable from
the satellite antenna must go
directly to the input of the
satellite receiver
"Satellite In'."
Step 8 Connect the coax
cable from the TV antenna to
the coax connection on the back
of the switch box marked "From
TV Ant."

Power Connections

NOTE: When hooking up an
amplified antenna see Figure C.
If you are unsure whether your
antenna is amplified or non-
game,
be
input
marked
