AIR COMFORT
AIR TREATMENT
9191 GB 2015.09.29
general
• Admissible environmental temperature: from -15 °C up to
+40 °C, with altitudes 1000 m above sea level
• Mounting: IM B3, B5
• Drive operating voltage: 400 VAC
• Insulation class: "F"; temperature rise to class B
(TEFC execution)
• IP55 degree of protection for the whole range
• Reduced dimensions
• Rare earth permanent magnets
Speed controller and motor shall be installed by a qualified
electrician with adequate knowledge how to install speed-
controlled drive systems (frequency inverters) and EMC safety.
All cabling must comply with national and local regulations on
cable cross-sections and ambient temperature.
Fläkt Woods
9191 GB 2015.09.24

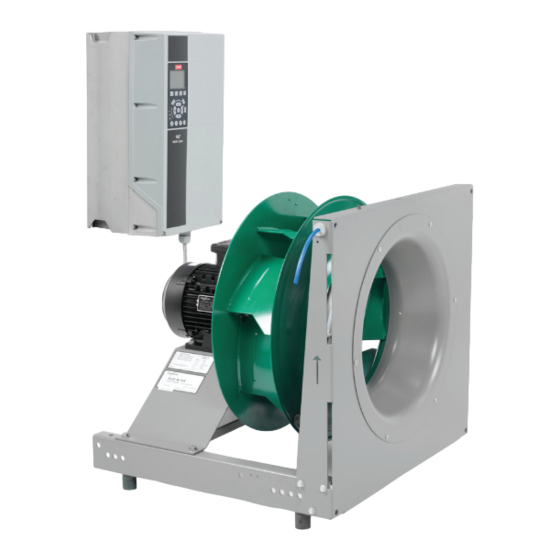

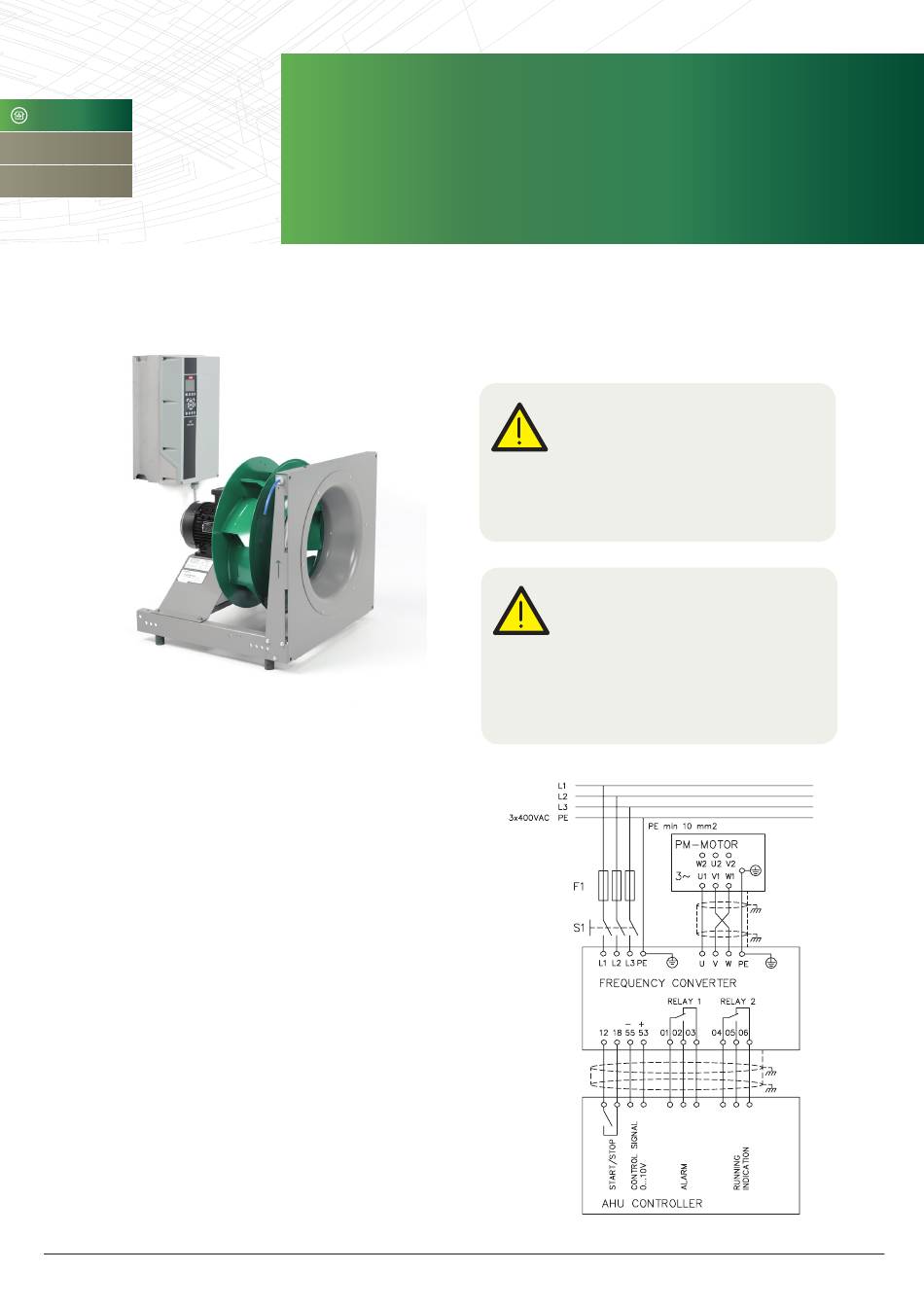

flÄkt woods pm-motor
WITH SUPPLIED FC 102 FREQUENCY CONVERTER

installation

» INSTALLATION AND MAINTENANCE INSTRUCTIONS
warning!
The motor is designed exclusively for
operation with the supplied speed control
Direct on-line connection to the mains is not
possible for PM-motors.
warning!
Risk of electric shock:
Motor terminals may still be live if the impeller
is rotating, even when the main incoming
supplied has been isolated.
Ensure the impeller is kept stationary before
opening and whilst the terminal box is open.
Specifications are subject to alteration without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM and is the answer not in the manual?

Questions and answers

Summary of Contents for flakt woods PM

  • Page 1 AIR COMFORT AIR TREATMENT WITH SUPPLIED FC 102 FREQUENCY CONVERTER 9191 GB 2015.09.29 » INSTALLATION AND MAINTENANCE INSTRUCTIONS installation warning! The motor is designed exclusively for operation with the supplied speed control (frequency converter). Direct on-line connection to the mains is not possible for PM-motors.
  • Page 2: Control Cable

    Installation and maintenance instructions Fläkt Woods PM-Motor With suPPlied FC 102 FrequenCy Converter supply Cable Control Cable Mount mains supply to terminals L1, L2 and L3 and ground Control cable should be shielded. Keep control cable distance wires to earth terminal and tighten.
  • Page 3 Installation and maintenance instructions Fläkt Woods PM-Motor With suPPlied FC 102 FrequenCy Converter reset of original parameters frequenCy Converter • Go to parameter 0-50 LPC Copy • Set parameter value to 2 (All from LCP) warning! • Wait that copy is completed...
  • Page 4 Installation and maintenance instructions Fläkt Woods PM-Motor With suPPlied FC 102 FrequenCy Converter VLT HVAC Drive High Power Operating In- structions 5 How to Operate the Frequency Converter installation at high altitudes 5 How to Operate the Frequency Converter Voltage (V) Min.
  • Page 5 Menu] key for 3 seconds. The parameter shortcut allows direct access display indication during normal operation. Fläkt Woods PM-Motor to any parameter. With suPPlied FC 102 FrequenCy Converter [Alarm Log]...
  • Page 6 [Off] key is inactive the motor can only be stopped by disconnecting the mains supply. Fläkt Woods PM-Motor Operation Keys for local control are found at the bottom of the con- With suPPlied FC 102 FrequenCy Converter trol panel.
