Summary of Contents for Vagner Pool Cantabric

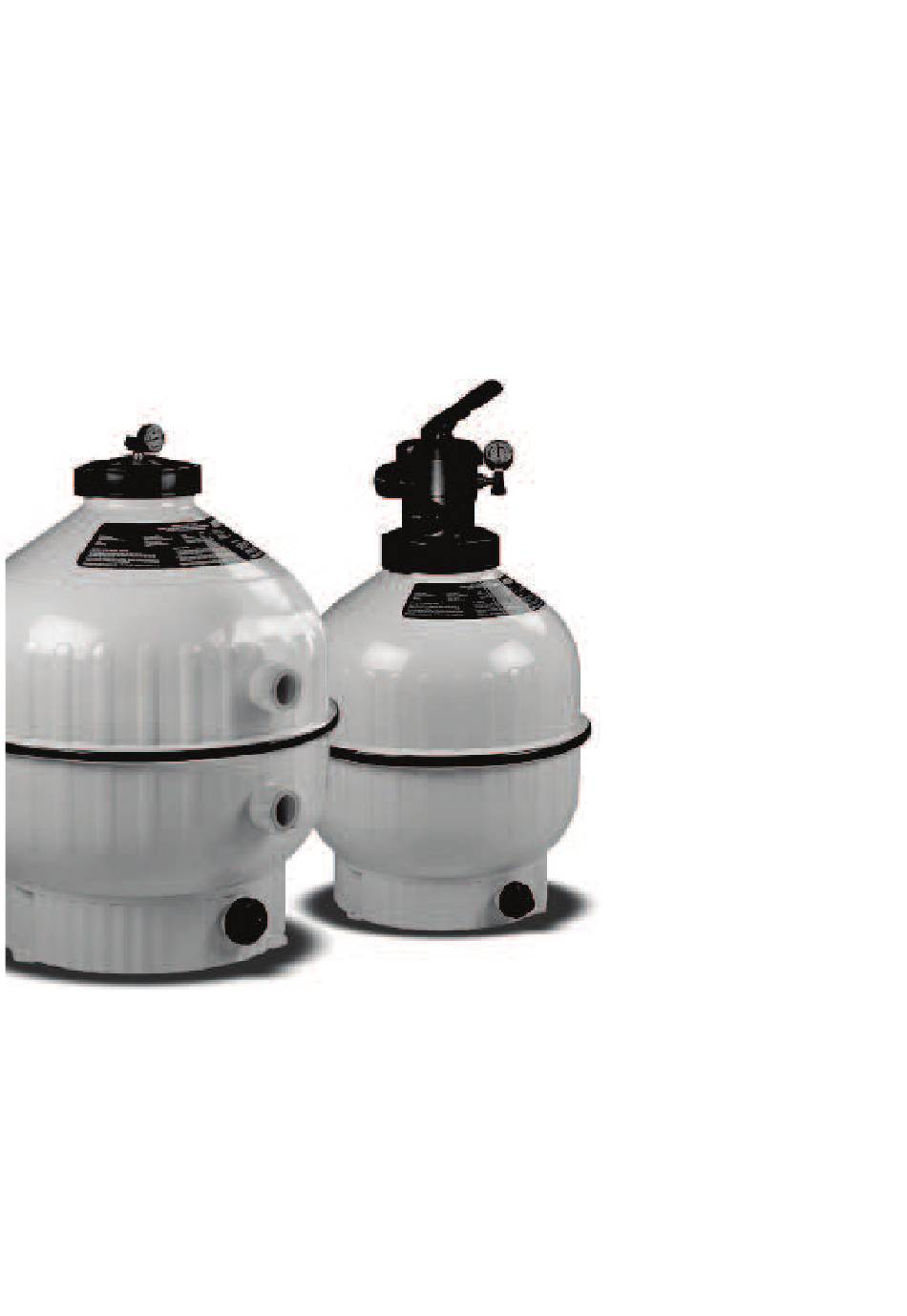

- Page 1 HIGH SPEED SAND FILTERS FILTRES À SABLE RAPIDE FILTROS A SILEX DE ALTA VELOCIDAD FILTRI A SABBIA AD ALTA VELOCITÁ SANDFILTER FILTROS DE AREIA DE ALTA VELOCIDADE C A N T A B R I C INSTALLATION AND MAINTENANCE MANUAL MANUEL D’INSTALLATION ET D’ENTRETIEN MANUAL DE INSTALACIÓN Y MANTENIMIENTO MANUALE DI INSTALAZIONE E MANUTENZIONE...
- Page 2 ENGLISH IMPORTANT: The instruction manual you are holding includes essential information on the safety measures to be implemented for installation and start-up. Therefore, the installer as well as the user must read the instructions before beginning installation and start-up. Keep this manual for future reference. To achieve optimum performance of the Filter, follow the instructions provided below: What happens to the water in your pool? This should be a question of prime consideration for all pool owners.
-
Page 3: Working Principles
What is understood by free or residual chlorine? Even after the filtering process, certain bacteria remains to be destroyed by the disinfecting action of the chlorine which is usually acting on the bacteria in the form of hyperchloric acid. A quantity of chlorine that is added to the water (in excess of that needed to destroy bacteria and oxidize organic material) remains free to combat new bacteria introduced by bathers or atmospheric agents. -
Page 4: Installation
INSTALLATION The filter should be installed as close as possible to the swimming pool and preferably at a level of 0,50 metres below the surface of the water in the swimming pool. Make sure there is drainage available at the place where the filter is to be installed. -
Page 5: Filtration Process
FILTRATION PROCESS The selector valve has a handle of 6 positions that selects any of the necessary operations to obtain the maximum efficiency from the filter. IMPORTANT: Always switch off the pump, when changing the position of the selector valve. FILTRATION With the pump switched off, place the handle of the selector valve in the FILTERING position. - Page 6 RECIRCULATE In this position, the selector valve allows the water from the pump to go directly to the swimming pool without passing through the inside of the filter. WASTE If the swimming pool needs to be drained, this can be done using the filter pump. In order to do this, the selector valve should be in the “WASTE”...
-
Page 7: Maintenance
MAINTENANCE Do not use solvents for cleaning the filter, this could damage the filter, especially its finish. Always replace the joints and pieces that may not be in good condition. Backwash and rinse when needed, as per the instructions specified in this manual. Clean the sand every year for a better performance with solid or liquid ASTRAL Filnet product. -
Page 8: General Terms
Product, the guarantee will only be valid if this time schedule has been followed. 2.4. The manufacturer of the product offers the possibility of extending the guarantee of Cantabric filters from the third year up to the fifth or tenth year depending on the model as indicated below. This Guarantee Extension is governed by the following terms: 2.4.1. - Page 9 2.4.7. In order for the guarantee extension period to be valid, the purchaser must provide proof of the date of acquisition and delivery of the product. 2.4.8. The guarantee extension will not be valid if the product has been inspected or repaired by persons not authorised by the manufacturer.
- Page 11 ENGLISH CODE DESCRIPTION Ø400 Ø500 Ø600 Ø750 Ø900 QUAN 22398R0101 Filter body Ø400 15782R0101 Filter body Ø500 15783R0101 Filter body Ø600 15784R0101 Filter body Ø750 22402R0101 Filter body Ø900 00555R0202A Transparent lid set 22402R0208A Transparent lid set 7211820060 O-ring 7722330050 O-ring 00570R0205 Pressure gauge kit...
- Page 13 ENGLISH CODE DESCRIPTION Ø400 Ø500 Ø600 Ø750 Ø750 2” QUAN 22399R0101 Filter body Ø400 15780R0101 Filter body Ø500 15781R0101 Filter body Ø600 19822R0101 Filter body Ø750 7211820060 O-ring 00570R0205 Pressure gauge kit 06611R0301 Pressure gauge kit (USA) 06611R0204 Threaded lid 15784R0500 Threaded lid broken 20565...
- Page 14 x TECHNICAL CHARACTERISTICS x CARACTERISTIQUES TECHNIQUES x CARACTERISTICAS TECNICAS x DATI TECNICI x TECHNISCHE ANGABEN x CARACTERISTICAS TECNICAS Pressure gauge Manomètre 6-way selector valve Manómetro Vanne multivoies 6 positions Manometro Válvula selectora de 6 vías Manometer Valvola a 6 vie Manõmetro 6-Wege-Ventil Válvula de 6 vias...
- Page 15 FILTER DIAMETER / DIAMETRE DU FILTRE DIAMETRO 400 mm 500 mm 600 mm 750 mm 900 mm DEL FILTRO / DIAMETRO DEL FILTRO 16” 20” 24” 30” 36” FILTERDURCHMESSER / DIÂMETRE DO FILTRO FILTRATION AREA / SURFACE FILTRATION 0,126 m² 0,196 m²...
- Page 16 x DIMENSIONS x DIMENSIONS x DIMENSIONES x DIMENSIONI x ABMESSUNGEN x DIMENSÃOS MODEL / MODELÈ / MODELO MODELO / MODELL / MODELLO (mm / inch) (mm / inch) (mm / inch) (mm / inch) Ø 400 / 16” 715 / 28 380 / 14 2555 / 10 315 / 12...
