iiSM VPism Series User Manual

Vein probe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
[VPism-C(P)]
February. 23. 2018
1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPism Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for iiSM VPism Series

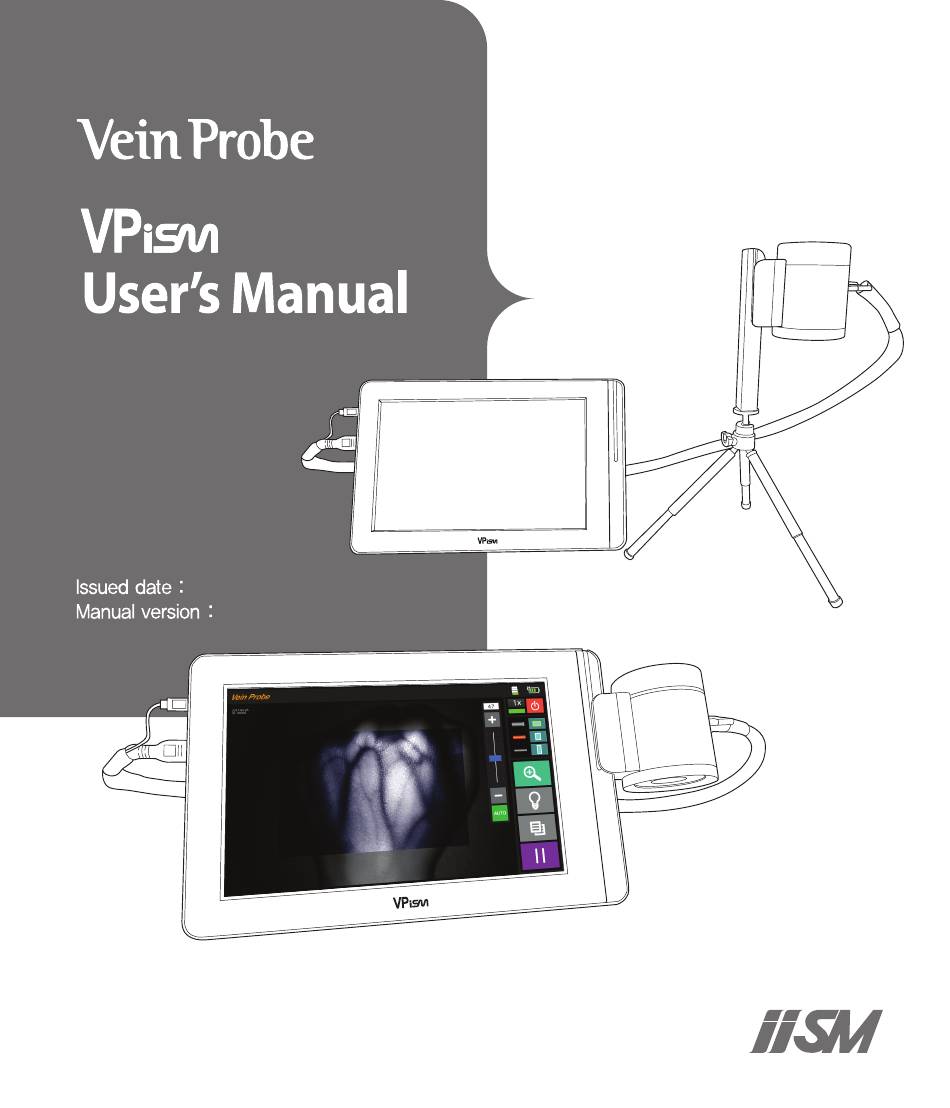

  • Page 1 [VPism-C(P)] February. 23. 2018...

  • Page 3: Warnings And Cautions

    Inc. 402, 7-16, Naseongnam-ro, Sejong-si 30129, Korea Thank you for purchasing a product of iiSM Inc. Phone : (82)-44-863-9852 www.iism.co.kr We will do our best for your convenience and safety. This User’ s Manual contains information about the operation of the VPism and precautions during its usage.
  • Page 4 The VPism aids in identifying and locating hypodermic veins during medical procedures by detecting and showing real-time video of veins. The VPism has built-in batteries which makes it portable. 1. Before using the VPism CONTENTS Symbols Glossary ● Identification Label ●...

  • Page 5: Symbols Glossary

    Before using the VPism Symbols Symbols are used in this guide and apply to hazards or unsafe practices which could result in personal injury or property damage. See the information Glossary below for definitions of symbols. Symbol Description WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in serious injury or loss of life.

  • Page 6: Identification Label

    100-240 V~, 50/60 Hz, 50 VA Please read the user’ s manual carefully before use. iiSM Inc. Rm 402, 7-16, Naseongnam-ro, Sejong-si, 30129, Korea TEL : +82-44-863-9852 www.iism.co.kr MT Promedt EC REP Altenhofstrasse 80, 66386 St. Ingbert, Germany 05 |...
  • Page 7 Before using the VPism Identification B. Accessory Label Model : SLism-F Please read the user’ s manual carefully before use. iiSM Inc. MT Promedt EC REP 402, 7-16, Naseongnam-ro, Altenhofstrasse 80, 66386 St. Sejong-si 30129, Korea Ingbert, Germany Model : SLism-N Please read the user’...
  • Page 8 The operator must read and beware of all the instructions, cautions and warnings for the safety of the patient and to prevent any accidents from occurring. (iiSM Inc. is not obligated to be responsible for any injuries or accidents occurring from not complying to all the warnings and cautions.)
  • Page 9 3) The internal battery should not be replaced or disconnected. Any attempt to disassemble or replace the battery will void the warranty. 4) Please contact the local distributor or iiSM Inc. when replacement or repair is necessary. (subject to payment) 5) Please dispose the VPism following the laws of disposal or recycling of electronic devices.

  • Page 10: Package Components

    VPism is used.) Specialized light source can be used to view blood vessels more clearly. ● Hygienic pad can be used to be more tidy and clean. ● 09 | iiSM Inc.

  • Page 11: User Controls And Functions

    Before using the VPism User Controls and Functions Parts Function Display To show the target area in real-time Camera mount To hold/stabilize the camera Camera mount adapter To slide onto the camera mount Camera To illuminate and image the target area Main cable LED power cable and camera cable LED power cable connector...

  • Page 12: How To Setup

    Set the camera onto the camera mount when not used. CAUTION: Use the provided adapter. CAUTION: The camera may not function properly when dropped or applied with pressure. 11 | iiSM Inc.

  • Page 13: How To Start

    Operating the VPism How to Start Press the power button to turn on the VPism. Tap the button for 1 or 2 seconds. Do not press the button too hard or for a long time. The Program will be operated automatically in about 20 seconds. WARNING: Do not touch or operate the VPism until the program has fully loaded.
  • Page 14 The camera can be operated more freely by detaching from the camera mount. ° The camera mount adapter should be at the left side of the operator to not turn the display 180 CAUTION: Excessive tilting and rotation of the camera can damage the camera mount adapter. 13 | iiSM Inc.
  • Page 15 Operating the VPism Setting the Position of the Camera 20 cm Hold the camera around 20 cm above the surface of the target area. Do not move for at least 3 seconds to optimize the auto-brightness function. The operator may not be able to observe the blood vessels if working distance is not maintained.

  • Page 16: Running The Program

    Pause button saving button ( → Touching the Image saving button will save the image Upper bar Touching the Upper bar will darken the display (Standby mode) Image information Displays the file name and the date 15 | iiSM Inc.
  • Page 17 Operating the VPism Viewing 1. Bring the camera into the focus while keeping the proper distance between the Camera part and the observation part. (about 20 cm) the Target Area 2. Select the region of interest and thickness of the blood vessel to be observed. in Real-time 3.

  • Page 18: Zooming In And Out

    Operating the VPism Zooming In 1. Press button to zoom in and out the image. (1X→2X→4X→1X) and Out 17 | iiSM Inc.
  • Page 19 Operating the VPism Light Assistance 1. Press button. Then, the light assistance mode is turned on. 2. When the light assistance mode is turned on, the icon is changed → Mode 3. You can see the blood vessels which is hard to find more clearly by using the specialized light source.
  • Page 20 3. Shows the file name and the date. 4. Touching button will continue the real-time video. Pause button is especially useful when the patient is continuously moving. 19 | iiSM Inc.
  • Page 21 Operating the VPism Loading the Image 1. Touching the Image load button will open a window with images arranged according to date. 2. To selects the date of the images you wish to load. 3. To enter the ID number of the image you wish to load in the folder. 4.
  • Page 22 Operating the VPism Closing 1. Touch the Exit program button. 2. Exit program confirmation window will be shown. 3. Touch the check button to exit the program. 4. Disconnect the power cord. 21 | iiSM Inc.

  • Page 23: Additional Information

    Additional information Functions A. Using the camera stand 1. Place the camera stand on a flat surface. 2. Detach the camera from the camera mount and slide it onto the camera stand. | 22 VPism User’ s Manual...
  • Page 24 1. Mount the clamp of the gooseneck on a desk or the armrest. 2. Position or shape the gooseneck to be 20 cm above the observation area. 3. Mount the camera on the head of the gooseneck. 20 cm 23 | iiSM Inc.
  • Page 25 Additional information Functions C. Using the VESA mount 1. The VPism supports the VESA mount. (75 mm x 75 mm) 2. The VESA mount allows the display to be freely tilted and operated in different ways using the appropriate accessories. | 24 VPism User’...
  • Page 26 1. If you do not touch the display for 5 minutes, the display brightness automatically dims and enters Standby mode. You can enter Standby mode by touching Upper bar at the top of the screen. 2. If Standby mode is running, you can exit standby mode by touching the screen. 25 | iiSM Inc.
  • Page 27 Additional information Functions E. Using the accessories Use Specialized light source(SLism-F/N) when the user want to observe ※ the image of blood vessels more clear. Regarding the detailed usage, please refer to the manual of each accessory. 1. Specialized light source(SLism-F) 1) Switch ON the SLism-F.

  • Page 28: File Management

    1) The hygienic pad should be placed on the armrest or a flat surface. 2) Place the target area of observation on the hygienic pad. CAUTION: Do not roll or twist the pad. If the pad get dirty or wet, replace it into new one before use. 27 | iiSM Inc.
  • Page 29 When the Micro SD card is not found when saving CAUTION: Please format or change the Micro SD card if any of the above messages is shown. Please contact iiSM or your local distributor when changing the Micro SD card. (Out of warranty repair) | 28 VPism User’...

  • Page 30: Specifications

    Enclosures IPX0 VPism-C has been tested and complies with General Safety Requirements for Safety per IEC 60601-1 and IEC 62471. Validity period 1 year (from the date of purchase) Subject to technical modification without prior notice. 29 | iiSM Inc.
  • Page 31 Additional information Specifications B. Accessories Image Item Specifications Device name Specialized light source Model name SLism-F Size 131(W)*121(D)*67(H) mm Weight About 200 g (with batteries) Power 3 V, AA Battery (2 ea) Protection against Internally powered equipment electric shock Applied parts Type B Temperature : 10~40 ℃...
  • Page 32 Weight About 3.2 g Pad material Cotton, Polyurethane Temperature : 10~40 ℃ Using condition Humidity : 20~85 % Pressure : 700~1,060 hpa Temperature : 0~40 ℃ Storage condition Humidity : 20~85 % Pressure : 700~1,060 hpa 31 | iiSM Inc.
  • Page 33 After using the VPism Maintaining A. Maintenance after usage 1. Wipe the VPism with a soft cloth after use. (To clean any stains, soak the soft cloth with water or alcohol before wiping) 2. Connect the VPism to the power cable to fully charge. 3.

  • Page 34: Troubleshooting

    Battery may not be sufficiently charged. Connect the VPism to an electrical outlet with the provided power cable. If the VPism still does power ON, contact your local distributor or iiSM for technical support. ~ The VPism can’ t be charged Check that the adapter is connected to the main power jack.
  • Page 35 Repair If the VPism shows any sign of malfunction despite proper compliance to the User’ s Manual. iiSM will repair the VPism according the warranty policy. Please Regulations include the Warranty Sheet when the VPism will be returned to the local distributor.

  • Page 36: Warranty Information

    Address: 402, 7-16, Naseongnam-ro, Sejong-si, 30129, Republic of Korea C. Service description Service application and repair Selling of accessories Any form of service/repair can only be done by an authorized representative of iiSM Inc. WARNING: Do not attempt to service/repair on your own. 35 | iiSM Inc.
  • Page 37 After using the VPism Disposing The VPism is designed to be environment-friendly. [VPism disposal] Electronic devices containing this mark indicates that the device must be disposed separately from other electronic devices. Inappropriate waste handling of this device may cause potential hazards to the environment and human health.
  • Page 38 We provide Customized Improvements! MEMO...
  • Page 39 We provide Customized Improvements! MEMO...
