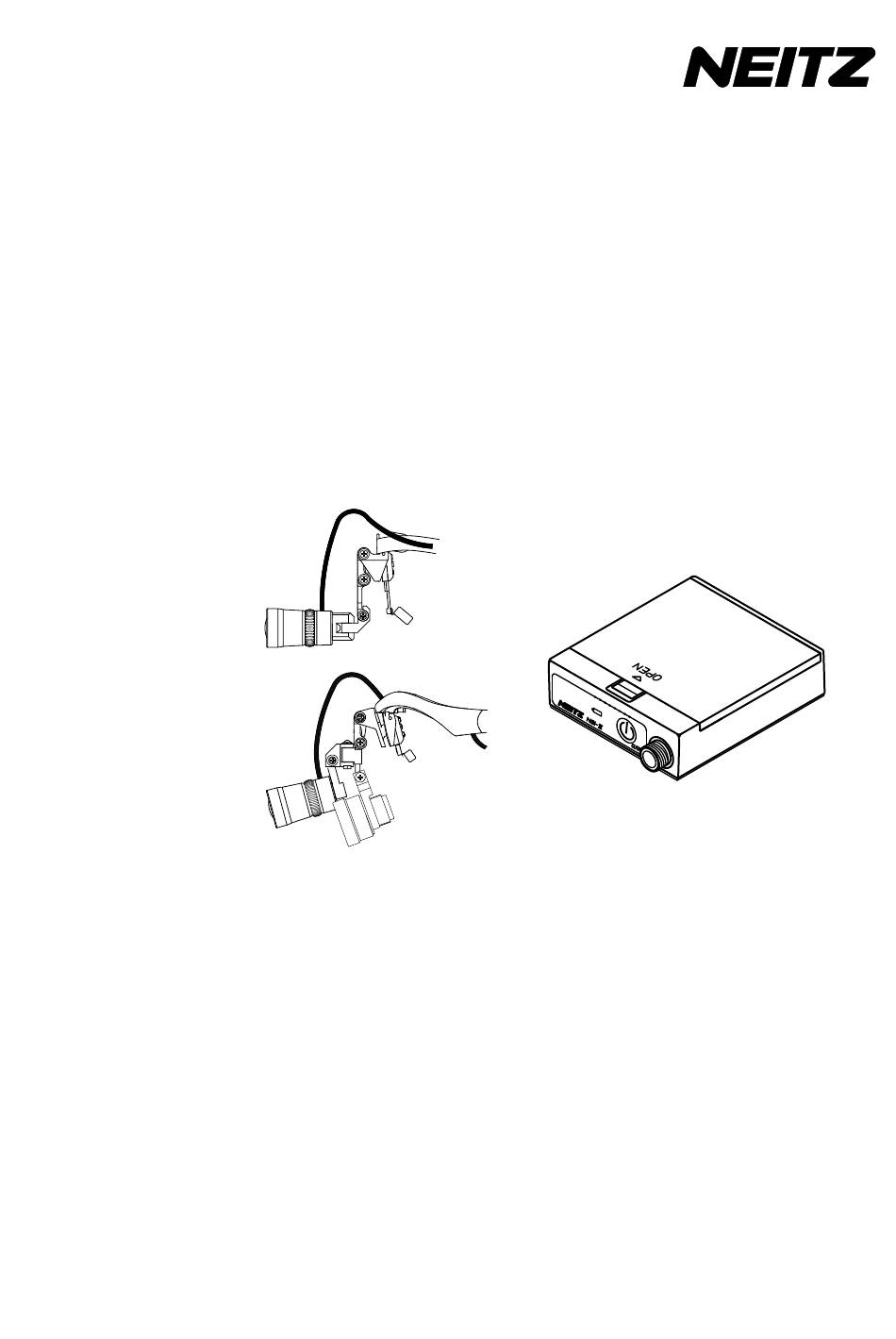

Spot Illuminator NSI-III
Instruction Manual
Thank you for purchasing the NEITZ Spot Illuminator NSI-III. This is a battery-powered lamp designed to
be worn on the operator's head to provide a light direct into the field of vision during surgical, diagnostic,
or therapeutic procedures. This device has been designed for use with the NEITZ Binocular Loupe
series and/or NEITZ Frame series. When necessary, please refer to the NEITZ Loupe instruction manual
as needed.
Please read this instruction manual carefully before use to avoid unexpected accidents, and store it in a
safe place for future reference.
TD11-12690001E-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spot Illuminator NSI-III and is the answer not in the manual?

Questions and answers

Summary of Contents for Neitz Spot Illuminator NSI-III

  • Page 1 Spot Illuminator NSI-III Instruction Manual Thank you for purchasing the NEITZ Spot Illuminator NSI-III. This is a battery-powered lamp designed to be worn on the operator's head to provide a light direct into the field of vision during surgical, diagnostic, or therapeutic procedures.

  • Page 2: Table Of Contents

    Table of Contents 1. Important Information ..........................1 1-1 Intended Use ..........................1 1-2 Symbols ............................1 1-3 Safety Information .......................... 2 1-3-1 Common Precautions to All Devices ..................2 1-3-2 Precautions for Battery Charger and Battery ................. 4 1-4 Labeling on Outer Package ......................5 2.
  • Page 3 8. Specifications ............................26 9. Contact Information ..........................27 Annex A ..............................28 Alarm System for Spot Illuminator NSI-III ..................... 28 ANNEX B ..............................29 EMC Guidance for Spot Illuminator NSI-III ..................29 (1) Guidance and Manufacturer’s Declaration - Electromagnetic Emissions ......... 29 (2) Guidance and Manufacturer’s Declaration - Electromagnetic Immunity ........

  • Page 4: Important Information

    1-1 Intended Use The Spot Illuminator NSI-III is a battery-powered device intended to be worn on the user's head to provide a light source to aid visualization during surgical, diagnostic, or therapeutic procedures. Do not use this device for any purpose other than its intended use.

  • Page 5: Safety Information

    This symbol shows the lower and upper relative humidity limits for storage and transport This symbol shows the lower and upper atmospheric pressure limits for storage and transport This symbol shows the device is fragile and must be handled with care. This symbol instructs to keep the device dry.
  • Page 6 Do not peel off or damage the outer battery casing. This may cause an explosion or a fire by the electrolyte contained inside the battery. Do not attempt to disassemble or modify the device. Electrical shock, a fire or serious injury may result. Do not wear the illuminator before mounting to the frame through a hinge.

  • Page 7: Precautions For Battery Charger And Battery

    1-3-2 Precautions for Battery Charger and Battery Do not allow liquid leaked from battery to come in contact with eyes. If this occurs, flush eyes with clean water and consult a physician immediately. If leaked liquid gets on the skin or clothing, wash off with clean water immediately.

  • Page 8: Labeling On Outer Package

    Unplug the power plug from outlet immediately when water or liquid entered, and stop using. Not doing so may result in electric shock, fire, or device failure. Do not touch the metal parts of the plug with any metal when plug is inserted into an electrical outlet.

  • Page 9: Checking Package Contents

    If any items are missing or damaged, do not use the device and immediately contact your local dealer. The Spot Illuminator NSI-III consists of the Spot Illuminator (including the Hinge, hereinafter, called as “Illuminator”) and Battery Pack. Before using this device for the first time, clean it according to the instructions given in this manual.

  • Page 10: Nomenclature And Function

    3. Nomenclature and Function 3-1 Spot Illuminator A SN Label: Serial Number of Illuminator B Switch Label: Indicates the Push-Push switch ① Light Plug: Connects to the Light jack on Battery pack ② Middle Switch: Performs the same function as the Power switch of Battery pack. Press to turn on and off (see 5-5-1 Turning Illuminator ON/OFF and 5-5-2 Setting Illumination Brightness) ③...

  • Page 11: Battery Pack

    3-2 Battery Pack Manufacturer’s Logo Model Logo Battery compartment “OPEN” mark Serial Number of Battery pack WEEE Directive mark Consult User’s Manual ① Light Jack: Connects to the Light plug of Illuminator. Indicated as “OUTPUT” (see 5-4 Connecting Illuminator to Battery Pack). ②...

  • Page 12: Battery Charger

    3-3 Battery Charger ① AA (+) Contact Surface: Contacts the + terminal of the battery. ② AA (-) Contact Surface: Contacts the - terminal of the battery. ③ Charge Indicator: Lightens when charging and turns off when charging is complete. Note: The number of Indicator lights varies with the model of the charger provided.

  • Page 13: Preparation And Inspection

    4. Preparation and Inspection This device has been designed for use with the NEITZ Binocular Loupe and NEITZ Frame. Combinations with various Loupes and various Frames are available. If necessary, refer to the instruction manual for the specific Loupe with Frame purchased.

  • Page 14: Preparation

    4-1 Preparation To prepare, start with NEITZ Binocular Loupe with Frame, dry lint-free cloth, lint-free soft cloth slightly moistened with diluted neutral detergent, and cotton swabs for cleaning. 4-2 Inspection of Illuminator Clean the surface of Illuminator in accordance with the Section "6.1 Cleaning" before inspection. If necessary, disinfect it as well.

  • Page 15: Operation

    5. Operation 5-1 Charging Batteries Note: 1) The accessory Battery Charger is able to quick charge the supplied rechargeable battery. To achieve 2x quick charge, put 2 rechargeable batteries into both sides of charger compartments as indicated on the front face of the charger. For a 3x quick charge, put 1 rechargeable battery into either side of charger compartments under “QUICK”.

  • Page 16: Mounting Illuminator On Frame

    5-2 Mounting Illuminator on Frame Since mounting methods vary by frame types, make sure of the type to be used and follow the procedure as described below as well as referring to the instruction manual of the Binocular Loupe used. 5-2-1 Mounting Illuminator on Titanium Frame (1) Remove the large screw and the washer that fix the Loupe to the Frame in the center (shown in Fig.
  • Page 17 (3) You may mount the illuminator above the Loupe if the Illuminator obstructs user’s view or if user adjusts the Pupillary Distance to a narrow distance. In this case, affix the hinge on the Illuminator to the both Frame and Loupe together as shown in Fig. 5-2-3. Long type Screw Washer Fig.

  • Page 18: Mounting Illuminator On Beta Frame

    5-2-2 Mounting Illuminator on BETA Frame (1) Loosen two screws mounted on the hinge of Illuminator, shown in Fig. 5-2-5, approximately 3mm. Do not remove them from the hinge. (2) Put the hinge of Illuminator onto the hinge of the Loupe and firmly tighten the loosened two screws.

  • Page 19: Mounting Illuminator On Neo Frame

    5-2-3 Mounting Illuminator on NEO Frame (1) Loosen two screws mounted on the hinge of Illuminator, shown in Fig. 5-2-7, approximately 3mm. Do not remove them from the hinge. (2) Put the hinge of Illuminator onto the hinge of the Loupe and firmly tighten the loosened two screws.
  • Page 20 (5) Pass the Cord through the Cord guide in two places and fix with the Wiring ring at the position shown in Fig. 5-2-10. Handle the Cord with care. Never pull it hard or bend it sharply. If necessary to fix the Cord more, add the Wiring ring or the Wring band(s). Wiring Ring Cord Guide Fig.

  • Page 21: Wearing Frame With Illuminator

    Wearing Frame with Illuminator 5-3-1 Positioning Titanium Frame with Illuminator (1) Position the Titanium Frame with Illuminator in place on your head after loosening the Strap if provided, then adjust for the optimum position of Illuminator. Illuminator Strap Stopper Fig. 5-3-1 (2) If the Strap is used, squeeze the stopper of Strap to position the main body section of the Frame is fitted to your head securely after attaching the Strap to the Strap holder of the Frame.

  • Page 22: Placing Beta Frame With Illuminator

    5-3-2 Placing BETA Frame with Illuminator (1) Place the main body of the Frame on your head after loosening the Strap, then adjust for optimum position of the Forehead pad and Nose pad. The Nose pad position is adjustable by sliding up and down and also forming the Nose pad to match your nose shape. Since 2 types of Nose pads are provided with the Fame, choose either one for your comfort and convenience, according to your preference and the procedure to be performed.

  • Page 23: Connecting Illuminator To Battery Pack

    5-4 Connecting Illuminator to Battery Pack The Battery Pack may conveniently carried by clipping onto your belt or by putting in your pocket. 5-4-1 Inserting Batteries in Battery Pack It is strongly recommended to use the enclosed batteries. When using other types of batteries such as alkaline dry cells, performance will deteriorate causing reduced illumination time.

  • Page 24: Setup Of Illuminator

    5-5 Setup of Illuminator 5-5-1 Turning Illuminator ON/OFF By using the Power Switch of Battery Pack; Depress the Power switch on Battery pack to turn the Illuminator on, and the Indicator for residual quantity light on Battery pack is lighted in green when the batteries are fully charged. Depress the Power switch again to turn the Illuminator off.

  • Page 25: Adjusting Illumination Field

    Approx. time until end of use Light Decreased Batteries Intensity Steady Illumination Illumination Illumination Empty at 40 cm Level distance (lux) Green and Orange Lamp Green Lamp Green Lamp lit Orange Lamp lit starts to blink fades 4 hours High 14,000 Orange Lamp lights with 30 min.

  • Page 26: Troubleshooting

    If the Illuminator or the Battery pack does not function properly, some problems may be solved by referring to the following chart. If the problem cannot be resolved, stop and contact to your local dealer or Neitz immediately. The following table shows the possible causes and troubleshooting solutions.

  • Page 27: Maintenance

    When movement of a hinge part moves too freely or any connection part is loosened, tighten up screws with Phillips (+) screwdriver(s) (which is supplied with the NEITZ Frame). Especially, tighten the two screws on the hinge that fixes the Illuminator to the Frame. Fasten screws slowly from both sides if they are idling, while observing the connection parts carefully.

  • Page 28: Disposal

    7-4 Disposal 7-4-1 Illuminator and Accessories (except Rechargeable Battery) Safely dispose of the Illuminator and accessories except rechargeable batteries in accordance with local regulations and/or environmental guidelines. Safely dispose of used cleaning materials in accordance with local regulations and/or environmental guidelines to avoid bodily injury or infection since the cleaning materials may contain infectious matter.

  • Page 29: Specifications

    8. Specifications Illuminator Light Source 3W White-colored LED Dimensions (Main body) φ 21.4 × 36.2 mm (φ 0.84 × 1.42 in) Length of Cord 1.5 m (59.06 in) Approx. 50 g (including Cord, not including Weight (including Cord but not hinge) Hinge) Illumination Field Diameter φ48 to φ100 mm variable...

  • Page 30: Contact Information

    9. Contact Information If you have any questions or need technical support s, contact your local dealer or NEITZ located at the following address. [LOCAL DEALER] Neitz Instruments Co. Ltd. 4F Ichibancho Court, 15-21, Ichibancho, Chiyoda-ku, Tokyo 102-0082, Japan Phone: +81-3-3237-0552; Fax: +81-3-3237-0554 e-mail: int@neitz.co.jp...

  • Page 31: Annex A

    Annex A Alarm System for Spot Illuminator NSI-III The NSI-III incorporates a Residual Quantity Light Alarm system as illustrated below to call attention to the user of the remaining battery capacity. Refer to the instructions below to take the appropriate measures.

  • Page 32: Annex B

    ANNEX B EMC Guidance for Spot Illuminator NSI-III The Spot Illuminator NSI-III is a medical device. Be sure to install and use it in accordance with the following EMC (Electromagnetic Compatibility) information. Be careful that a portable or mobile RF communications equipment may affect the NSI-III. Do not use it nearby the NSI-III.

  • Page 33: Guidance And Manufacturer's Declaration - Electromagnetic Immunity

    (2) Guidance and Manufacturer’s Declaration - Electromagnetic Immunity Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The NSI-III is intended for use in the electromagnetic environment specified below. The customer or user of the NSI-III should assure that it is used in such an environment. IEC 60601 Test Electromagnetic Environment - Immunity Test...
  • Page 34 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The NSI-III is intended for use in the electromagnetic environment specified below. The customer or user of the NSI-III should assure that it is used in such an environment. IEC 60601 Test Compliance Immunity Test Electromagnetic Environment - Guidance Level...

  • Page 35: Recommended Separation Distances Between Portable And Mobile Rf Communications Equipment And The Nsi-Iii

    (3) Recommended Separation Distances between Portable and Mobile RF Communications Equipment and the NSI-III Recommended Separation Distances between Portable and Mobile RF Communications Equipment and the NSI-III The NSI-III is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
  • Page 36 Manufactured by NEITZ INSTRUMENTS CO., LTD. 4F Ichibancho Court, 15-21, Ichibancho, Chiyoda-ku, Tokyo 102-0082, Japan Phone: +81-3-3237-0552; Fax: +81-3-3237-0554 e-mail: int@neitz.co.jp URL: http://neitz-ophthalmic.com/ Distributed by As part of our policy of continued product improvement we reserve the right to alter and/or amend specifications at any time without prior notice.
