Olympia Faucets, Inc. L-7220 Installation

OLYMPIA FAUCETS, INC.
Interchange City Distribution Center #20
1277 Heil Quaker Boulevard
La Vergne, TN 37086
(888) 772-7701
www.olympiafaucets.com
Model Number: L-7220, L-7221, L-7222, L-7290, L-7291
L-7292, L-7280, L-7282, L-7250, L-7251, L-7251G
Warnings and Notes:
Check with local plumbing code requirements before installation.
This product should be installed by a local listed plumber.
Do not use plumbers putty on threads.

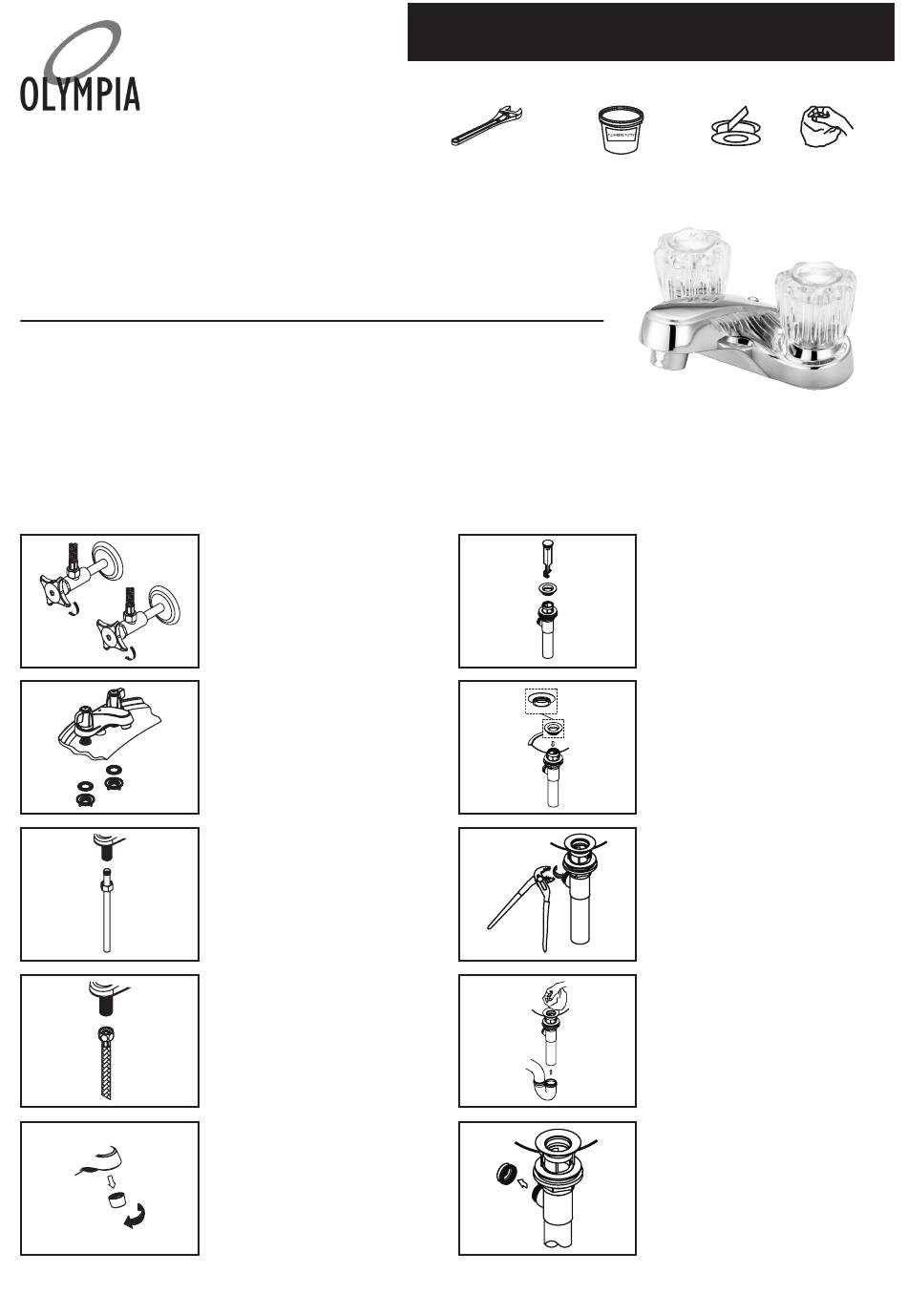

Installation Steps:

Two Handle Lavatory Faucet

(1) Shut off water supplies. Remove old faucet.
Clean mounting surface in preparation for new
faucet.
(2) Place the faucet in position on the sink.
Apply plumbers putty under the base gasket.
Install washer on shanks and tighten with
locknut.
(3a) when using ball-nose flexible supplies
to connect faucet to water supply valves, slip
coupling nut onto flexible supply. Ball-nose
coupling will go partially into shank. Tighten
coupling nut (DO NOT OVERTIGHTEN).
Install opposite end according to
manufacturer's instruction for both tubes.
(3b) when using stainless steel braided
faucet supply hose; this faucet requires one
end of the supply hose to have a ½" female
IPS connection. The other end of this supply
hose must match the thread on the water
supply valve under your sink. Once you've
identified the required size, carefully follow
the manufacturer's installation instructions for
each hose.
(4) Important: After installation is complete,
remove aerator. Turn water supplies on and
allow both hot and cold water to run at least
one minute each. While water is running,
check for leaks. Turn off water and replace
aerator.
Tools:
Adjustable Wrench Plumbers Putty Teflon Tape

Pop-up Drain Installation:

INSTALLATION
(1) Remove pop-up flange from body
(2) Place a ring of putty on the bottom of
flange.
(3) Insert pop-up flange through drain hole
and attach fIange to body. Ensure the pop-up
outlet faces towards the back of the slnk
Tíghten the locknut securely with a wrench Do
not overtighten.
(4) Remove the excess putty. Connect the
trap (check manufacturer's instructions for
ínstallation)
(5) Remove pivot rod nut from pop-up body,
ensure the washers is in place, insert pivot
rod, tighten pivot rod nut back to pop-up body.
Rags
