NoWire WebConnect™ Ethernet Modem Installation Notes

These instructions show you how to connect up the WebConnect Ethernet Modem to the NoWire equipment as

well as configure it for use in your system.

Note: NoWire COM2 can have the GSM Cell, Ethernet Modem, or Modbus Slave RTU modes operating, Not

multiple at the same time.

Safety and Static Protection:

During this procedure remove power from NoWire and the Ethernet modem. The NoWire circuit board has

statically sensitive components. Though the circuitry is robust avoid static electrical charges whenever possible.

When handling NoWire, whenever possible, hold the circuit board by the edges to avoid touching the

components. Perform this procedure in a low static environment...not on carpet, not wearing nylon clothing, etc.

Discharge any static charges on your body by touching the grounded center screw on a standard electrical

outlet. If possible wear an anti-static wrist strap.

NoWire firmware version must be version 2.02 or higher.

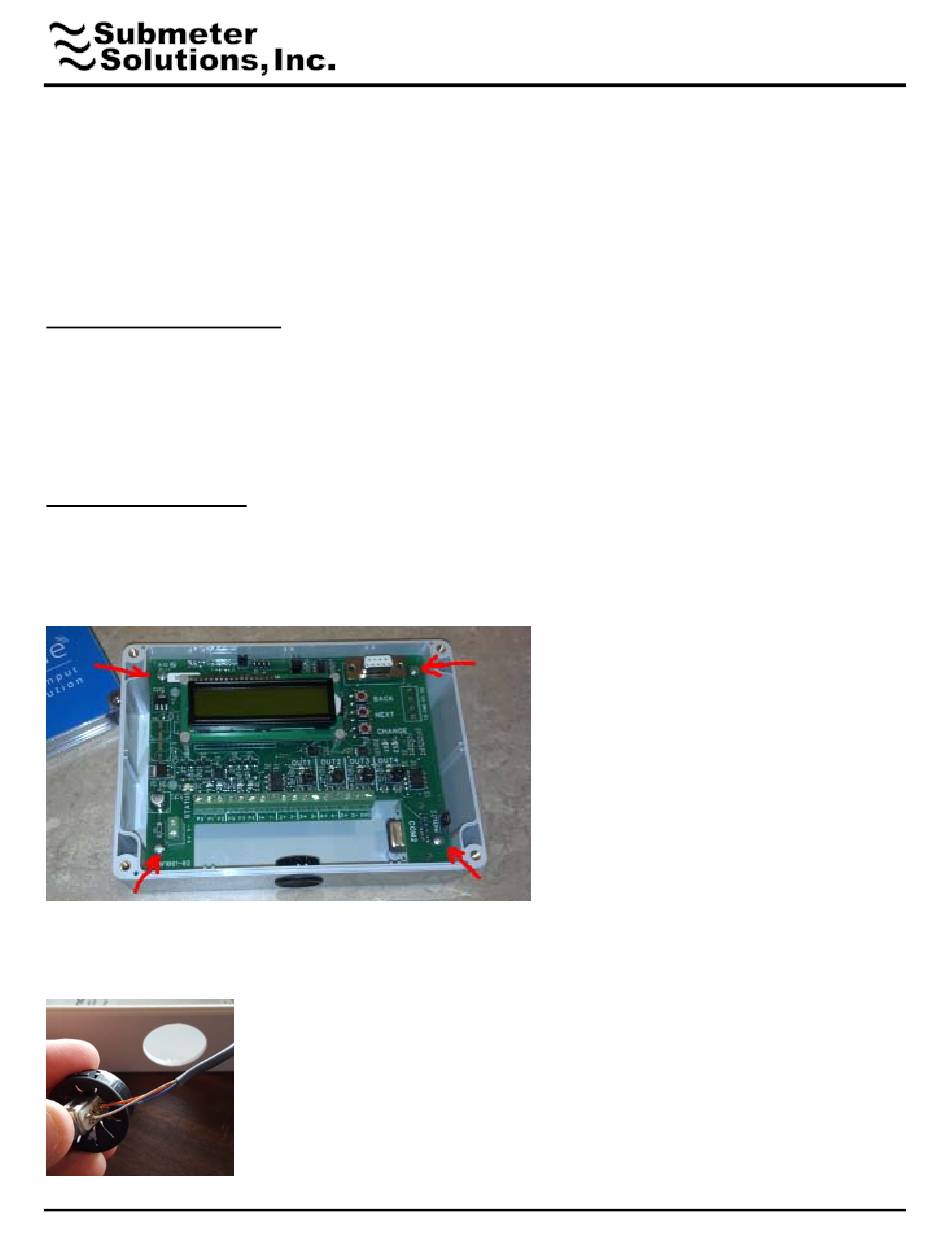

1.Remove the blue cover then remove the 4 mounting screws on the corners of the NoWire circuit board.

Remove the NoWire circuit board from the case.

2. Remove the access plug from the bottom of the NoWire case. Locate the 9 pin serial cable connected to the

WebConnect Ethernet modem. Carefully push the 9 pin connector through the plug being careful not pulling out

the wires from the connector. Go slowly and wiggle it attempting to minimize stress on the wires.

1 or 4

45 Logan Ave S, Renton, WA 98057 – phone: 425-228-6831, toll free: 888-64METER

Page

www.SubmeterSolutions.com - sales@SubmeterSolutions.com

Table of Contents

Do you have a question about the NoWire WebConnect and is the answer not in the manual?

Page 1 NoWire WebConnect™ Ethernet Modem Installation Notes These instructions show you how to connect up the WebConnect Ethernet Modem to the NoWire equipment as well as configure it for use in your system. Note: NoWire COM2 can have the GSM Cell, Ethernet Modem, or Modbus Slave RTU modes operating, Not multiple at the same time.
Page 2 3. Push the connector end of the cable through open hole at the bottom of NoWire and re-insert the access plug. Attach the connector cover to the conector. Pull the cable most of the way through the hole and loop it as shown.
Page 3 7. Securely mount the Ethernet modem. It may be most convenient to simply sticky back tape it to the side of the NoWire enclosure with the two provided sticky back tape squares or you may use the zip tie and zip tie holder which can be screwed or stuck to a wall.
Page 4 Configuration Instructions: Reference the NoWire User Manual for navigating through the setup menus. 1. Navigate to the System Items setup menu. NEXT CHANGE (if valid) BACK CHANGE to view User changeable passcode is entered here. Default is 00000. CHANGE increments each digit. NEXT moves to the next digit.
