Quick Start Guide
PUG2

Advertisement

loading

Related Manuals for ACR Electronics OLAS Extender

Summary of Contents for ACR Electronics OLAS Extender

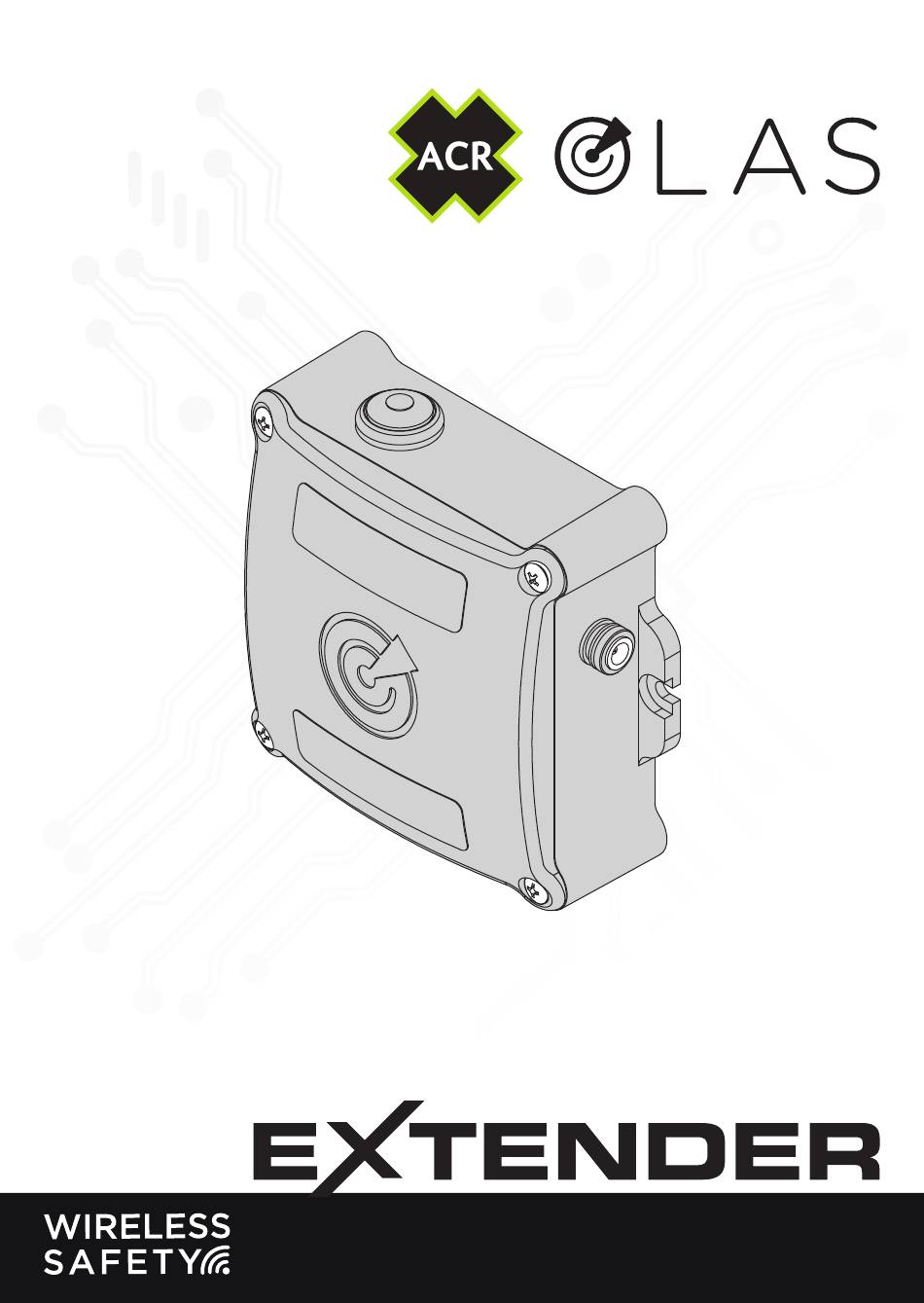

  • Page 1 Quick Start Guide PUG2...
  • Page 2 3.29” (83.5mm) 0.17” (4.2mm)
  • Page 3 Control Switch with red indication LED Extender Hub Power Connection...

  • Page 4: Extender Operation

    THE OLAS EXTENDER The Extender is used as a repeater enabling OLAS transmitters to repeat their signal back to the OLAS receivers, the Guardian/Core. The Extender should be used where false alerts occur due to signal being lost. The Extender can only be used alongside the Guardian or Core, it cannot operate without one of these devices.

  • Page 5: Extender Setup

    EXTENDER SETUP 1. With your Core/Guardian in their permanent location walk towards the area where the connection is normally broken between an OLAS transmitter and the Core/Guardian 2. The button will illuminate solid red when the connection between the Core/Guardian and the Extender is broken 3.

  • Page 6: Specification

    SPECIFICATION 5V / 13~17mA Power/Current Extends Core/Guardian range by 30ft Vessel length Up to 15 Connected Transmitters 115 grams Weight Size 92 x 90 x 38 mm Recharge time 3 hours Connected Runtime (with battery) 80 hours CERTIFICATIONS RoHS2 DIRECTIVE 2011/65/EU (RED) (2014/53/EU) EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 55032:2015 (CSPR 32:2015) and EN 55035: 2017 (CSPR 35: 2016)

  • Page 7: Terms And Conditions

    ACR Electronics, Inc. 5757 Ravenswood Rd. Fort Lauderdale, Florida 33312 - USA Check web for additional product details and downloads : www.acrartex.com TERMS & CONDITIONS The OLAS systems are products from Ultimate Sports Engineering Ltd. OLAS wireless systems utilise OLAS transmitters (OT) and OLAS receivers (OR).
  • Page 8 Credits Product: Ultimate Sports Engineering Ltd OLAS EXTENDER Declaration of Conformity: Hereby, Ultimate sports Engineering Ltd declares that this Bluetooth Signal Repeater is in compliance with Directive 2014/53/EU and Directive 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.acrartex.com/support/acr-support/acr-declaration-...
