luminii Optic Arts LineLED Installation Instructions

LineLED 24V - Installation Instructions
Please read all instructions prior to installation and keep for future reference!
1. Product should be installed by a qualified electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
3. Use only with Class 2 power unit. Utiliser seulement avec Classe 2 unite d'alimentation electrique.
4. For under-cabinet or shelf mount.
1

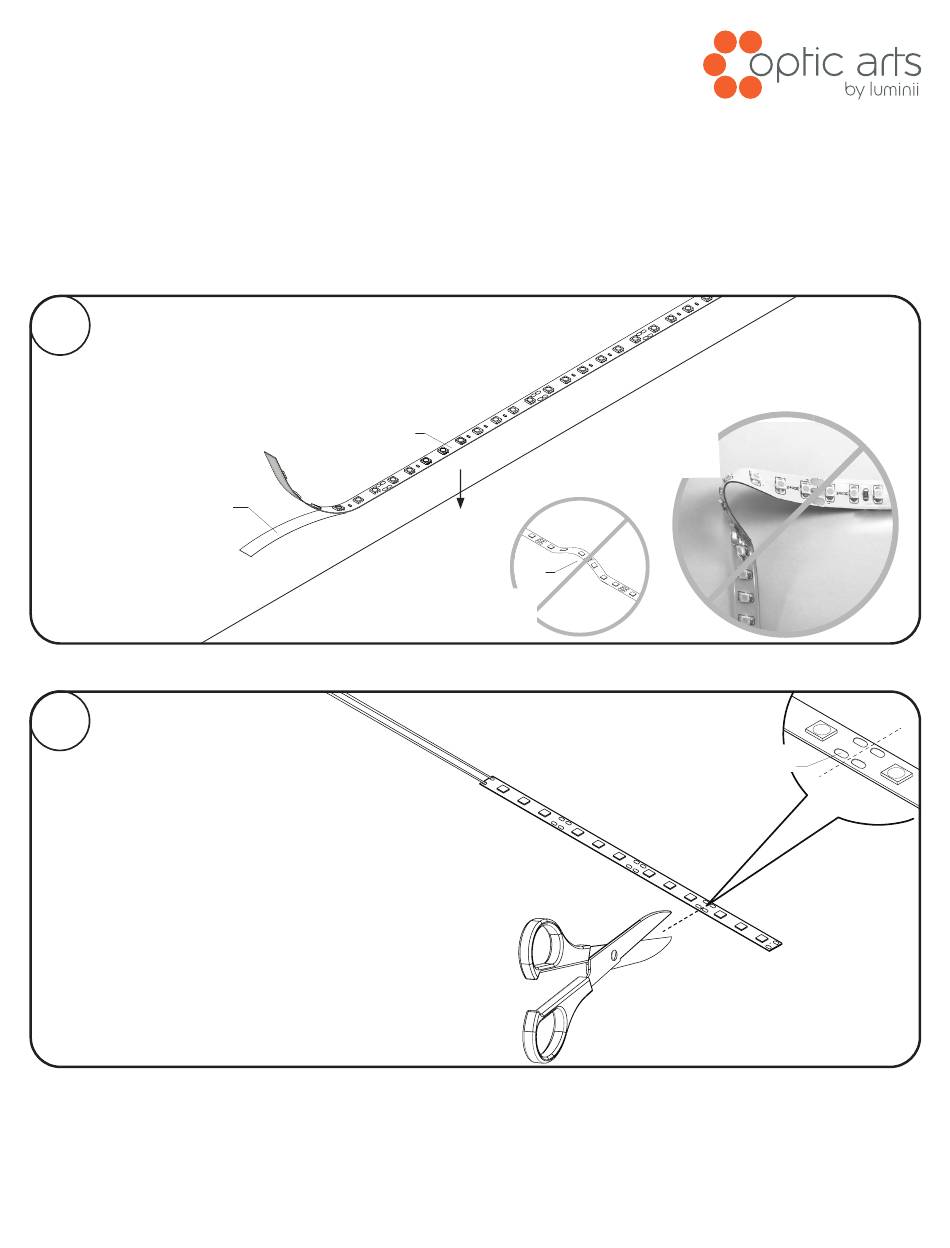

Clean the area thoroughly where the LineLED will
be installed.
Remove the paper backing from the LineLED and
firmly press down making sure
there are no air bubbles that can cause surface
irregularities. Do not remove the
adhesive, removing the adhesive may cause
arcing of the Line LED tape.
adhesive paper
backing
2
If length of LineLED needs to be adjusted on site, simply
cut the LED strip in between solder pads. Always cut
from end with no connector/wire leads.
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATIONS WITHOUT NOTICE
Attention: Always test LineLED operation before installing.
Connect LineLED to power supply to ensure it is working
properly and no damage has occured during shipping.
LineLED
NOTE - When removing backing
& laying LineLED to surface avoid
ripples on LineLED.
Page 1 of 2
NOTE - Avoid bending the
LineLED in flat bends which
may damage the LEDs
ripple
solder
pads
REV0.0 12052019
