Summary of Contents for AUDIOFOCUS EVO Series

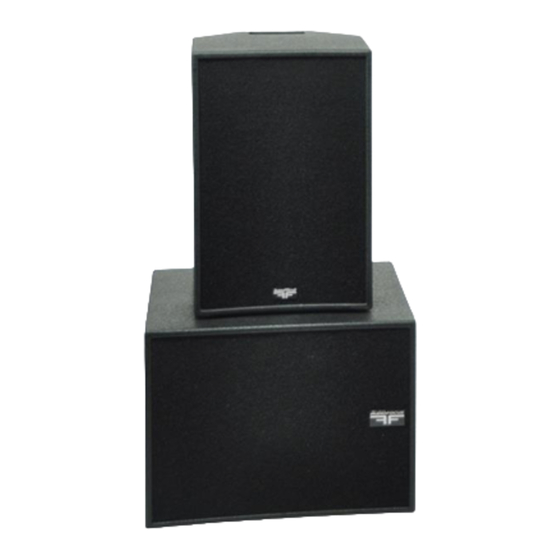

- Page 2 EVO(a) series user’s manual Introduction Thank you for purchasing AudioFocus©. That product is designed and made in Belgium with the highest quality control and reliability. We hope you’ll be fully satisfied by this device. EVO(a) serial has been designed for small to middle fixed or touring applications. Our main philosophy is that each model is available in active or passive version.
- Page 3 Full compatibility with Powerdrive accessories (see accessories section of this manual) M8 internal inserts for maximum security Mainly the result of the EVO(a) range is a good summary of the knowledge of AudioFocus’s team since 1998 taking care of market’s request, customer’s feedback and competitor’s products.
- Page 4 1. Active version (EVO8a, EVO10a, EVO12a, EVO15a, EVOSub15a, EVOSub18a) These models receive two ways digital high efficiency amplifiers. These ‘’green’’ energy amplifiers includes 4 presets for most of the applications we can meet on pro audio field. Here’s a description of the rear panel of Subs and Tops units: 1.
- Page 5 Preset explanations User has the choice between 4 built-in presets to make the system plug and play. The preset select switch (4) permits to the user to choose the best preset for his application. Top units (EVO8a, EVO10a, EVO12a, EVO15a) Full range : Flat response when the top unit is used alone on a stand.
-
Page 6: Examples Of Configurations
Examples of configurations In these examples you can consider all EVO tops and EVOsubs models. Always use HPF preset for Top units when coupled to a subwoofer. - Page 7 2. Passive version (EVO8, EVO10, EVO12, EVO15, EVOSub15, EVOSub18) 1 : Rear serigraphic. 2 : Neutrik Speakon input/output connectors When linking identical speakers together (in parallel), the resulting impedance is divided by the quantity of speakers. The user must ALWAYS take care about this resulting impedance, and the minimum impedance allowed by the amplifier...
- Page 8 In that case, one amplifier is used for the Top units and another one for the Sub units. Filtering between Top and Sub will be made by an ADSP26 AudioFocus© processor or any active X-over. The best way to achieve optimal audio result is to use ADSP26 AudioFocus©...
- Page 9 3. Active Sub with auxiliary power outputs (EVOSub15a-Flex, EVOSub18a-Flex) The best way to have a compact ‘’plug and play’’ system is EVOSubXXa -Flex. It has exactly the same features than the EVOSubXXa, except that the amplifier module is a double one. So, EVOSubXXa -Flex includes auxiliary power outputs for Top units.
- Page 10 Examples of configurations - Never use stereo outputs and bridge output at the same time. - Always respect minimum impedance (4ohms for stereo outputs, 8ohms for the bridge output). - Coupling with other EVOSubXXa (normal active version) is possible. In that case, user must configure EVOSubXXa in Extended preset.
- Page 11 Multi diffusion high quality configurations Auxiliary power outputs can go down to 4ohms (stereo outputs). So, EVOsub15a-Flex and EVOsub18a-Flex can be used as managing system for fixed installations.
- Page 12 Accessories (not included - sold separately) This section describes different solutions for fixing system to truss or walls. The user should ALWAYS use safety ropes to secure the system. That safety rope can be fixed on an eye bolt screwed in one of the M8 steel inserts. Each cabinet integrates M8 steel inserts to screw M8 eye bolt.
- Page 13 Protection covers and bags AudioFocus© proposes a full range of accessories to setup the audio systems in best conditions. We invite you to visit our website (www.audiofocus.eu) to discover the different items available. Flight cases Hanging systems, brackets, wall stands, coupling tubes...
- Page 14 CAUTIONS! Keep this device away from rain and moisture! Every person involved with the installation, operation and maintenance of this device has to: - Be qualified. - Follow the instructions of this manual. - Consider this manual to be part of the total product. - Keep this manual for the entire service life of the product.
- Page 15 This is why the entrepreneur has to set up warning signs and provide hearing protectors. The staff has to use these. AudioFocus© cannot be made liable for damages caused by incorrect installations and excessive noise levels.
- Page 16 Your new luck in Audio Business AudioFocus© contacts : Web site : www.audiofocus.eu General contact : sales@audiofocus.eu Phone : +32-83.21.80.54 Fax : +32-83.21.80.57...
