Allnet ALLDAQ ADQ-10-cPCI Manual

Cpci/pcie digital i/o board with 16 isolated digital inputs, 16 isolated digital outputs, 16 ttl digital i/os
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

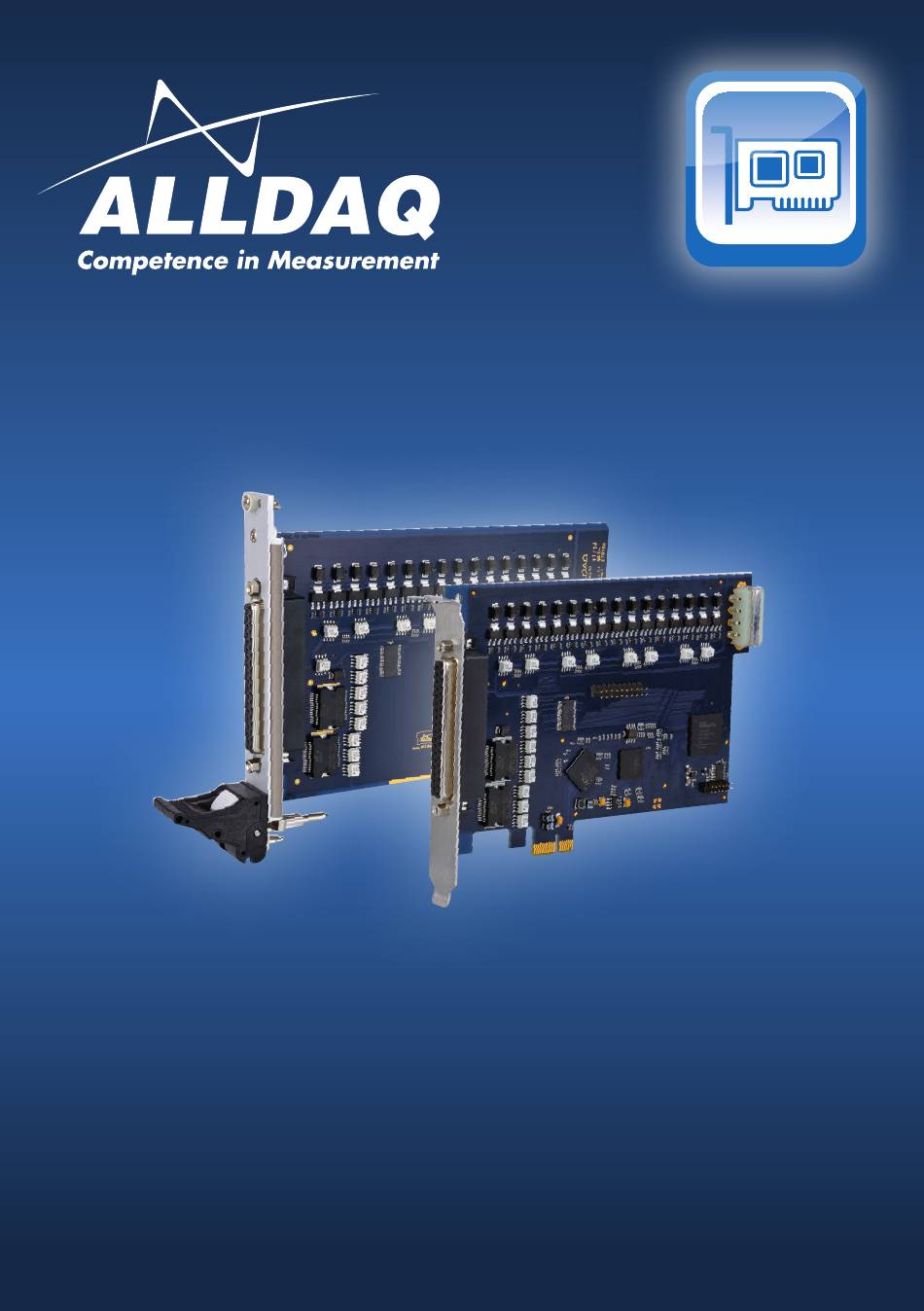

Manual
Rev. 1.0
EN
ADQ-10 (cPCI/PCIe)
Digital I/O board with 16 isolated digital inputs,
16 isolated digital outputs, 16 TTL digital I/Os

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALLDAQ ADQ-10-cPCI and is the answer not in the manual?

Questions and answers

Summary of Contents for Allnet ALLDAQ ADQ-10-cPCI

  • Page 1 Manual Rev. 1.0 ADQ-10 (cPCI/PCIe) Digital I/O board with 16 isolated digital inputs, 16 isolated digital outputs, 16 TTL digital I/Os...
  • Page 2 +49 (0)89 894 222 – 33 Internet: www.alldaq.com/support © Copyright 2014 ALLNET GmbH Computersysteme. All rights reserved. All information contained in this manual has been reviewed with great care. Nevertheless errors cannot be eliminated completely. Specifications and the content of this manual are subject to change without notice.

  • Page 3: Table Of Contents

    Manual ADQ-10 series Rev. 1.0 Table of Content 1. Introduction ��������������������������������������������������������� 7 1.1 Package Contents �������������������������������������������������������� 7 1.2 Security advice ���������������������������������������������������������� 7 1.3 Location of installation and mounting ��������������������������������������� 8 1.4 Short description �������������������������������������������������������� 8 1.5 System requirements ����������������������������������������������������� 9 1.5.1 Hardware �����������������������������������������������������������...
  • Page 4 Manual ADQ-10 series Rev. 1.0 4.2.1 37-pin D-Sub connector (ST1) ������������������������������������������ 22 4.2.2 25-pin D-Sub connector (ST2) ����������������������������������������� 23 4.3 Accessories ������������������������������������������������������������ 25 4.4 Manufacturer and support ����������������������������������������������� 25 4.5 Important notes �������������������������������������������������������� 26 4.5.1 Packaging ordinance ������������������������������������������������ 26 4.5.2 Recycling note and RoHS compliance ����������������������������������� 26 4.5.3 CE certification �����������������������������������������������������...

  • Page 5: Introduction

    Please read – before installing the device – this manual watchfully! Package Contents • ALLDAQ ADQ-10-cPCI or ADQ-10-PCIe • 37-pin D-Sub male connector • Adapter cable with mounting bracket from 25-pin D-Sub female connector to 20-pin IDC connector for cPCI (ADQ-AP-D25F-cPCI) resp.

  • Page 6: Location Of Installation And Mounting

    Manual ADQ-10 series Rev. 1.0 • Never connect devices with voltage-carrying parts, especially not with mains voltage. • The user must take appropriate precautions to avoid unforseeable misuse. For damages caused by improper use and subsequent damages any liability by ALLNET GmbH ®...

  • Page 7: System Requirements

    Manual ADQ-10 series Rev. 1.0 Introduction The opto-isolated digital inputs of the ADQ-10 series are assembled with transient voltage sup- pressor diodes to clamp high voltage transients to ground. System requirements 1.5.1 Hardware • PC system with Intel Pentium processor or a compatible processor ®...
  • Page 8 Initial operation Manual ADQ-10 series Rev. 1.0 Initial operation...

  • Page 9: Initial Operation

    Manual ADQ-10 series Rev. 1.0 Initial operation Initial operation Installing the board Please read the manual of your computer prior installing the board regarding the installation of additional hardware components. Handling the board should be done with care to ensure that the device will not be damaged by electrostatic discharge (ESD), mechanical stress or current surges.

  • Page 10: Software Installation

    Initial operation Manual ADQ-10 series Rev. 1.0 • Push the plug-in board carefully and with only a little force into the appropriate slot. Check that the board is not cant and fully plugged in. • If the adapter cable with mounting bracket should be used for the TTL digital I/Os choose two side by side slots for installation.

  • Page 11: Functional Groups

    Manual ADQ-10 series Rev. 1.0 Functional groups Functional groups ADQ-10 Opto isolated up to 1kV DI_A7…0 8 bit digital input Port A Bit-pattern match GND_DI Bit-pattern change DI_B7…0 8 bit digital input Port B Bit-pattern match GND_DI Bit-pattern change VCC_EXT Temperature monitoring DO_C7…0 Control and...

  • Page 12: Isolated Digital Inputs

    Functional groups Manual ADQ-10 series Rev. 1.0 Isolated digital inputs The ADQ-10 series provides 2 opto-isolated digital input ports with 8 bits each. The isolation voltage between digital input section and digital output section as well as to PC ground is 1000 VAC .

  • Page 13: Bit-Pattern Change

    Manual ADQ-10 series Rev. 1.0 Functional groups 3.1.2.2.1 Bit change In the operation mode „bit change“ one or more input bits which should be monitored for toggling can be masked. For each rising and falling edge, a bit mask defines which bit and which edge should generate an interrupt.

  • Page 14: Isolated Digital Outputs

    Functional groups Manual ADQ-10 series Rev. 1.0 Example for bit-pattern compare: • With the parameter uiPortBitPatternValue of the structure SADQIRQEnable in function adqEnableIRQ() the reference bit-pattern is defined. • Enable the interrupt by passing the boolean value TRUE in parameter bPortBit­ PatternCompare of the structure SADQIRQEnable in function adqEnable­...

  • Page 15: Programming

    Manual ADQ-10 series Rev. 1.0 Functional groups Figure 6: Wiring of the isolated digital outputs 3.2.2 Programming 3.2.2.1 Simple output The output ports (DO_Cx, DO_Dx) can be programmed independently from each other. The port direction is fixed by the hardware. Follow the order of operation as described in the online help.

  • Page 16: Bi-Directional Digital I/Os

    Functional groups Manual ADQ-10 series Rev. 1.0 Bi-directional digital I/Os The ADQ-10 series provides two bi-directional 8 bit wide digital I/O ports (DIO_Ex and DIO_Fx). Both ports are available by the 25-pin D-Sub female connector ST2 on demand. Depending on the form factor you need an adapter cable with mounting bracket for cPCI resp.

  • Page 17: Appendix

    Manual ADQ-10 series Rev. 1.0 Appendix Appendix Specifications Opto-isolated digital inputs Conditions: V = 5 V ±10%, T = 25°C Element Condition Specification Channels 2 x 8 bit digital input ports Type opto-isolated digital inputs (uni-directional) Isolation voltage f = 60 Hz, t = 60 s max.
  • Page 18 Appendix Manual ADQ-10 series Rev. 1.0 Element Condition Specification (ON state resis- = 0,5 A; T = 25°C typ. 150 mΩ, max. 185 mΩ tance) = 0,5 A max. 280 mΩ (Supply current) inactive; VCC_EXT = max. 150 µA 24 VDC; T = 25°C CASE aktive (all channels);...
  • Page 19 Manual ADQ-10 series Rev. 1.0 Appendix Element Condition Specification = -24 mA min. 2,4 V = 24 mA max. 0,5 V ±24 mA General Element Condition Specification PC interface (depending cPCI models CompactPCI bus (32 bit, 33 MHz) Rev. 2.2 on model) PCIe models PCI-Express x1 Rev.

  • Page 20: Pinout

    Appendix Manual ADQ-10 series Rev. 1.0 Pinout 4.2.1 37-pin D-Sub connector (ST1) DI_A0 DI_A1 DI_A2 DI_A3 DI_A4 DI_A5 DI_A6 DI_A7 GND_DI DI_B0 DI_B1 DI_B2 DI_B3 DI_B4 DI_B5 DI_B6 DI_B7 DO_C0 DO_C1 DO_C2 DO_C3 DO_C4 DO_C5 DO_C6 DO_C7 DO_D0 DO_D1 DO_D2 DO_D3 DO_D4 DO_D5...

  • Page 21: 25-Pin D-Sub Connector (St2)

    Manual ADQ-10 series Rev. 1.0 Appendix 4.2.2 25-pin D-Sub connector (ST2) n.c. n.c. n.c. n.c. n.c. DIO_E1 DIO_E0 DIO_E3 DIO_E2 DIO_E5 DIO_E4 DIO_E7 DIO_E6 DIO_F1 DIO_F0 DIO_F3 DIO_F2 DIO_F5 DIO_F4 DIO_F7 DIO_F6 GND_PC GND_PC VCC_OUT VCC_OUT Figure 9: Pinout 25-pin D-Sub female connector (ST2) 20 or 26 pin IDC female connector Adapter cable with mounting Adapter cable with mounting...
  • Page 22 Appendix Manual ADQ-10 series Rev. 1.0 Connection of adapter cable with mounting bracket For using the TTL digital I/Os (port E and F) an adapter cable with mounting bracket from the IDC connector to the 25-pin D-Sub female connector is required (comes with the board). Note: Alternatively an adapter cable with 20-pin or 26-pin IDC female connector is included with your package.

  • Page 23: Accessories

    Adapter cable with PCIe mounting bracket from 25-pin D-Sub female connector to 20-pin IDC female connector Manufacturer and support ALLNET and ALLDAQ are registered trademarks of the ALLNET GmbH Computersysteme. ® ® ® For questions, problems and product informations please contact the manufacturer directly: ALLNET ®...

  • Page 24: Important Notes

    4.5.2 Recycling note and RoHS compliance Please note, that parts of products of ALLNET ® GmbH should be disposed in recycling centers resp. may not be disposed via the household waste (printed circuit boards, power adapters and so on).
  • Page 25 Manual ADQ-10 series Rev. 1.0 Appendix Index Accessories ....23 Pinout 25-pin D-Sub connector (ST2) ..21 37-pin D-Sub connector (ST1) ..20 Bit-pattern recognition Power supply .
  • Page 26 ALLNET GmbH Computersysteme ® Division ALLDAQ Maistrasse 2 D-82110 Germering E-Mail: support@alldaq.com Phone: +49 (0)89 894 222 488 Fax: +49 (0)89 894 222 – 33 Internet: www.alldaq.com...

This manual is also suitable for:

Alldaq adq-10 seriesAlldaq adq-10-pcie
