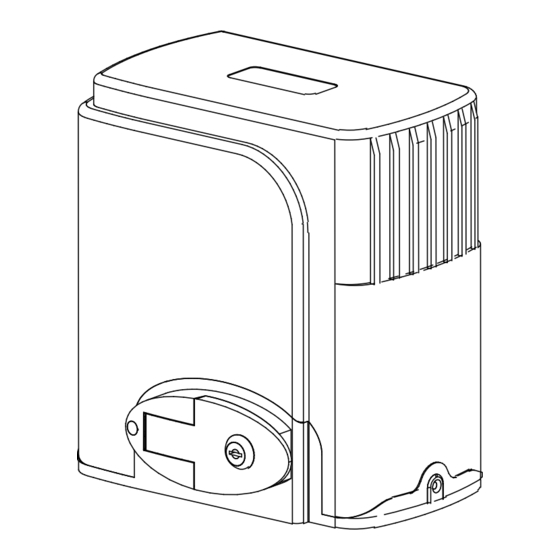

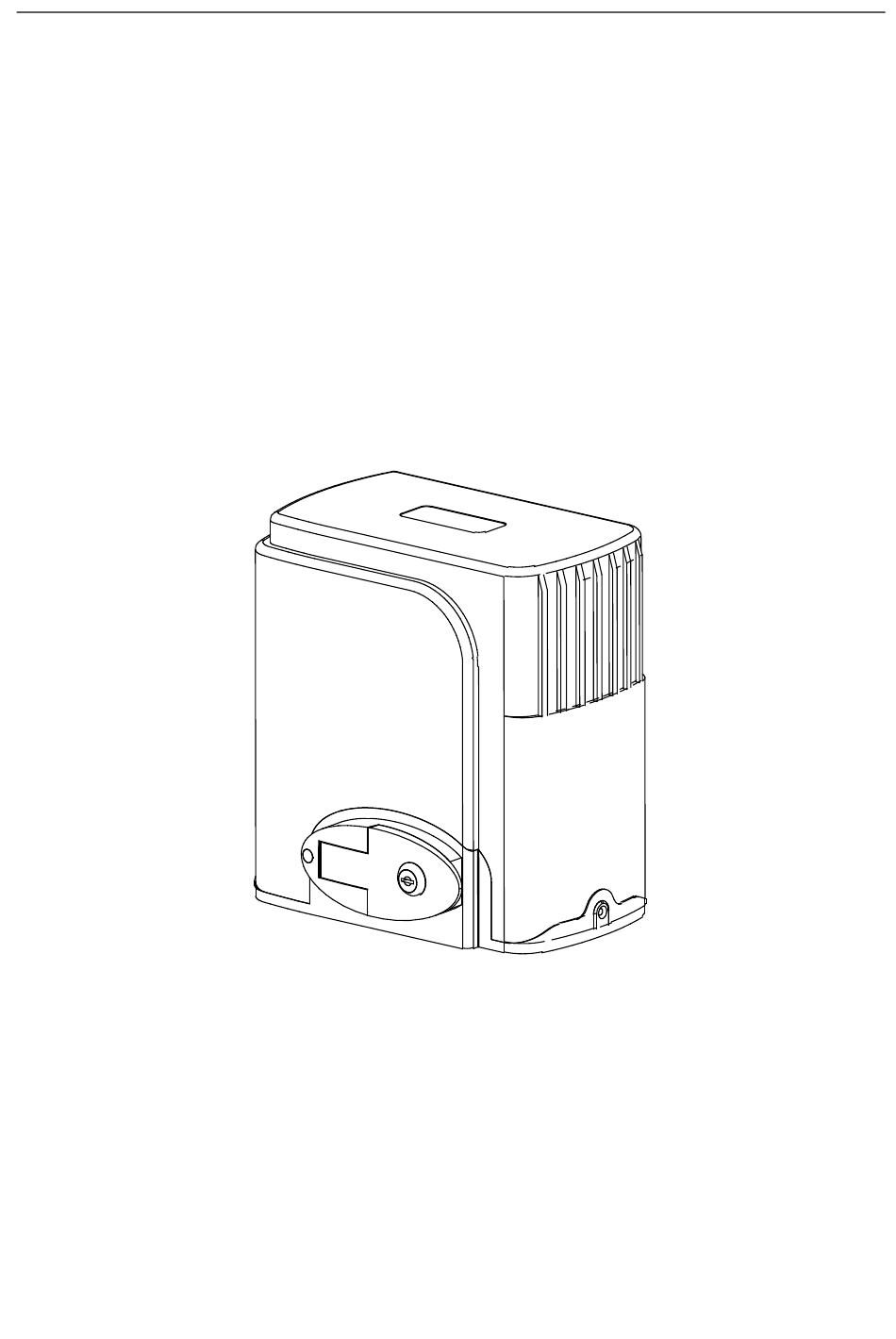

- Page 1 PY600AC Sliding Gate Opener User Manual...
- Page 2 Dear users, Thank you for choosing this product. Please read this manual carefully before installation and use. Please do not forget to include this manual if you send the product to a third party. 1. Safety Instruction Please make sure that the power voltage being used matches with the supply voltage of gate opener (AC110V or AC220V);...
- Page 3 2. Packing List (standard) Picture Name Quantity Main engine Manual release key Remote control Spring limit switch accessories box / Magnetic limit switch accessories box Spring limit switch block / Magnetic limit switch block Limit switch block mounting screw M6X18 Foundation bolt M8 Nut M8 Flat washer Ø8...
- Page 4 Steel gear rack 1m/pc Nylon gear rack 1m/pc Infrared sensor Wireless keypad Alarm lamp Mounting plate Protect cover for output gear Hexagon head bolt M8×60 3. Technical parameters PY600AC Model Power supply 220V/50Hz;110V/60Hz Motor power 280W Gate moving speed 11-13m/min...
- Page 5 9.4Kg 4. Installation PY600AC sliding gate opener is applicable to gate weight less than 600kg, and length of the sliding gate less than 12m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
- Page 6 4.2 Size of main engine and accessories 4.2.1 Size of main engine Figure 2 (1) Spring Limit Switch Figure 2 (2) Magnetic Limit Switch 4.2.2 Size of mounting plate...
- Page 7 204±0.3 Φ 8× 10 Figure 3 4.3 Installation procedures 4.3.1 Preparation work before installation Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener. Cable installation In order to guarantee the normal operation of the gate opener and protect the cables from damages, please bury the motor &...
- Page 8 properly; b) Please prepare the power line for connecting the mounting plate to the main engine (the number of power supply cable cores should not be less than 3 PCS, the sectional area of cable core should be over 1.5mm² and the length should be determined by users according to the situation on installation spot.) c) Please unlock the main engine before installation, the unlock method is: insert the key, open the manual release bar till it rotates by 90°...
-
Page 9: Limit Switch Adjustment
Gear Gear rack rack Output Output gear gear Figure 7 Warnings ·To ensure safety, install safety stop blocks on both ends of the rail to prevent the gate from running out of the rail. Before installing the main engine, make sure that the safety stop blocks are in place and whether it has the function of preventing the gate from running out of the rail or safety range. - Page 10 Gate Gate Spring Spring limit limit switch switch Spring Spring limit limit switch switch stop stop block block Gear Gear rack rack Output Output gear gear Figure 8 The installation of spring limit switch stop block is shown in Figure 9: M6×18 M6×18 M6×18...
- Page 11 ≤20mm Gate Gate Magnets Magnets Magnetic Magnetic limit limit switch switch stop stop block block Gear Gear rack rack Output Output gear gear Figure 10 The installation of magnetic limit switch stop block is shown in Figure 11: Right side mounting Left side mounting M6×18 M6×18...
- Page 12 Lamp Lamp Capacitor Earth Earth Power Power Capacitor Motor Motor D2 D1 D1 C C W U V PE PE N L Remote Remote control control learning learning button button DIP Switch Switch 10A 250V 250V 24VDC 24VDC 24VDC 24VDC Infrared Infrared sensor sensor...
- Page 13 2 OFF 3 ON: automatic close time is 30s, 2 OFF 3 OFF: automatic close time is 45s, 2 ON 3 ON: no automatic close function. Infrared connection Infrared photocell function: In the closing process, when infrared ray of the photocell is covered by people or objects during its detection range, the gate will open immediately for security protection.
- Page 14 Adjustment and operation Remote control operation Three button mode remote control: OPEN/CLOSE/STOP of main engine are controlled by three buttons separately on the remote control. Single button mode remote control: OPEN/CLOSE/STOP of main engine are controlled by one button circularly on the remote control. OPEN OPEN CLOSE...
- Page 15 4.3.5.2 Intelligent control board Hall Hall line line Open Open limit limit switch switch Close Close limit limit switch switch Loop Loop detetcor detetcor Infrared Infrared sensor sensor 12VDC 12VDC Pedestrian Pedestrian switch switch Capacitor Capacitor O/S/C O/S/C switch switch Stop Stop control control button...
- Page 16 light) 7. Power supply for fittings: +12VDC（Electric current ≤100mA）; 8. Photocell input (N.C.); short out the device with terminal 9(GND) if not used. 9. GND 10. Loop detector (sensor coil) connector (N.O.) In the closing process, once vehicles are detected by the loop detector, the gate will open immediately;...
- Page 17 Rotate to the minimum to cancel the slow stop function. VR4: For motor output force adjustment to ensure safety. Clockwise rotation to increase, counter-clockwise rotation to reduce. Note: The default setting is VR1, VR2, VR3, VR4 are the maximum value, and the user can adjust according to the actual requirement.
- Page 18 Adjustment and operation Remote control operation Three button mode remote control: OPEN/CLOSE/STOP of main engine are controlled by three buttons separately on the remote control. Single button mode remote control: OPEN/CLOSE/STOP of main engine are controlled by one button circularly on the remote control. OPEN OPEN CLOSE...
-
Page 19: Troubleshooting
Our company reverses the right to change the instruction without prior notice. 5.2 Troubleshooting Problems Possible Reasons Solutions 1.Switch on the power supply. 1.The power is off. The gate cannot open or 2.Check the fuse (code FU), 2.Fuse is burned. close normally, and LED change the fuse if burnt. - Page 20 Power supply line short circuit or Leakage switch tripped. Check wiring. motor line short circuit. Connect external receiver Remote control working Signal is blocked. antenna, 1.5 meters above distance is too short. ground. 1.Motor output force is not enough The gate moves to the (Intelligent type).
