Install so that the security device, MANI-SD-A, is at least 2" above tub rim.
Remote Control
Receiver Module
To 120V
15 AMP
Dedicated
GFI
Silver SLS+
Variable Speed Blower
Features:
(12) Maxi Air Jets with 24 openings
Elbows for air jets
Remote Control CG+/RTC-SENSOR-WP
12-15 year battery life
INSTALLATION INSTRUCTIONS

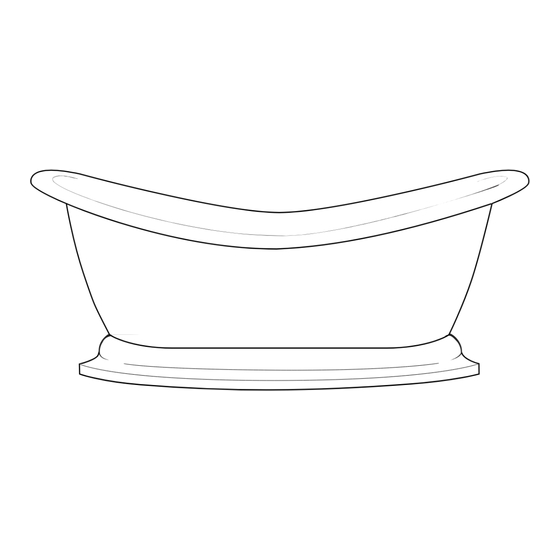

69" Aleisa Acrylic Double Slipper Air Bath Tub on Plinth
Security
Adapter
Device
MANI-SD-A
1-1/4"
Adapter
1 x 4
Mounting Board
Tees for air jets
Components List:
BM-TWP Ball Check Valve Jets
MANI-SD-A Security Device
MAN-A-4-AC Manifold
Silver SLS+ Variable Speed Blower
1-1/4"
2"
Manifold under tub
MAN-A-4-AC
MAN-CAP
Inside of Bath
Tub Rim
1-1/4"
Adapter
Check Valve
Advertisement
Summary of Contents for Signature Hardware Aleisa
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS 69" Aleisa Acrylic Double Slipper Air Bath Tub on Plinth Install so that the security device, MANI-SD-A, is at least 2” above tub rim. Components List: BM-TWP Ball Check Valve Jets MANI-SD-A Security Device MAN-A-4-AC Manifold Silver SLS+ Variable Speed Blower Security 1-1/4”... - Page 2 Aleisa Acrylic Double Slipper Air Bath Tub on Plinth Tub Dimensions: 69" L x 28" W x 27” H Water Capacity: 42 Gallons Tub Weight Uncrated: 200 lbs. Tub Weight Crated: 425 lbs. 69” 27” 5” 47” 43” 7” 16-3/4”...
