Page 1 Bkav MODEL: SH - CTxRZW...
Page 2 USER GUIDE TOUCH SWITCH SH - CTxRZW Bkav SmartHome technology company limited...
Page 3 Usage notice Thank you for choosing touch switch SH – CTxRZW of Bkav SmartHome. By selecting Bkav SmartHome’s products, you will get the best warranty service and installation support from our technicians. This document gives useful information during installation and usage time. You should read and keep the manual carefully in case of need.
Page 4 The touch switch SH - CTxRZW is the product of Bkav SmartHome and has been registered regarding design, utility solutions and quality certiﬁcation. All violations such as copies of design and product idea are subject to the current copyright law of the Socialist Republic of Vietnam.
Page 5: Table Of Contents
Table of contents Usage notice Table of contents Safety instruction Introduction General introduction Product package Speciﬁcations Wiring diagram Installation instruction Device usage Function of direct control Function of advanced features How to restore default mode Software installation Contact...
Page 6: Safety Instruction
Safety instruction Do not use voltage which is different from the one stated in the device’s speciﬁcations. Disconnect device’s power prior to any installation, disassembly or repair. Do not leave the device in high-temperature environment. Do not disassemble the device if not necessary. Do not clean the device with corrosive chemicals.
Page 7: Introduction

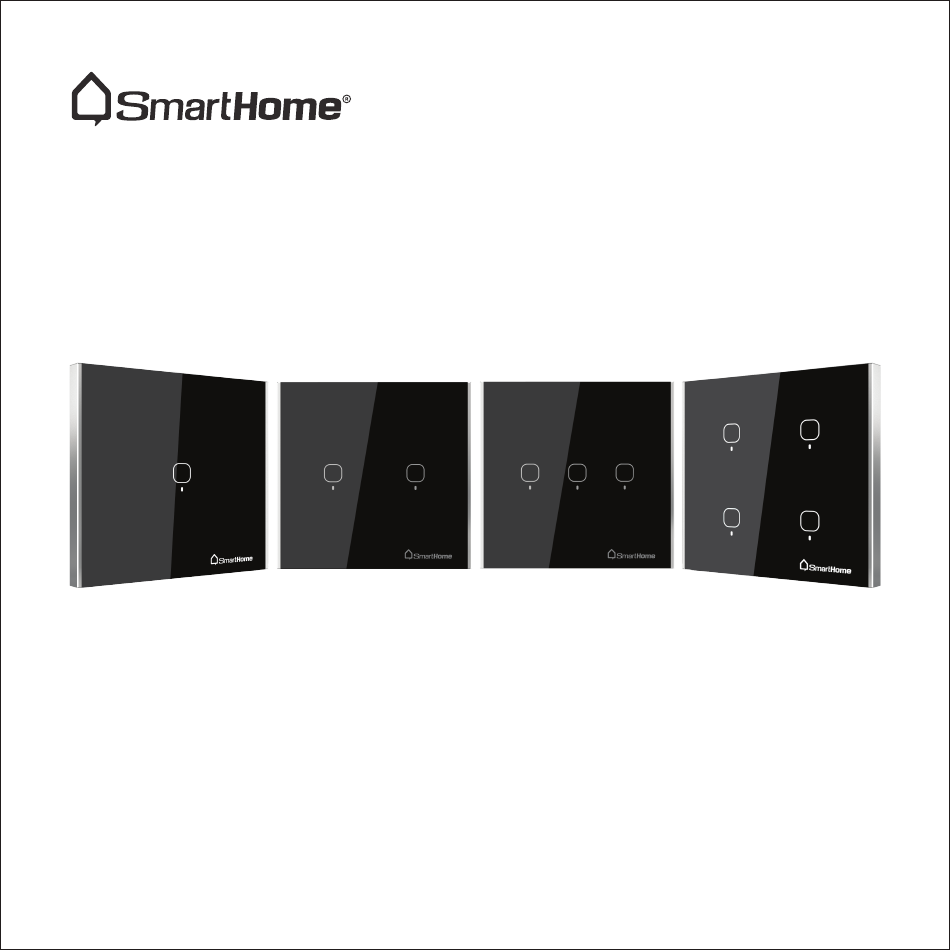

Introduction General introduction The touch switch SH - CTxRZW (*) is used to turn on/off from 1 to 4 on/off channels. With the design of the capacitive touch technology, anti-scratch Gorilla Glass, unibody aluminum, the device will make your house convenient and luxurious.
Page 8: Product Package
Product package Touch-screen Receptacle box control panel Connecting Power circuit box cable by Bkav User guide (book) Set of screws MODEL: SH - CTxRZW...
Page 9: Speciﬁcations
Speciﬁcations Operating voltage 100-240V 50/60Hz Wi-Fi band 2.4GHz - 802.11b/g/n ZigBee frequency 2.4GHz Operating temperature 60ºC max 5A max/1 channel Power rating Dimensions (L x W x H) 97 x 93 x 43 mm Weight 240 gram...
Page 10: Wiring Diagram
Wiring diagram Made by SmartHome Made in Vietnam by Bkav Smart touch switch Model: SH - CT4RZW-P Disconnect device’s power prior to installation. Voltage: 100-240V 50/60Hz Power rating: 5A max Operating temperature: 60ºC max 100-240 100-240V 50/60Hz * The quantity of channel depends on the product type of 1, 2, 3 or 4 buttons...
Page 11: Installation Instruction
Installation instruction Step 1: Connect the unconnected wires (2) from Receptacle box (1) to Power circuit box (3) as in Figure 1 based on the wiring diagram at page 8. Power circuit box Unconnected wire Receptacle box...
Page 12 Step 2: Insert Power circuit box (3) into Receptacle box (1) following the direction of the arrow, tighten 4 M4 screws (4) to ﬁx as shown in Figure 2. Notice: Wire connector is always installed upwards. Receptacle box Wire connector Power circuit box M4 screw...
Page 13 Step 3: Connect the connecting cable (5) to Power circuit box (3), then connect another cable’s head with the Touch-screen control panel (6). Push the Touch-screen control panel (6) towards the Power circuit box (3). The green part of the connecting cable’s head is always in an upward direction on connecting Notice Receptacle box...
Page 14: Device Usage
Device usage Touch control button (*) Status indicator light (*) The quantity of channel depends on the product type of 1, 2, 3 or 4 buttons (refer to page 05)
Page 15: Function Of Direct Control
Function of direct control SH - CTxRZW uses the capacitive touch technology to turn on/off electric devices just by gently tapping on the corresponding icon on the glass. The indicator below the icon is on, the corresponding status of the device is on. The indicator below the icon is off, the corresponding status of the device is off.
Page 16: How To Restore Default Mode
How to restore default mode To restore the default mode of the device, please follow ether of the following ways: Press and hold button 1 on the device for 15 seconds. Use the function of default mode restoration of the device on the control software.
Page 17: Software Installation
Software installation You can download Bkav SmartDevice software to control the device at: http://www.smarthome.bkav.com/SmartDevice or scan QR Code below to download the application.
Page 18: Contact
Contact If there is any problem related to the product, please contact Customer Contact Center: Customer Contact Center: (+1) 202 386 6779 Email: GlobalProject@bkav.com...
Page 19 T h e n e w h o m e s t a n d a r d !
