LA116--User Manual
COMPONETS

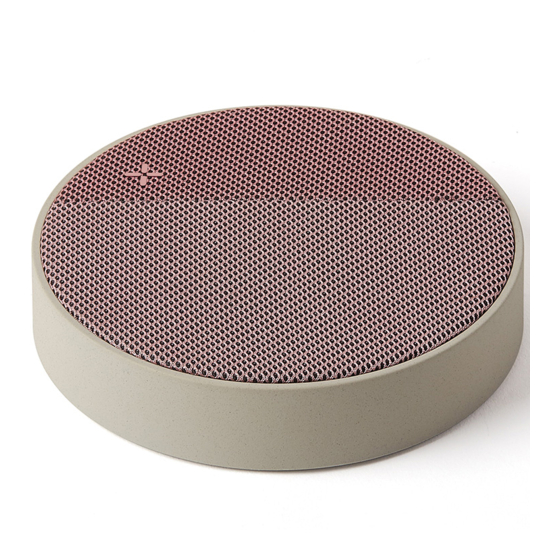

1. Portable speaker with wireless charger
2. USB cable with Type-C interface
3. User Manual
SPECIFICATIONS:
Case material: ABS+Fabic
Net Weight: 292g
Dimension: 120 Dia x 25H mm
Bluetooth part:
1. Bluetooth version: 4.2
2. Power Supplier: DC 5V
3. Rated Power: 3 W (1KHz THD10%)
4. Signal & noise ratio: •85dB
5. Frequency :160Hz-18KHz
6. Impedance: 4 OHM 5W
7. Speaker Unit:: 36MM
Wireless charge part:
1. Use: Mobile Phone
2. Wireless Power:10W
3. Transmit power:10w/7.5w/5w
4. Charging efficiency: MAX 80%
5. Input : DC 5V/9V/2A
6. Output : 5V/1A or 9V/1.1A
7. Transmission distance:3-6mm
8. Working Frequency:110-205KHz
9. Coil: Single Coil
10. Port: Type C
Advertisement
Table of Contents
Related Manuals for Lexon LA116
Summary of Contents for Lexon LA116
-
Page 1: Specifications
LA116--User Manual COMPONETS 1. Portable speaker with wireless charger 2. USB cable with Type-C interface 3. User Manual SPECIFICATIONS: Case material: ABS+Fabic Net Weight: 292g Dimension: 120 Dia x 25H mm Bluetooth part: 1. Bluetooth version: 4.2 2. Power Supplier: DC 5V 3. -
Page 2: Troubleshooting
WORKING CONDITION WITH LED INDICATOR: OPERATE MODE BLUETOOTH LIGHT Power supply Blue light on Power on (Press the button Blue light flashing quickly with du du du sound for 3 seconds) Power off (Press the button Blue light quickly flashing with du du du sound for 3 seconds) Bluetooth connected with Blue light flashing slowly... - Page 3 2. Type-C charging cable is not fully plugged into the charging port. 3. Charging cable is damaged. 4. Adaptor is damaged 5. Metal on the surface of charge area. — No LED indication: 1. LED indication failure. 2. Type-C charging cable is not fully plugged into the charging port.
- Page 4 The antenna(s) used for this transmitter must not be co-located of operating in conjunction with any other antenna or transmitter. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. Ln order to avoid the possibility of exceeding the Fcc radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8inches) during normal operation.
- Page 5 This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. The antenna should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC pour un environnement non contrôlé.
