Read all Instructions before beginning!!!!
Do not use or mix any other manufacturer's products with any Nitrous Express products.
Do not use or mix any Nitrous Express products with any other manufacturer's products.
THESE INSTRUCTIONS APPLY TO NITROUS EXPRESS PRODUCTS ONLY!
FOR SANCTIONED RACE USE ONLY - NOT FOR SALE OR USE IN CALIFORNIA
NX RPM ACTIVATED WINDOW SWICH
PN 18959 & PN18959M
IMPORTANT: Read the instructions before attempting the installation
Parts Included:
1 - RPM Window Switch
1 - Electrical Pack
1 - Pigtail and Relay
NOTE: RPM Modules must be purchased separately.
The RPM Activate Window Switch can be connected to stock ignition systems or MSD
Ignitions. When using a capacitive discharge ignition such as an MSD, do not connect the
Switch to the coil negative terminal. Damage to the Switch will occur.
The Window Switch is capable of carrying 1.5 amps. If the circuit you are activating requires
more current, an NX Relay, PN 15515 (Relay & Pigtail) or 15526 (Relay only) must be used.
The RPM Window Switch has a circuit that activates a device by providing a ground path
at a desired rpm(Figure 1). The ground will be removed at a different rpm to deactivate the
device. If no rpm module is installed the device will remain activated as long as the rpm is
above the activation amount.

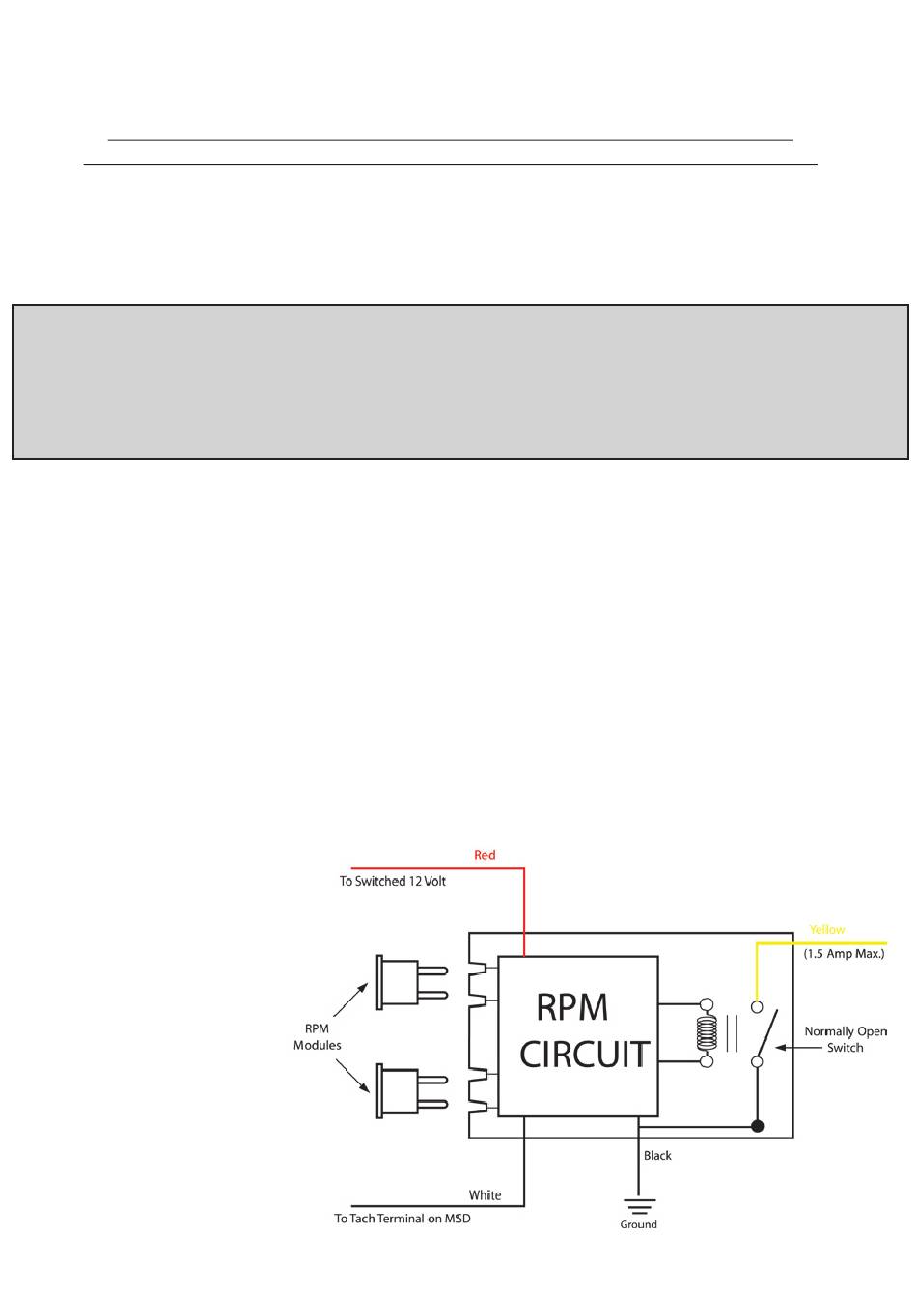

Figure 1 Operation of the
RPM Window Switch
Caution – EXTREME DANGER – Caution
1 - 3000 RPM Chip
1 - 6000 RPM Chip
Advertisement
Table of Contents
Summary of Contents for Nitrous Express 18959M
- Page 1 Read all Instructions before beginning!!!! Caution – EXTREME DANGER – Caution Do not use or mix any other manufacturer’s products with any Nitrous Express products. Do not use or mix any Nitrous Express products with any other manufacturer’s products. THESE INSTRUCTIONS APPLY TO NITROUS EXPRESS PRODUCTS ONLY!
- Page 2 CYLINDER PROGRAMMING The Window Switch is programmed for 8-cylinder applications, however it can be used with 4 or 6-cylinder applications. To program the Switch for different applications, the cylinder select loops must be modified as shown in Figure 2 Figure 2 Cylinder Select Loops MOUNTING The Switch may be mounted under the hood as long as it is away from direct engine heat sources.
- Page 3 Figure 3 Wiring to an Inductive Ignition System...
- Page 4 Figure 4 Wiring with an NX Relay...
