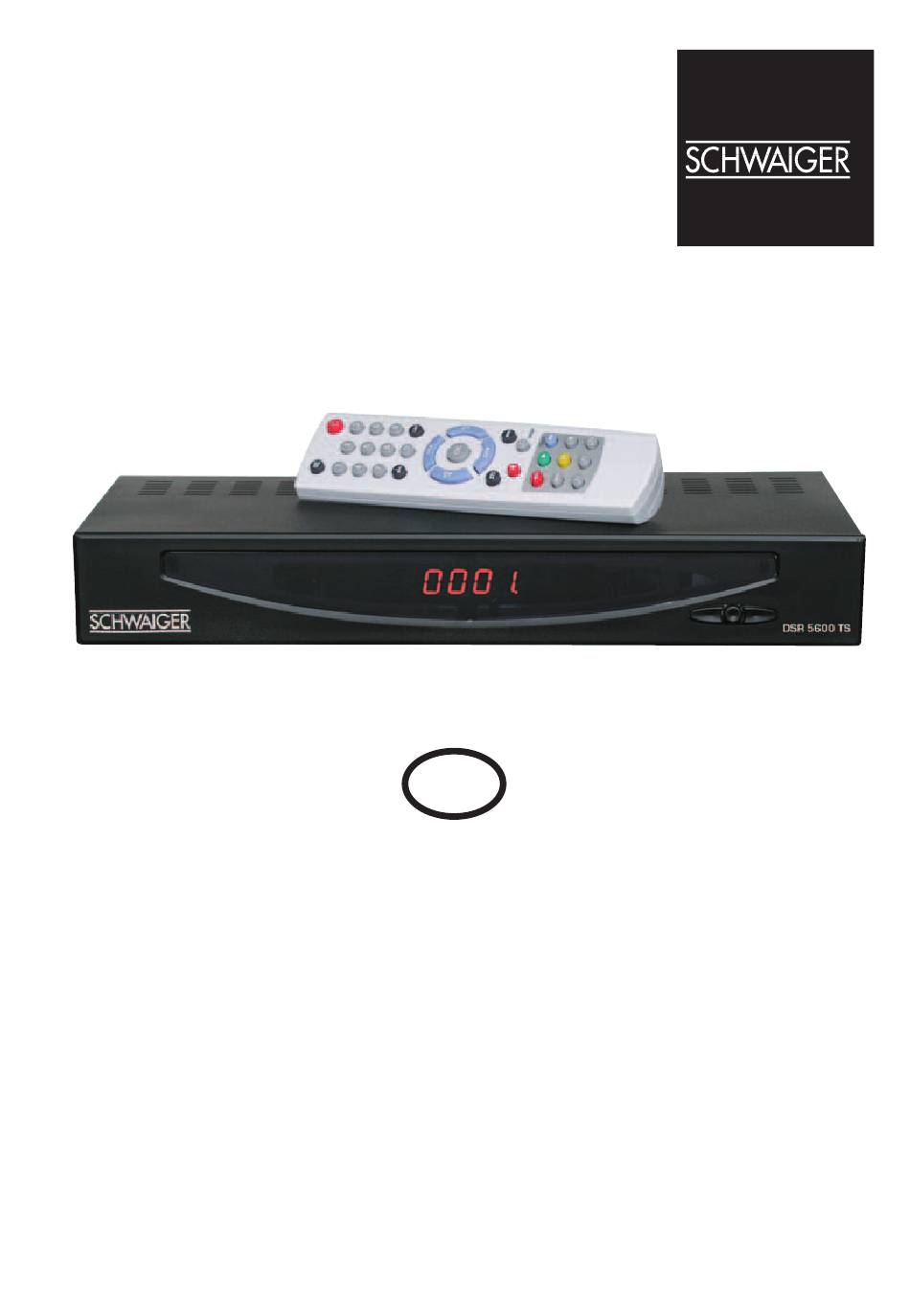

- Page 1 DSR 5600 TS User guide Christian Schwaiger GmbH Würzburger Straße 17 D-90579 Langenzenn/Germany www.schwaiger.de...
-
Page 2: Table Of Contents
User guide Contents Contents .............................2 Safety precautions and installation location ................4 Control elements, displays and connections ................6 Connecting the receiver......................7 Remote control ...........................8 First installation...........................9 Operating the receiver ......................11 Settings – device setup .......................14 Settings – OSD ........................14 Settings – sound ........................15 Settings –... - Page 3 Timer ............................27 Timer – Sleep timer ......................27 Timer – Timer recording ......................28 Information..........................29 Video text ..........................29 Managing the hard disk (option) ....................30 Managing the hard disk – hard disk information ...............30 Managing the hard disk – hard disk maintenance ..............30 Managing the hard disk –...
-
Page 4: Safety Precautions And Installation Location
General information Guarantee The guarantee period begins with the purchase of the product. Please confi rm this with your proof of purchase (receipt, invoice, delivery receipt etc.). Please keep these documents in a safe place. Our guarantee is based on our guarantee conditions in force at the time of purchase. In the case of a necessary repair, take or send in the unit to your specialist dealer. - Page 5 Mains connection WARNING: For units that are supplied with a mains adaptor, only use the original mains adaptor supplied with the unit! The mains adaptor / mains plug must only be connected to a 230 V~/50 Hz mains supply The mains adaptor / mains plug must be accessible at all times so that the unit can be unplugged from the mains outlet.
-
Page 6: Control Elements, Displays And Connections
Control elements, displays and connections Front of the device Display or LED: Display Receiver is on standby Programme display green Receiver is switched on rEC. Timer is activated FAIL Short circuit or overload at antenna socket ON/OFF button (standby) Buttons for changing programme: programmes down, programmes up Rear of the device... -
Page 7: Connecting The Receiver
Connecting the receiver The connections on the rear of the device are marked (see diagram on page 6). Connecting a terrestrial antenna Connect the antenna cable of the house or indoor antenna to the socket RF INPUT DIGITAL (4) of the receiver. -
Page 8: Remote Control
Remote control On/off button Mute Direct entry of channel numbers. In the menu: entry of programme parameters i/EPG Call up electronic programme guide (EPG). LIST Shows list of stations. VOL◀ ▶ Volume control. In the menu: scroll in lists or change entry values. CH ▲▼... -
Page 9: First Installation
Inserting the batteries Open the battery compartment cover on the underside of the remote control and insert the two 1.5 V batteries (AAA). Make sure they are the right way round NOTE: If some remote control commands are not performed, or not correctly, the batteries should be replaced. Batteries may not be exposed to excessive heat. - Page 10 Antenna current In the fi nal step of the installation assistant, use the buttons or CH to select whether the antenna current for an active DVB-T indoor antenna should be switched on or off. Complete installation with OK. You can make any corrections using the EXIT button CAUTION: The antenna current may be switched on only if the antenna really is an active indoor antenna with signal amplifi...
-
Page 11: Operating The Receiver
Operating the receiver Switching on and off You can switch on the receiver with the OK button, the programme change button, or one of the number buttons. The most recently active channel is shown (e.g. 0015) The digital receiver is switched to standby using the button. - Page 12 Press LIST button twice to display the following menu: Favourites list: Personal list of your favourite programmes. Radio list: List of saved radio programmes. TV list: List of saved TV programmes. Alphabet: List of saved TV or radio programmes in alphabetical order. Choose the list you want using CH or CH and press OK to activate.
- Page 13 Settings The menu Settings establishes the basic functions of the receiver. NOTE: The individual menu items are explained in a super at the bottom edge of the screen. The settings can be changed using the VOL ◀ ▶ button. When leaving the menu (EXIT button) you will be asked if you want to save the changes you have made (Yes) or keep the previous settings (No).
-
Page 14: Settings - Device Setup
Settings – device setup 1) Scart output To adapt to your television, use the VOL ◀ ▶ buttons to select the output signal (FBAS, RGB, YUV or Y/C) for the scart socket. 2) Time difference After switching on for the fi rst time, you should set the difference between local time and the received GMT. -
Page 15: Settings - Sound
Settings – sound 1) Start volume Use the VOL ◀ ▶ buttons to set the starting volume of the receiver. 2) Sound setting Use the VOL ◀ ▶ buttons to choose between Stereo, Mono left or Mono right 3) TV sound channel Use the VOL ◀... -
Page 16: Settings - Child Safety Lock
Settings – Child safety lock Your device is equipped with a child safety lock. This secures the receiver against unauthorised use. If the child safety lock is activated, the receiver can be switched on only after entering a 4-digit PIN. In the Main menu, move the cursor using the CH buttons onto the line Child safety lock and press the OK button. -
Page 17: Installation
Installation The menus “Antenna confi guration” and “Station search” will differ depending on the type of signal received, DVB-T (terrestrial) or SAT (satellite receiver system). In the main menu, select the line Installation using and confi rm with OK. The Installation menu will appear: Use the buttons CH to make your selection and confi... -
Page 18: Installation - Sat Antenna Confi Guration
Installation – SAT antenna configuration In the Installation menu, select the line Antenna confi guration using CH and confi rm with OK. 1) Antenna: In the line Antenna use the VOL ◀ or VOL ▶ buttons to select the satellite you are receiving with the connected satellite antenna, e.g. -
Page 19: Installation - Station Search Dvb-T
Installation – station search DVB-T You can choose between automatic (antenna) and manual (transponder) station search. The automatic station search checks the whole VHF and UHF range for programmes you can receive. Automatic station search In the Installation menu, move the cursor using the buttons CH onto the line Station search and press the OK button. - Page 20 Manual station search In manual station search, you can enter the channels to be searched directly. In the Installation menu, move the cursor using the buttons CH onto the line Station search and press the OK button. The following menu will appear: This is how to perform a manual station search: Select the line Antenna using CH and Terrestrial using the VOL ◀...
-
Page 21: Installation - Station Search Sat
Installation – station search SAT This digital receiver has been preprogrammed at the factory with most of the digital TV and RADIO programmes of the satellites Astra 19.2° east, Hot Bird 13° east, Türksat 1C 42° east, Sirius 2/3 5° east, Amos 1 4°... - Page 22 Station search Move the cursor using the CH buttons onto the line Antenna and set the satellite you want using the VOL ◀ ▶ buttons. Select the line Search mode using CH and use the VOL ◀ ▶ buttons to select the search mode you want.
-
Page 23: Installation - Software Download
Installation – software download This function allows you to update the receiver’s operating software and the Menu texts and programme list via the Astra 19.2° east satellite. The condition is however that your satellite system is set up to receive this satellite. Updating the software will not change your current list of broadcasters. CAUTION: A software update will delete current operating software from your receiver and install a new version of the software. - Page 24 2. Selecting the available data: According to availability, you will be able select between the following downloaded fi les (New software available) using CH Software: Operating software for the digital receiver List of station: Programme list for the digital receiver OSD texts: All menu texts of the digital receivers shown on the screen Information:...
-
Page 25: Installation - Factory Settings
Installation – Factory settings This function enables you to return the receiver to its factory settings. CAUTION: This will also delete the list of stations and the station search will be reactivated. In the Installation menu, move the cursor using the CH buttons onto the line Factory settings and press the OK button. -
Page 26: List Of Stations
To call up a module’s menu, open the Installation menu. The name of the module is shown, according to its type, e.g. “AlphaCrypt” or “CryptoWorks”. Use VOL or VOL to choose this line, and call it up with OK. This takes you into the menu that comes from the module. -
Page 27: List Of Stations - Managing Favourites
List of stations – Managing favourites You can save your favourite programmes in a Favourites list. In the menu List of stations, move the cursor using the buttons CH onto the line Manage favourites list and press the OK button. Two tables are now shown: •... -
Page 28: Timer - Timer Recording
Enter shutoff time: Select the line Switch off at and confi rm with OK. Use 0-9 to enter the time you want and confi rm with OK. Select Activate using CH Activate (On) or deactivate (Off) the shutoff timer with VOL ◀ ▶. Complete your settings by pressing EXIT and then OK. -
Page 29: Information
11. Use VOL ◀ ▶ to activate (On) or deactivate (Off) Timer recording. 12. Complete your settings by pressing EXIT and then OK. Use the EXIT button to hide the menus. The digital receiver will switch on at the set time. The display will then show “rEC”. -
Page 30: Managing The Hard Disk (Option)
Managing the hard disk (option) The hard disk functions are available only if the receiver is equipped with a hard disk. In the Main menu choose the line Manage hard disk with CH and confi rm with OK. This menu will appear: Managing the hard disk –... -
Page 31: Managing The Hard Disk - Switching Off The Hard Disk
Managing the hard disk – switching off the hard disk The receiver is able to switch off the built-in hard disk in normal television operation if no recording or playback is taking place. This helps to lower energy costs, reduces waste heat, and increases the lifespan of the hard disk. - Page 32 Sorting recordings In normal operation, press the green button to open up the list of recordings. Press the LIST button. The menu “Select list” will appear. Use the CH / CH buttons to select the sorting criteria and then press OK. The list of recordings will be sorted as follows: “Alphabet”...
-
Page 33: Operating The Hard Disk
Operating the hard disk Your digital receiver is equipped with an integrated hard disk drive, so that you no longer need an external storage medium (e.g. a video recorder) to make recordings. The recording capacity depends on the size of the hard disk and the data volume of the broadcast material. Recording Various modes of recording are available for you to record programmes onto the hard disk. -
Page 34: Choosing The Audio Channel For Recordings
Choosing the audio channel for recordings When playing back recordings, you can choose between the different audio channels. During playback, press the button F2 twice. Now a menu with the available audio channels will be shown. Use the CH buttons to select the audio channel you want to use and press the OK button. Pressing the EXIT button to hide the menu again. -
Page 35: Managing Recordings
Managing recordings In normal operation, press the green play button. The list of recordings will appear. The menus and their operation are similar to the description Managing the hard disk – list of recordings on page 31. Operating the hard disk – Setting and managing markers During the timeshift function or playback, you can mark places on the recording. -
Page 36: Epg - Electronic Programme Guide
EPG – Electronic programme guide DVB-compliant stations provide information such as the title, broadcast times and a description along with their programmes. Press the i/EPG button to call up the Preview menu. This shows you all the programmes that the particular station is broadcasting, with their times of broadcast. -
Page 37: Faults
Faults All electrical devices may have faults from time to time. This does not always mean the device itself is faulty. The cause is usually to be found in inadequate supply lines, socket connections or faults at the connection. So before you take your device for service, please check the following points: Problem Possible causes Remedy, tips... -
Page 38: Make A Contribution To Protecting The Environment
Make a contribution to protecting the environment Batteries do not belong with household rubbish. As a consumer, you are legally required to return used batteries. You can take your old batteries to public collection points in your municipality, or hand them in at any shop that sells batteries of that sort. -
Page 39: Technical Data
Technical data • Memory for 4000 programmes General • Video text and video text generating for playback on TV • Quick channel switching for zapping Fast OSD • No delay in building menus • Large typeface for better legibility • Easily understandable online help for all menus •... - Page 40 Christian Schwaiger GmbH Würzburger Straße 17 D-90579 Langenzenn/Germany Hotline +49 (0)9101-702 299 www.schwaiger.de...
