C2CN Care2
Network
Interface Card
Installation Instructions
B A L D W I N B O X
4)
5)
C2CN Network Card.cdr
Issue 4 ECR 3223 05/06/17
L L
B A L D W I N B O X

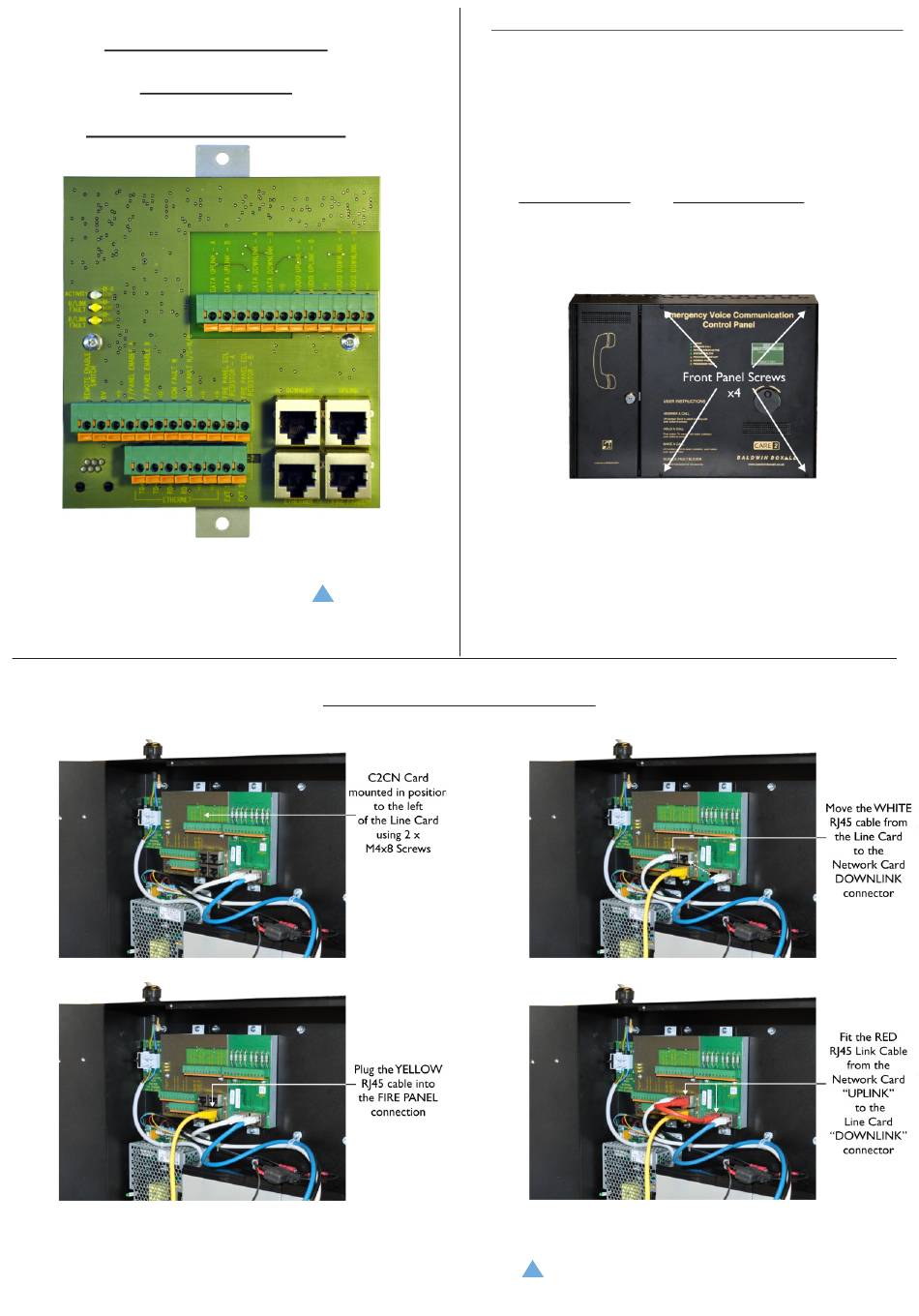

C2CN Care2 Network Interface Fitting Details
The kit comprises of the C2CN Network Interface
card and three (green, yellow & red) RJ45 leads.
For full installation & commissioning details
refer to the Care2 Installation Manual.
Before attempting to fit this component ensure
the Mains Power and Battery Backup have been
disconnected.
1) Remove the 4 screws securing the Front
Panel.
2) Open the Control Panel door to view the
internal components.
3) Disconnect the black 0V connection from the
battery to isolate the 24V supply.
6)
7)
L L
Wealden Industrial Estate
Jarvis Brook, Crowborough
East Sussex TN6 2JR
Tel 01892 664422
www.baldwinboxall.co.uk
