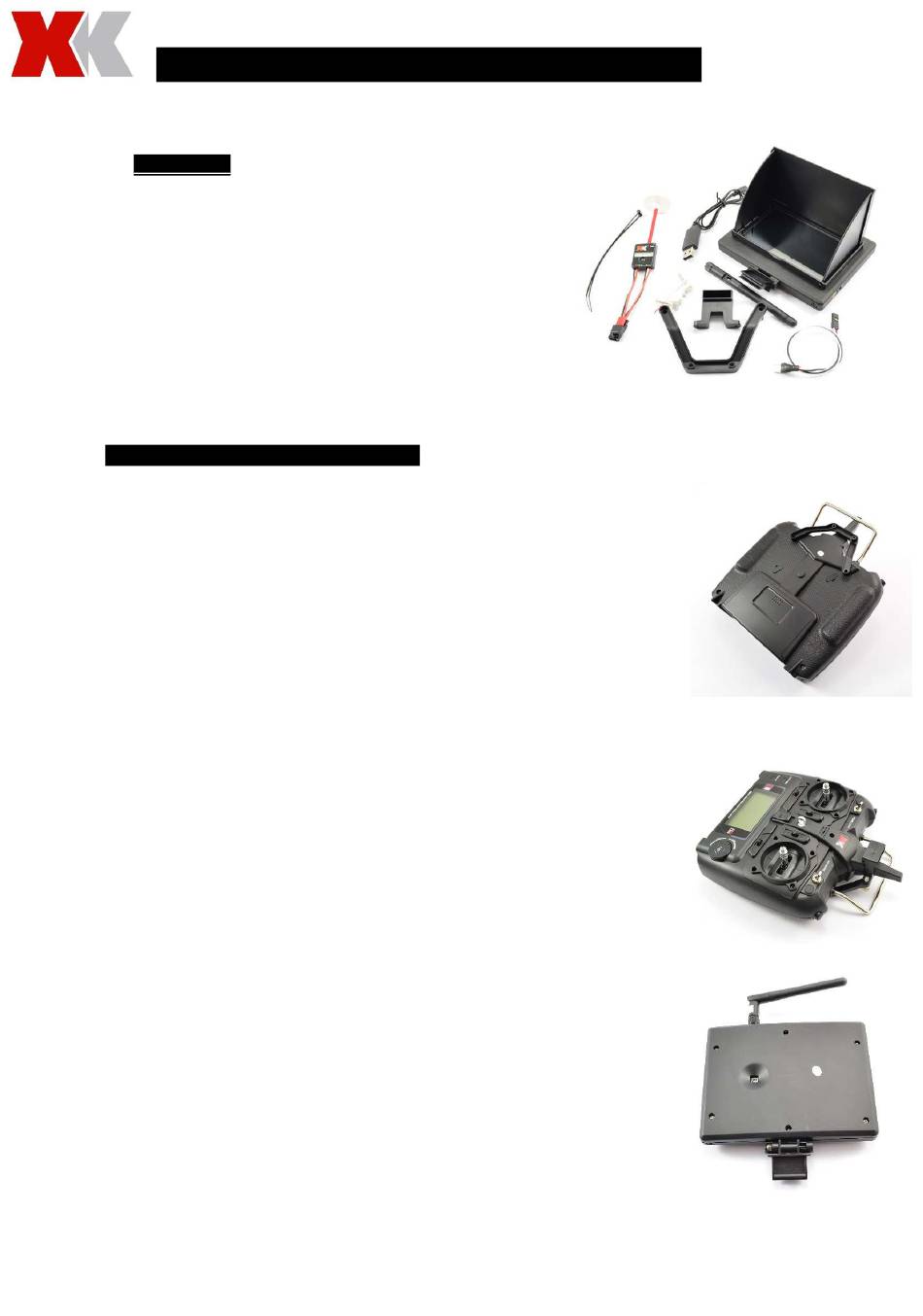

X380 5.8Ghz FPV Screen Installation (X380-55)
Kit Contains:-
Screen holder
Thumb screws and nuts
4.3" FPV screen
USB charger for screen
Antenna
Video transmitter module
Camera to video transmitter cable
Cable ties
Installing the Screen Holder and FPV Screen
1. Place the rear half of the screen holder onto the back of the transmitter,
the location lugs will line up with the holes on the transmitter.
2. Place the front half of the screen holder on the front of the transmitter
in-line with the rear holder and screw in place with the two thumb
screws and nuts provided.
3. Attach the antenna and screen bracket to the FPV Screen.
**Ensure that the 3 switches on the back are set to 1-2-3 in the
off position, (all 3 switches should be set nearest the antenna)**
Page 1 of 3
Advertisement
Table of Contents
Summary of Contents for XK X380-55
- Page 1 X380 5.8Ghz FPV Screen Installation (X380-55) Page 1 of 3 Kit Contains:- Screen holder Thumb screws and nuts 4.3” FPV screen USB charger for screen Antenna Video transmitter module Camera to video transmitter cable Cable ties Installing the Screen Holder and FPV Screen 1.
- Page 2 Page 2 of 3 4. Attach the FPV screen to the handset mounted bracket by connecting the two halves together. 5. Disconnect the power lead that is connected to the X380-C and connect this to Y-power lead. (The Y-power lead is supplied with the X380-C) 6.
- Page 3 Page 3 of 3 8. Connect the video lead to the X380-C camera USB connector, connect the other end to the black video transmitter connector. (The USB video lead is supplied with the FPV kit) 9. Turn on the X380-C, Camera and then FPV screen, the video will then be transmitting to the 4.3”...
