Kisag 7010 Instruction Manual

Service and warranty

Maintenance:

Peeling plate (product 7010 002) and peeling insert (product 7010 100) are wear parts and should regularly
be checked. The motor sealing should be replaced by our customer service team or an authorised service
provider when worn or after 5 years.

Replacing the peeling plate:

Remove the fastening screw (product 7010 025) and detach the peeling plate from the motor shaft. Mount
new peeling plate and tighten fastening screw.

Replacing the peeling insert:

Remove the peeling plate as described above.
Remove the 4 piece screws (screw 09). Now the peeling insert (product 7010 100) can be removed from the
housing with the 2 piece insert holder. Clean the inside of the housing thoroughly and mount new peeling
insert and peeling plate in the reverse order.

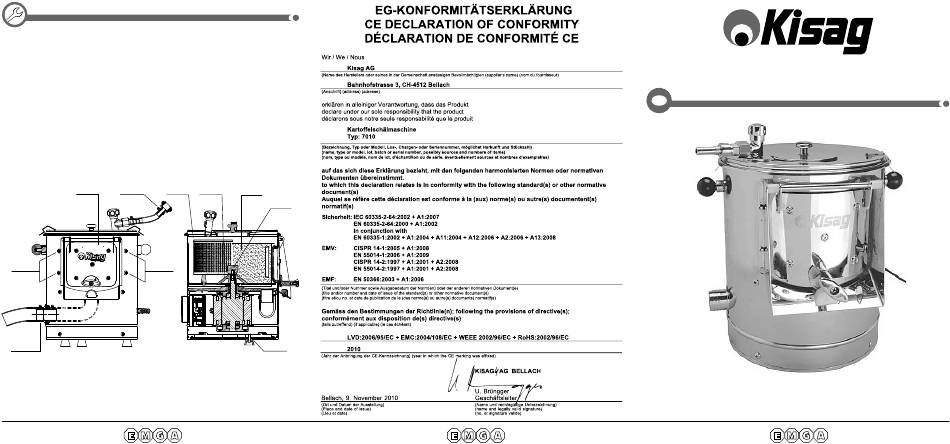

Available replacement parts:

Art. 7010 100 Peeling insert (complete) Art. 7010 103 Water hose (complete)
Art. 7010 101 Foot set Art. 7010 104 Waste water hose (complete)
Art. 7010 002 Peeling plate Art. 7010 105 Door gasket set
Art. 7010 025 Fastening screw Art. 7010 106 Salad bowl complete (optional)
7010 105 7010 103 7010 106
Screw 09 Screw 09
7010 104

Guarantee provisions:

Within the statutory warranty period, any product failure that occurs due to manufacturing defect will be
repaired free of charge. Proof of purchase is required. This warranty does not cover any damages caused by
misuse, damaged parts or repair service other than those which have been authorized, wear or consequen-
tial damages. The appliance has to be returned to Kisag AG, CH-4512 Bellach or to a service facility chartered
by Kisag. immediately after detection of a defect including a copy of the sales receipt and a description of
the defect detected. Shipping will be paid.
7010 002 7010 100
7010 025
7010 101
Potato peeling machine product *204.040
GB
Instruction manual
*204.040
English
Version 01/2010
