INSTALLATION INSTRUCTIONS
FCW5806 -
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
GENERAL:
1. Before starting the installation, make sure all electricity has been turned off
and electrical breaker has been locked out and tagged out.
2. To ensure the success of the installation, be sure to read these instructions
and review the diagrams thoroughly before beginning.
3. All electrical connections must be in accordance with local codes,
ordinances, or the National Electrical Code.
NOTE: The important safeguards and instructions appearing in this manual
are not meant to cover all possible conditions and situations that may occur.
INSTALLATION:
A) Standard Canopy installation Fig. A
1) Remove (3) Set Screws from base of fixture to remove base mounting
plate from the Canopy Housing
2) Fasten Mounting Plate to desired surface.
3) Refasten Mounting Canopy to secured Mounting Plate.
4) Adjust fixture tilt and swivel to desired light angle.
B) Integral Ballast Box (IBB) Canopy installation Fig. B
1) Fixture comes assembled and only needs to be fastened to mounting
surface.
2) Use 4 holes at the base of the Mounting Plate to fasten fixture to
desired mounting surface.
3) Adjust fixture tilt and swivel to desired light angle.
NOTE: Installing fixtures as shown here requires no silicone sealant.
Fig. A, fixture power cord does not pass through Mounting Canopy.
Fig. B, Mounting Canopy and Mounting Plate are rubber gasket sealed.
CONFIDENTIAL
THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF FC LIGHTING, INC. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICTLY PROHIBITED.

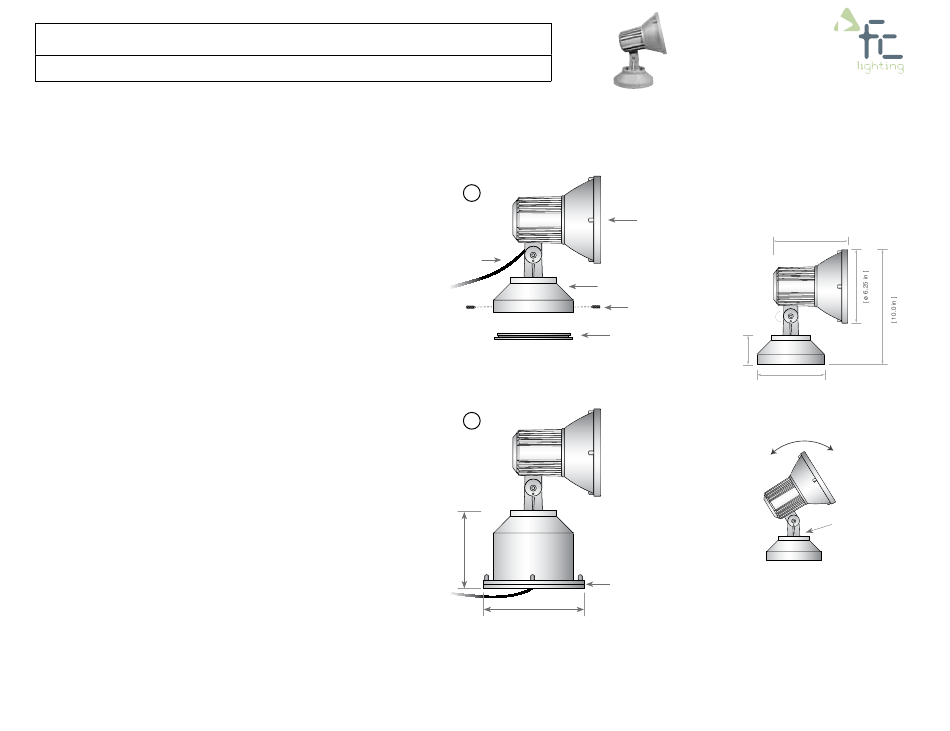

DETAILED ILLUSTRATION
A
Power Cord
Mounting Canopy
B
5.04 in
IBB
7.63 in
Fixture
Set Screws
Mounting Plate
[ 2.5 in ]
[ ø 6.0 in ]
Adjust Tilt
Integral Ballast Box
Mounting Canopy
Mounting Plate
corporate
t 800.900.1730
f 630.889.8106
3609 Swenson Ave.
St. Charles, IL 60174
[ 6.5 in ]
Adjust Swivel
©2013 FC LIGHTING, INC.
Advertisement
Summary of Contents for FC LIGHTING FCW5806
-
Page 1: Installation Instructions
Fig. A, fixture power cord does not pass through Mounting Canopy. 7.63 in Fig. B, Mounting Canopy and Mounting Plate are rubber gasket sealed. CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF FC LIGHTING, INC. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICTLY PROHIBITED. ©2013 FC LIGHTING, INC. - Page 2 IMPORTANT: Installer must use a bead of silicone caulk to seal around the entire edge of the fixture where Mounting Plate meets Mounting Canopy and Bollard Top Plate. CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF FC LIGHTING, INC. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICTLY PROHIBITED. ©2013 FC LIGHTING, INC.
