  • Page 1 Quick Start Guide 快速入门指南...

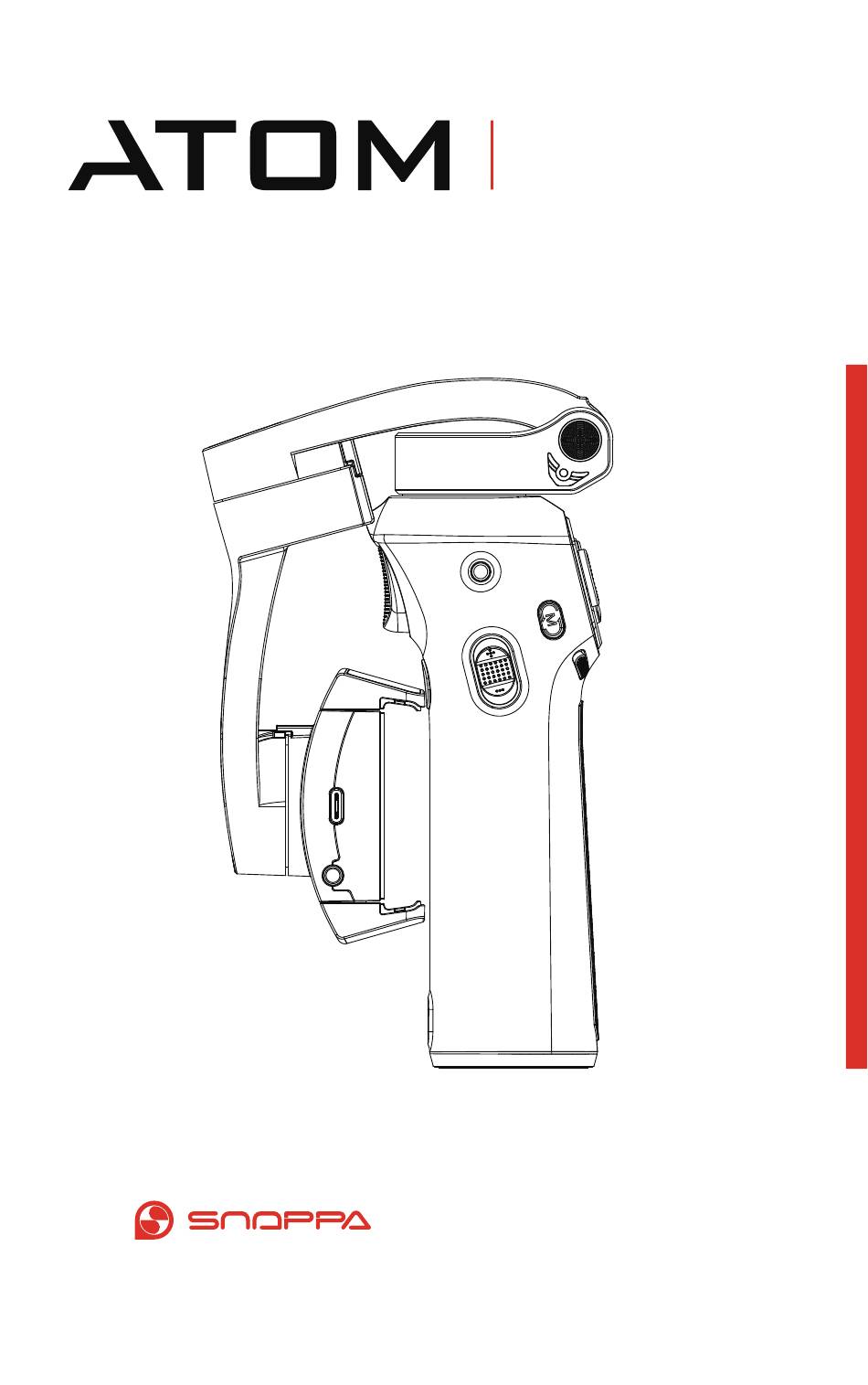

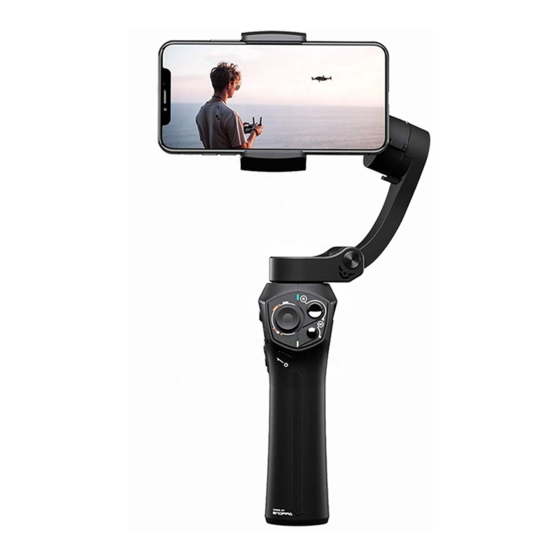

  • Page 2 1. Introduction ATOM is a foldable three-axis phone gimbal, featuring portable, lightweight, wired and wireless phone charging, integrated microphone jack, one-key orientation switch, high payload, long runtime and so on, which can provide you with brilliant phone lming experience. Structural diagram:...
  • Page 3 2. In the Box ATOM gimbal Type-C to Type-C cable USB to Type-C gimbal Type-C to Lightning cable charging cable Mic jack cable Carrying bag Quick start guide Warranty card...
  • Page 4 3. Opening and closing the ATOM Open： press and hold the spring button to open the arm, unlock the roll and tilt motors by turning the motor lock. Unlock Press Notice：If either motor is locked when the gimbal power is on, the motor will beep for a while and the gimbal will enter standby mode.

  • Page 5: Mounting The Phone

    4. Mounting the phone [1] Mount the phone into the phone holder in the middle position. Notice: The gimbal will vibrate if the phone holder is empty. Make sure to mount the phone before starting up the gimbal. Pull Center [2] Mount the phone with the camera on the left checking that the camera is not blocked.
  • Page 6 [3] When mounting an add-on lens, move the phone to the right to make the center of gravity allign with the center of the phone holder. Move rightward Add-on lens to balance 5. Power on/o On：Move the power key up to turn on the gimbal, and the power indicator becomes constant green.

  • Page 7: Bluetooth Connection

    7. Bluetooth connection [1] Make sure the Bluetooth in the phone is turned on. [2] In the Snoppa app, press the Bluetooth icon on the corner. In the popup menu choose the ATOM device to connect and pair. (You can also connect the ATOM Bluetooth in the phone system...

  • Page 8: Firmware Update

    Don’t lock the screen or switch the Snoppa app to background in this case the updating is interrupted. Keep the phone and the ATOM placed together, if they are separated the Bluetooth would be disconnected and the update may fail.
  • Page 9 Keep the gimbal still during the drift calibration, otherwise it may a ect the calibration result. 10. Customizable key The customizable keys can be de ned in the Snoppa App setting menu. Setting—Gimbal—Customizable button Customizable key list: Customizable back key——Long press Customizable back key ——press...

  • Page 10: Phone Charging

    11. Phone charging Wireless charge ATOM can charge the phone wirelessly if the phone has wireless charging capability. “wireless charge” can be assigned to a customizable key, and you can use the key to enable or disable the wireless charge function.
  • Page 11 The blue light shows the ATOM is in pan follow mode and the gimbal will only follow your arm’s movement moving left and right, and the tilt is locked.
  • Page 12 Omni-direction follow mode Pan follow mode 15.Horizontal/Vertical orientation switch Orientation can be switched between horizontal and vertical by two methods: Manual rotate： Hold the phone with your hand Turn and rotate it 90 degrees. Button rotation：Set a customizable key with “orientation switch”...

  • Page 13: Direction Lock

    16. Quick follow mode Press, press again and hold the trigger button, the gimbal will turn to quick follow mode. In the quick follow mode, the gimbal will move fast responding to arm’s movement, which is better for tracking fast moving object. Press, press again and hold 17.

  • Page 14: Function Menu

    [3] Now the phone camera focus or zoom can be controlled with the slide key. 19. Function menu When the ATOM is connected with the Snoppa app, the function menu can be called up by clicking the menu key on the handle Call up the menu ，choose di erent video modes or photo...

  • Page 15: Speci Cations

    20. Speci cations Gimbal Product name ATOM Working voltage 7.4V Working current 90mA （in balance status） Working temperature -10℃~45℃ Dimensions（W*D*H） Unfolded：123*73*297 (mm) Folded：50*106*178 (mm) Body weight 440g Tilt axis mechanical rotation range 330° Roll axis mechanical rotation range 330° Pan axis mechanical rotation range 360°...
