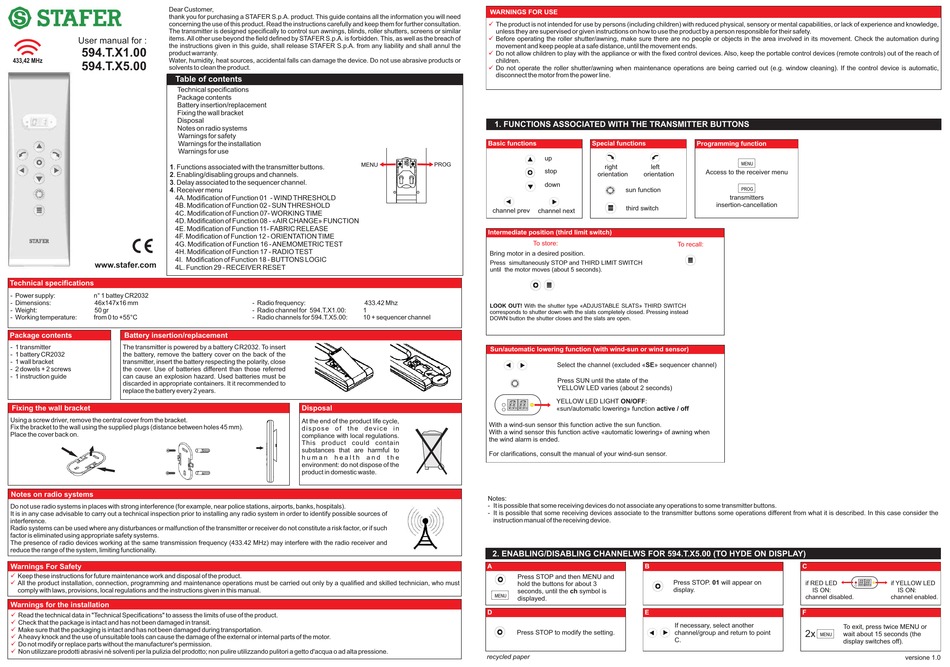

Stafer 594.T.X5.00 User Manual

Dear Customer,
thank you for purchasing a STAFER S.p.A. product. This guide contains all the information you will need
concerning the use of this product. Read the instructions carefully and keep them for further consultation.
The transmitter is designed specifically to control sun awnings, blinds, roller shutters, screens or similar
items. All other use beyond the field defined by STAFER S.p.A. is forbidden. This, as well as the breach of
User manual for :
the instructions given in this guide, shall release STAFER S.p.A. from any liability and shall annul the
594.T.X1.00
product warranty.
Water, humidity, heat sources, accidental falls can damage the device. Do not use abrasive products or
433,42 MHz
594.T.X5.00
solvents to clean the product.
Table of contents

Technical specifications

Package contents

Battery insertion/replacement

Fixing the wall bracket

Disposal

Notes on radio systems

Warnings for safety

Warnings for the installation

Warnings for use

1. Functions associated with the transmitter buttons.

2. Enabling/disabling groups and channels.

3. Delay Associated To The Sequencer Channel.
4. Receiver Menu
4A. Modification Of Function 01 - Wind Threshold
4B. Modification Of Function 02 - Sun Threshold
4C. Modification of Function 07- WORKING TIME
4D. Modification of Function 08 - «AIR CHANGE» FUNCTION
4E. Modification of Function 11- FABRIC RELEASE
4F. Modification Of Function 12 - Orientation Time
4G. Modification Of Function 16 - Anemometric Test
4H. Modification Of Function 17 - Radio Test
4I. Modification Of Function 18 - Buttons Logic
www.stafer.com
4L. Function 29 - Receiver Reset
Technical specifications
- Power supply: n° 1 battey CR2032
- Dimensions: 46x147x16 mm
- Weight: 50 gr
- Working temperature: from 0 to +55°C
Package contents Battery insertion/replacement
ARCO5 - ARCO10 - ARCO20
- 1 transmitter The transmitter is powered by a battery C R2032. To insert
- 1 battery CR2032 the battery, remove the battery cover on the back of the
- 1 wall bracket transmitter, insert the battery respecting the polarity, close
- 2 dowels + 2 screws the cover. Use of batteries different than those referred
- 1 instruction guide can cause an explosion hazard. Used batteries must be
discarded in appropriate containers. It it recommended to
replace the battery every 2 years.
Fixing the wall bracket
Using a screw driver, remove the central cover from the bracket.
Fix the bracket to the wall using the supplied plugs (distance between holes 45 mm).
Place the cover back on.
Notes on radio systems
Do not use radio systems in places with strong interference (for example, near police stations, airports, banks, hospitals).
It is in any case advisable to carry out a technical inspection prior to installing any radio system in order to identify possible sources of
interference.
Radio systems can be used where any disturbances or malfunction of the transmitter or receiver do not constitute a risk factor, or if such
factor is eliminated using appropriate safety systems.
The presence of radio devices working at the same transmission frequency (433.42 MHz) may interfere with the radio receiver and
reduce the range of the system, limiting functionality.
Warnings For Safety
ü Keep these instructions for future maintenance work and disposal of the product.
ü
All the product installation, connection, programming and maintenance operations must be carried out only by a qualified and skilled technician, who must
comply with laws, provisions, local regulations and the instructions given in this manual.
Warnings for the installation
ü
Read the technical data in "Technical Specifications" to assess the limits of use of the product.
ü Check that the package is intact and has not been damaged in transit.
ü Make sure that the packaging is intact and has not been damaged during transportation.
ü A heavy knock and the use of unsuitable tools can cause the damage of the external or internal parts of the motor.
ü
Do not modify or replace parts without the manufacturer's permission.
ü Non utilizzare prodotti abrasivi né solventi per la pulizia del prodotto; non pulire utilizzando pulitori a getto d'acqua o ad alta pressione.
MENU
- Radio frequency: 433.42 Mhz
- Radio channel for 594.T.X1.00: 1
- Radio channels for 594.T.X5.00: 10 + sequencer channel
Disposal
At the end of the product life cycle,
d i s p o s e o f t h e d e v i c e i n
compliance with local regulations.
This product could contain
substances that are harmful to
h u m a n h e a l t h a n d t h e
environment: do not dispose of the
product in domestic waste.
WARNINGS FOR USE
ü The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they are supervised or given instructions on how to use the product by a person responsible for their safety.
ü Before operating the roller shutter/awning, make sure there are no people or objects in the area involved in its movement. Check the automation during
movement and keep people at a safe distance, until the movement ends.
ü Do not allow children to play with the appliance or with the fixed control devices. Also, keep the portable control devices (remote controls) out of the reach of
children.
ü Do not operate the roller shutter/awning when maintenance operations are being carried out (e.g. window cleaning). If the control device is automatic,
disconnect the motor from the power line.
1. FUNCTIONS ASSOCIATED WITH THE TRANSMITTER BUTTONS
Basic functions Special functions
up
PROG
right
stop
orientation
down
channel prev channel next
Intermediate position (third limit switch)
To store:
Bring motor in a desired position.
Press simultaneously STOP and THIRD LIMIT SWITCH
until the motor moves (about 5 seconds).
LOOK OUT! With the shutter type «ADJUSTABLE SLATS» THIRD SWITCH
corresponds to shutter down with the slats completely closed. Pressing instead
DOWN button the shutter closes and the slats are open.
Sun/automatic lowering function (with wind-sun or wind sensor)
Select the channel (excluded «SE» sequencer channel)
Press SUN until the state of the
YELLOW LED varies (about 2 seconds)
YELLOW LED LIGHT ON/OFF:
«sun/automatic lowering» function active / off
With a wind-sun sensor this function active the sun function.
With a wind sensor this function active «automatic lowering» of awning when
the wind alarm is ended.
For clarifications, consult the manual of your wind-sun sensor.
Notes:
- It is possible that some receiving devices do not associate any operations to some transmitter buttons.
- It is possible that some receiving devices associate to the transmitter buttons some operations different from what it is described. In this case consider the
instruction manual of the receiving device.
2. ENABLING/DISABLING CHANNELWS FOR 594.T.X5.00 (TO HYDE ON DISPLAY)
A
Press STOP and then MENU and
hold the buttons for about 3
seconds, until the ch symbol is
MENU
displayed.
D
Press STOP to modify the setting.
recycled paper
Programming function
MENU
left
Access to the receiver menu
orientation
sun function PROG
transmitters
insertion-cancellation
third switch
To recall:
B C
Press STOP. 01 will appear on
display.
E F
If necessary, select another
channel/group and return to point
C.
if RED LED if YELLOW LED
IS ON: IS ON:
channel disabled. channel enabled.
To exit, press twice MENU or
2x
wait about 15 seconds (the
MENU
display switches off).
versione 1.0
