Summary of Contents for SBL LED FL-350
- Page 1 FL-350 DMX Follow Spot Light User Manual...
-
Page 2: Product Features
USER MANUAL LED FL-350 DMX Follow Spot Light Every person involved with the installation, operation and maintenance of this device has to - be qualified - follow the instructions of this manual - consider this manual to be part of the total product... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Intended use This device is an LED projector for creating decorative lighting effects. This device is designed for professional use in the field of event technology, e.g. on stage. It is not suitable for household lighting. Only use the device according to the instructions given herein. Damages due to failure to follow these operating instructions will void the warranty! We do not assume any liability for any resulting damage. - Page 4 Warning – risk of burns and fire The admissible ambient temperature range (Ta) is -5 to +40°C. Do not operate the device outside of this temperature range. The housing temperature (Tc) can be up to 50°C during use. Avoid contact by persons and materials. Do not illuminate surfaces within 50 cm of the device.
-
Page 5: Description Of The Device

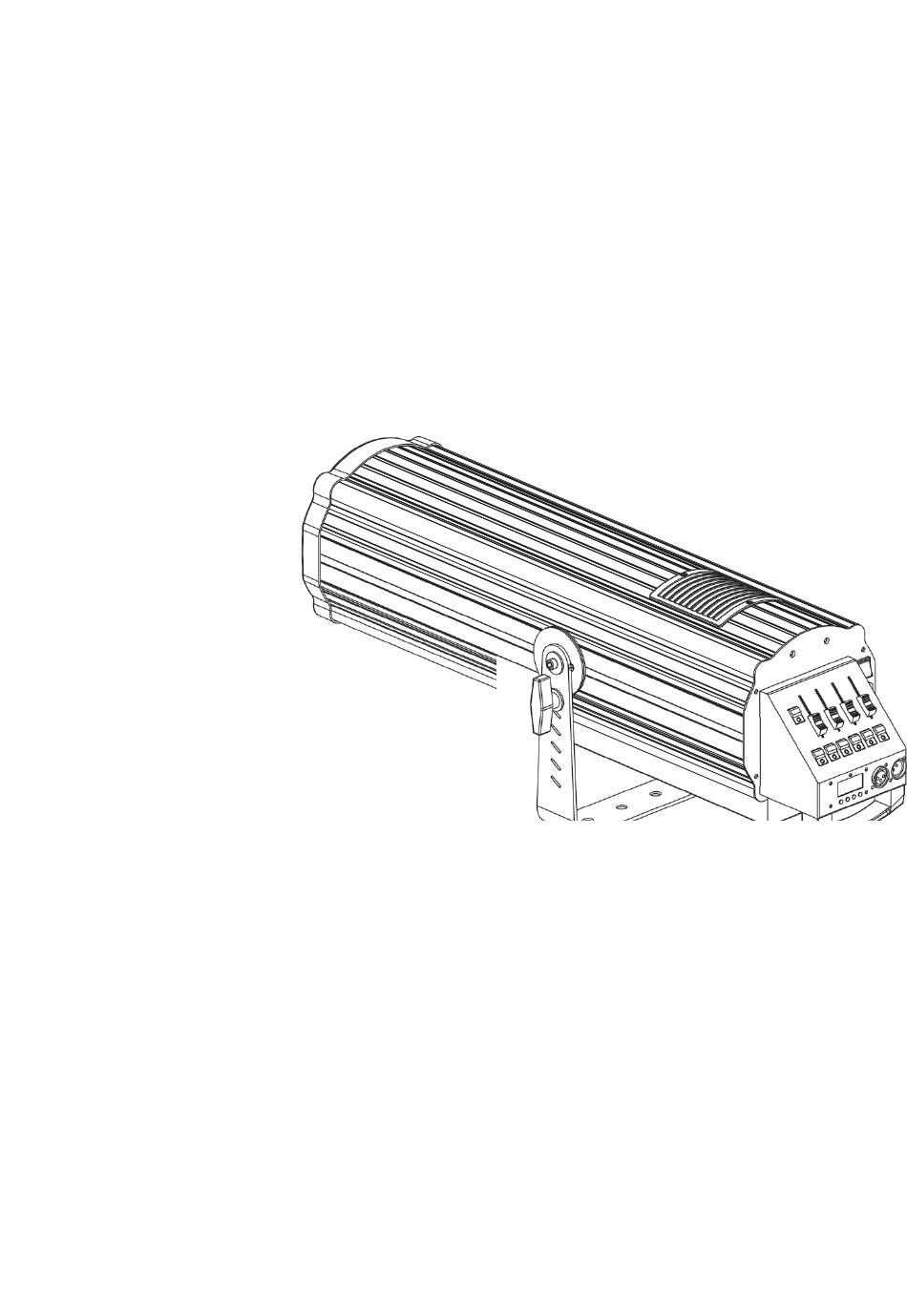

DESCRIPTION OF THE DEVICE 1. Lens 2. Fixation screws 3. Mounting bracket 4. Zoom knob 5. Focus knob 6. Ventilation slots 7. On/Off switch, power in and fuse holder on the rear of the housing 8. Control panel Control Panel: 9. -
Page 6: Installation
INSTALLATION Please note: All devices, lighting effects and crossbeams attached on a stand must be secured with a secondary attachment! 1. Attach an appropriate adapter or TV-adapter to the top end of the stand and fasten it with the fixation screw. -
Page 7: Operation
OPERATION After you connected the effect to the mains, the light starts running. The power switch is on the right side of the panel. During the reset of 30 seconds, the motors are trimmed and the device is ready for use afterwards. Via the Lamp ON/OFF switch you can turn the LED on and off. -
Page 8: Dmx Operation
DMX operation Setting the DMX starting address For operation with a controller with DMX512 protocol, the device is equipped with 6 control channels. To be able to operate the device with a DMX controller, the DMX starting address must be set for the first DMX channel. -
Page 9: Cleaning And Maintenance
CLEANING AND MAINTENANCE The outside of the device should be cleaned periodically to remove contaminants such as dust etc. The lens, in particular, should be clean to ensure that light will be emitted at maximum brightness. Disconnect the device from power and allow it to cool before cleaning. Clean the surface with a soft lint-free and moistened cloth. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Power supply: 100-240 V AC, 50/60 Hz Power consumption: 440 W Protection class: Fuse: T5A, 250V DMX control channels: DMX512 connection: 3-pin XLR LED type: 300 W WW Number of LEDs: Color temperature: 3500 K Beam angle: 7° - 13° Flash rate: 1-20 Hz Dimensions (L x W x H):...
