MightyMount
Quick Start Installation Guide
What's Included
A) 1/4" Hex Key
B) (4) Display Thumb Screws (M4 x 8)
C) (4) Display Thumb Screws (M4 x 12)
D) Track cover
Tools You'll Need
• #1 Phillips screwdriver
• Wire Cutter & Tie Wraps (for securing
keyboard and mouse cabling: see Step 4 for
instructions on accessing prewired USB hub)
2. Install Onto Track
STRONGARMhealthcare
Visit strongarmhealthcare.com to view our installation video.

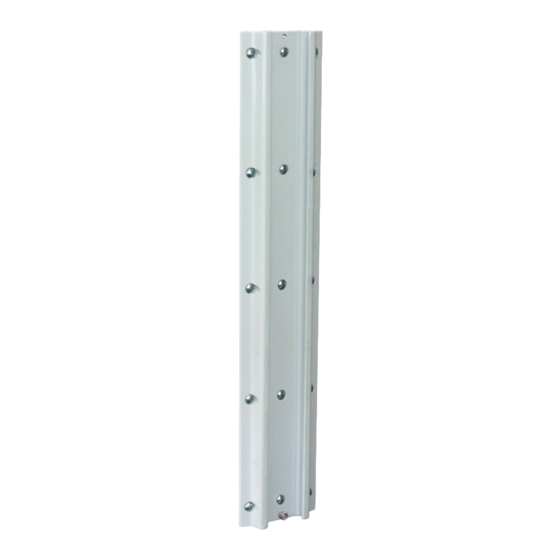

1. Install Mounting Track*
* Refer to track installation instructions
3. Level and Tighten
Use 1/4" Hex Key to Tighten Four Slider Key Bolts
Advertisement
Related Manuals for Strongarm MightyMount
Summary of Contents for Strongarm MightyMount
- Page 1 MightyMount STRONGARMhealthcare Quick Start Installation Guide Visit strongarmhealthcare.com to view our installation video. What’s Included A) 1/4” Hex Key B) (4) Display Thumb Screws (M4 x 8) C) (4) Display Thumb Screws (M4 x 12) D) Track cover Tools You’ll Need •...
-
Page 2: Install Display
1) Pull out keyboard tray and remove #1 Phillips Using (4) M4 x 8 Display Thumb Screws, attach head screw from top writing surface, accessed display to MightyMount. (NOTE: If the M4 x 8 Display through key holes in tray Thumb Screws can’t be threaded sufficiently to provide a secure... - Page 3 MightyMount STRONGARMhealthcare Operation Guide LOCK UNLOCK Vertical Lock Vertical Adjustment Mounting Rotation PatientView* Display Rotation Pull Out Keyboard Tray (*On PatientView equipped models)
- Page 4 MightyMount STRONGARMhealthcare Operation Guide Display/Keyboard Rotation Display Tilt Slide Out Mouse Tray Fold-up Keyboard (optional) © 2016 STRONGARM Healthcare • 425 Caredean Drive, Horsham, PA 19044 • 215-443-3400 • FAX 215-443-3002 www.strongarmhealthcare.com...
