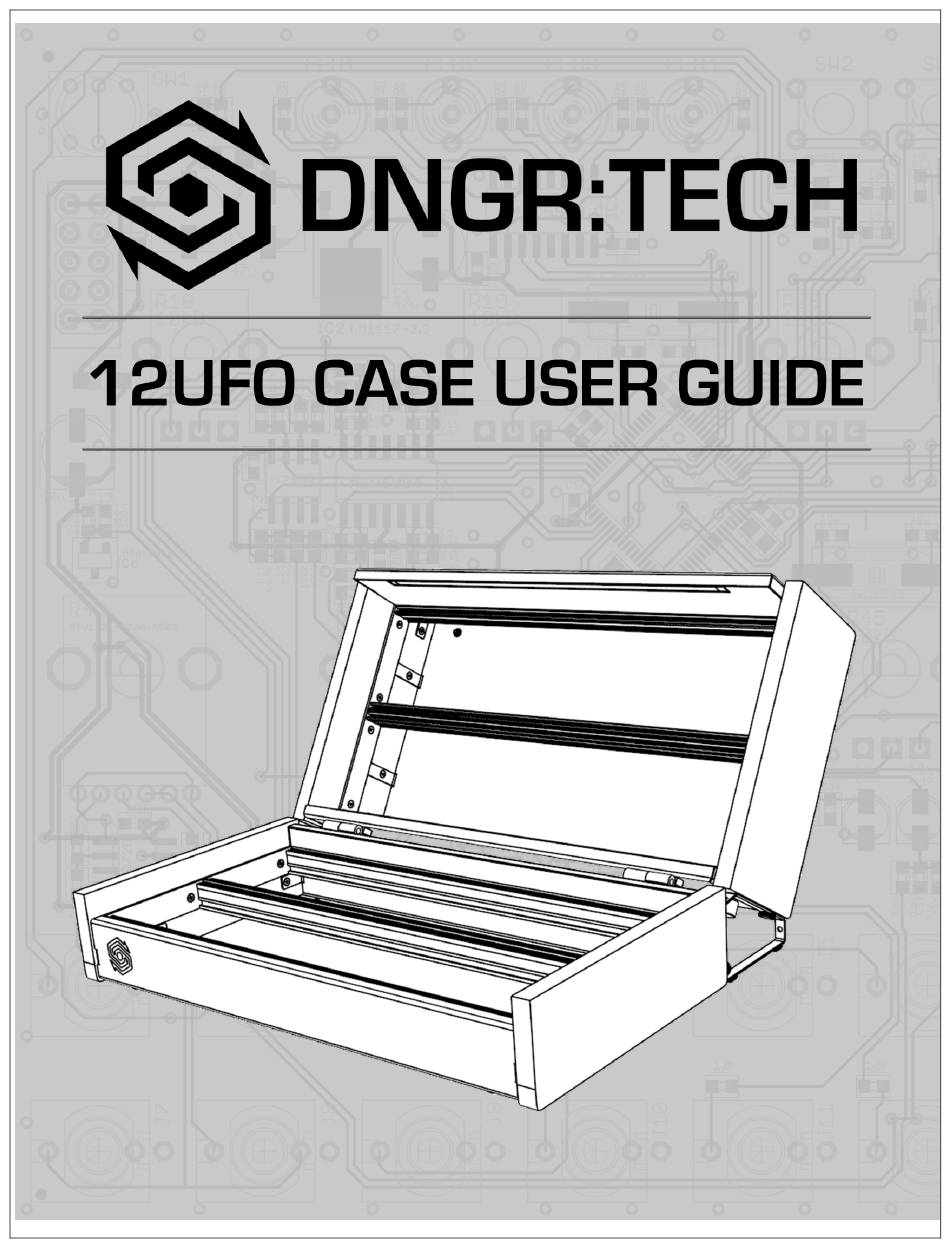

Summary of Contents for DNGR:TECH 12UFO
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ............................3 ATTACHING THE STAND ........................4 LID 100° POSITION ..........................4 LID 120° POSITION ..........................7 LID 120° POSITION (EASY MOUNT) .................. 10 CLOSING THE CASE ..........................13... -
Page 3: Introduction
– hidden screws and simple straight lines combined with the raw natural wood are the key elements in the design. It is worth mentioning that DNGR:TECH cases are not just great looking. They combine high level of exterior protection as well, though... -
Page 4: Attaching The Stand
2. ATTACHING THE STAND The stand may be attached in two positions; the 100° and 120° open lid position. 2.1 LID 100° POSITION 1. Attach the stand to the lid and tighten the screws as shown in the picture below: Tighten the screws 2. - Page 5 4. Open the case holding the latches with both hands: 5. Make sure the holes in the both stands are aligned with the threaded inserts located in the bottom side panels. Attach the screws and tighten them firmly in place:...
- Page 6 Tighten the screws 6. Done!
-
Page 7: Lid 120° Position
2.2 LID 120° POSITION 1. Attach the stand to the lid and tighten the screws as shown in the picture below: Tighten the screws 2. Make sure both stands are aligned in parallel with the side panels. 3. Unfasten both toggle latches. 4. - Page 8 Make sure the holes in the both stands are aligned with the threaded inserts located in the bottom side panels. Attach the screws and tighten them firmly in place:...
- Page 9 Tighten the screws Done!
-
Page 10: Lid 120° Position (Easy Mount)
2.3 LID 120° POSITION (EASY MOUNT) 1. Attach the stand to the bottom panels and tighten the screws as shown in the picture below: Tighten the screws 2. Unfasten both toggle latches. - Page 11 3. Open the case holding the latches with both hands:...
- Page 12 4. Done! Now you can open and close the case without tightening and untightening the screws. Just keep in mind that the lid is more flexible in this position. Pay attention to the hinges that shall be fully closed all the time you are using the case: Hinges are fully closed...
-
Page 13: Closing The Case
3. CLOSING THE CASE When closing the case, hold the latches with both hands to avoid scratching the case surface. Pay extra attention when you close the case so that the hinges are fully closed as shown on the picture below: Hinges are fully closed CORRECT... - Page 14 Not fully closed! INCORRECT If you try to close the case in which the hinges are not fully closed you will damage the wooden side panel of the case!
