USB dongle for the Bluetooth® class 1 SPBT2632C1A.AT2 module
Features
■
Based on V3.0 Bluetooth® class 1 module,
SPBT2632C1A.AT2
■
USB interface and power supply
■
Supported reprogrammability via USB
interface
■
Reset button
■
Antenna onboard
■
RoHS compliant
Description

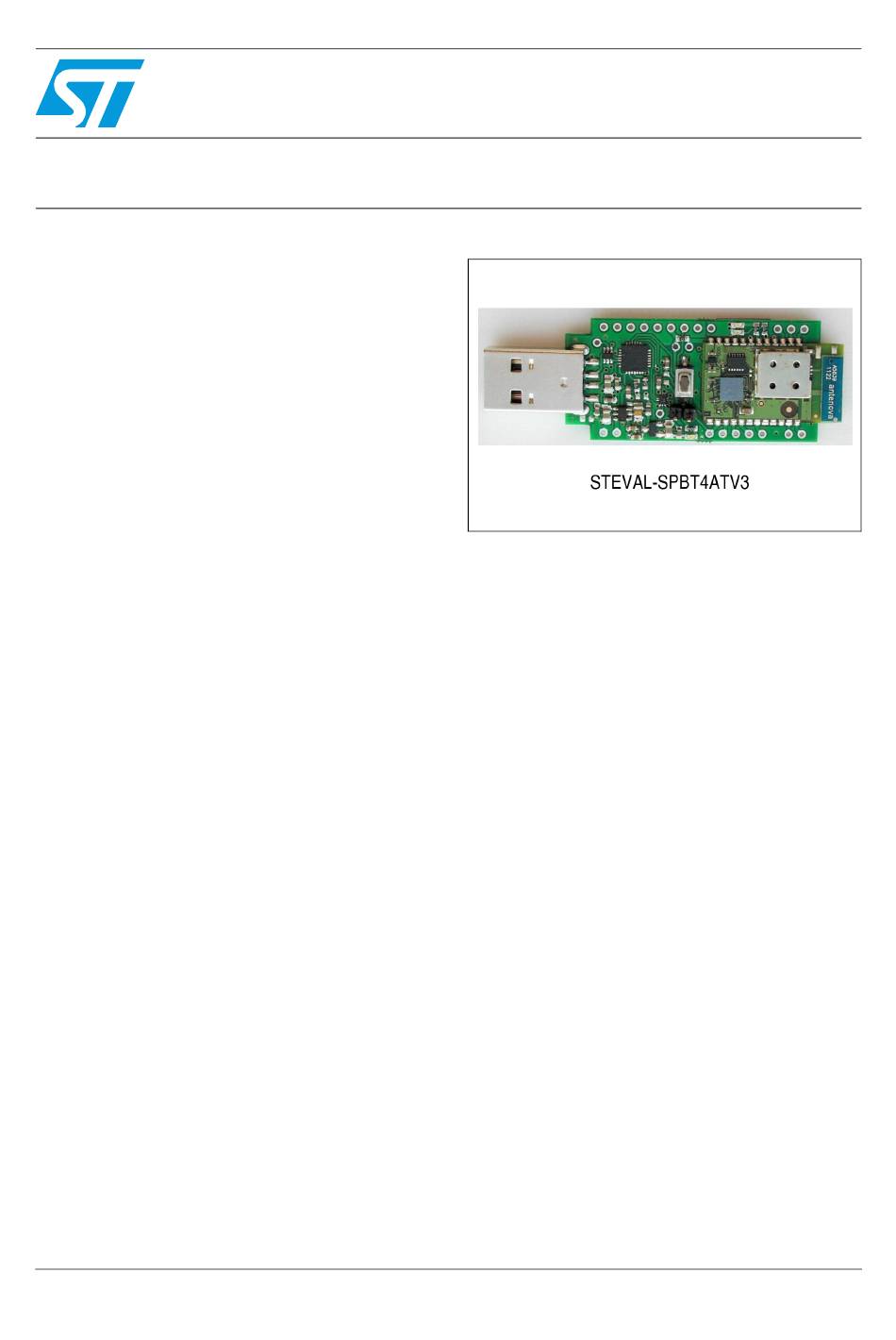

The STEVAL-SPBT4ATV3 demonstration board is
a design tool to evaluate the SPBT2632C1A.AT2
module in a quick and simple way.
The dongle includes the RF antenna and the USB
connector.
The USB connector is used to connect the dongle
to a PC, to access the Bluetooth® module, and to
supply the dongle.
The STEVAL-SPBT4ATV3 includes downloaded
FW, enabling the user to create a Bluetooth® link
with simple AT commands. The AT command list
is detailed in the user manual UM1547.
The AN4128 application note describes how to
get started with the STEVAL-SPBT4ATV3.
The SPBT2632C1A.AT2-based dongle is a
demonstration tool only, to be used strictly for
evaluation purposes. It is not a product in itself.
June 2012
For further information contact your local STMicroelectronics sales office.
STEVAL-SPBT4ATV3
Doc ID 023305 Rev 1
Data brief
1/9
www.st.com
9
Advertisement
Table of Contents
Related Manuals for ST STEVAL-SPBT4ATV3
Summary of Contents for ST STEVAL-SPBT4ATV3
- Page 1 ■ Antenna onboard ■ RoHS compliant Description The STEVAL-SPBT4ATV3 demonstration board is a design tool to evaluate the SPBT2632C1A.AT2 module in a quick and simple way. The dongle includes the RF antenna and the USB connector. The USB connector is used to connect the dongle to a PC, to access the Bluetooth®...
-
Page 2: Table Of Contents
Contents STEVAL-SPBT4ATV3 Contents Recommended operating conditions ......3 Dongle layout ..........4 I/O connections . -
Page 3: Recommended Operating Conditions
STEVAL-SPBT4ATV3 Recommended operating conditions Recommended operating conditions Table 1. Recommended operating conditions Symbol Parameter Conditions Min. Typ. Max. Unit Board supply voltage -40 °C < T < 85 °C Operating case °C temperature range Doc ID 023305 Rev 1... -
Page 4: Dongle Layout
Dongle layout STEVAL-SPBT4ATV3 Dongle layout Figure 1. Dongle component layout, front side Figure 2. Dongle component layout, bottom side Doc ID 023305 Rev 1... -
Page 5: I/O Connections
STEVAL-SPBT4ATV3 I/O connections I/O connections PAD description Other than the USB plug, some pads are also available. In fact, pads PAD1 to PAD13 make the SPBT2632C2A.AT2 pins available to the user. Figure 3. Available pads AM12354v1 Table 2 gives a description of these pads. - Page 6 I/O connections STEVAL-SPBT4ATV3 Table 2. Pad connections (continued) Description GPIO08 - General purpose I/O (*) GPIO10 - General purpose I/O GPIO09 - General purpose I/O (*) GPIO11 - General purpose I/O (*) GPIO12 - General purpose I/O (*) Note: Default configuration - different configurations can be chosen (see datasheet).
-
Page 7: Dongle Schematic
STEVAL-SPBT4ATV3 Dongle schematic Dongle schematic Figure 4. Dongle electrical drawing Doc ID 023305 Rev 1... -
Page 8: Revision History
Revision history STEVAL-SPBT4ATV3 Revision history Table 3. Document revision history Date Revision Changes 25-Jun-2012 Initial release. Doc ID 023305 Rev 1... - Page 9 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
