Fawn Lake Fountains LED Light Kit Installation Instructions

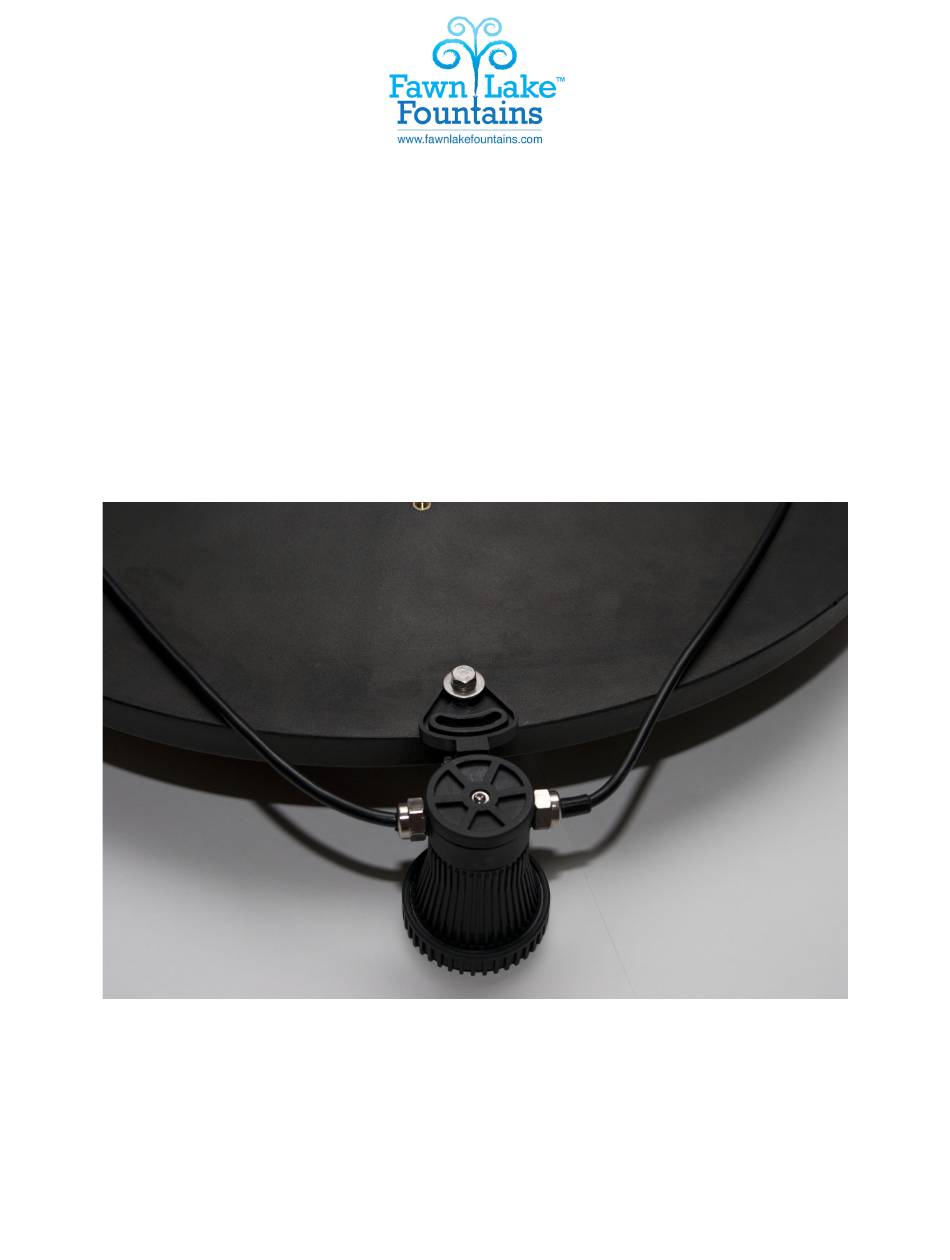

First secure the three lights as shown to the bottom of your fountain float with the

provided stainless steel bolts, split washers and flat washers. Do not over tighten!

(3) 6 Watt HD underwater rated lights

100' power cord

Stainless Steel hardware

50 Watt Transformer

Red, Green, and Blue Color Filters

Table of Contents

Need help?

Do you have a question about the LED Light Kit and is the answer not in the manual?

Page 1 Fawn Lake Fountains LED Light Kit Installation Instructions (3) 6 Watt HD underwater rated lights 100’ power cord Stainless Steel hardware 50 Watt Transformer Red, Green, and Blue Color Filters First secure the three lights as shown to the bottom of your fountain float with the provided stainless steel bolts, split washers and flat washers. Do not over tighten!
Page 2 Attach stainless eyebolt to one of the internal threaded inserts and secure with nut Use provided zip-tie to secure light power cable to eyebolt. The power cable should not have any stress on the first light fixture. Connect the end of the power cable to the supplied transformer and enjoy the show. Notes: • Light kit should be installed while fountain is on land. • Do not try to tighten any fittings as doing so can damage waterproof seals. • When using the included light filters, carefully unscrew the top of the light fixture, place the filter on top of the glass lens, and then reinstall the top of the light fixture.
Page 3 Light Kits All new (non-clearance) light kits come with a 1-year warranty. Fawn Lake Fountains will not warranty any light kits that have been modified in any way. Parts Fountain parts are all covered under our standard 1-year warranty.
