Summary of Contents for Hobart VPU 100

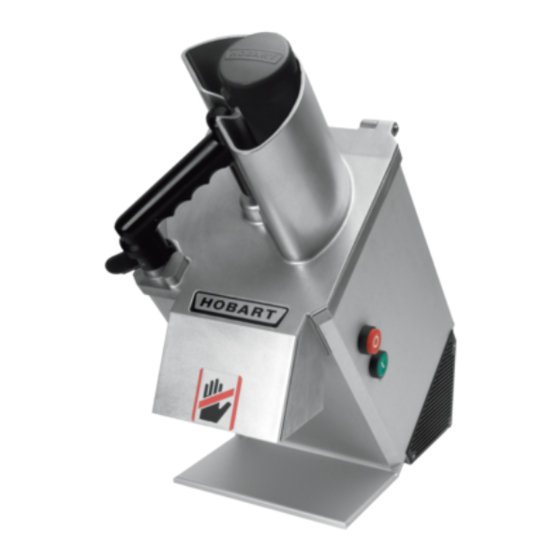

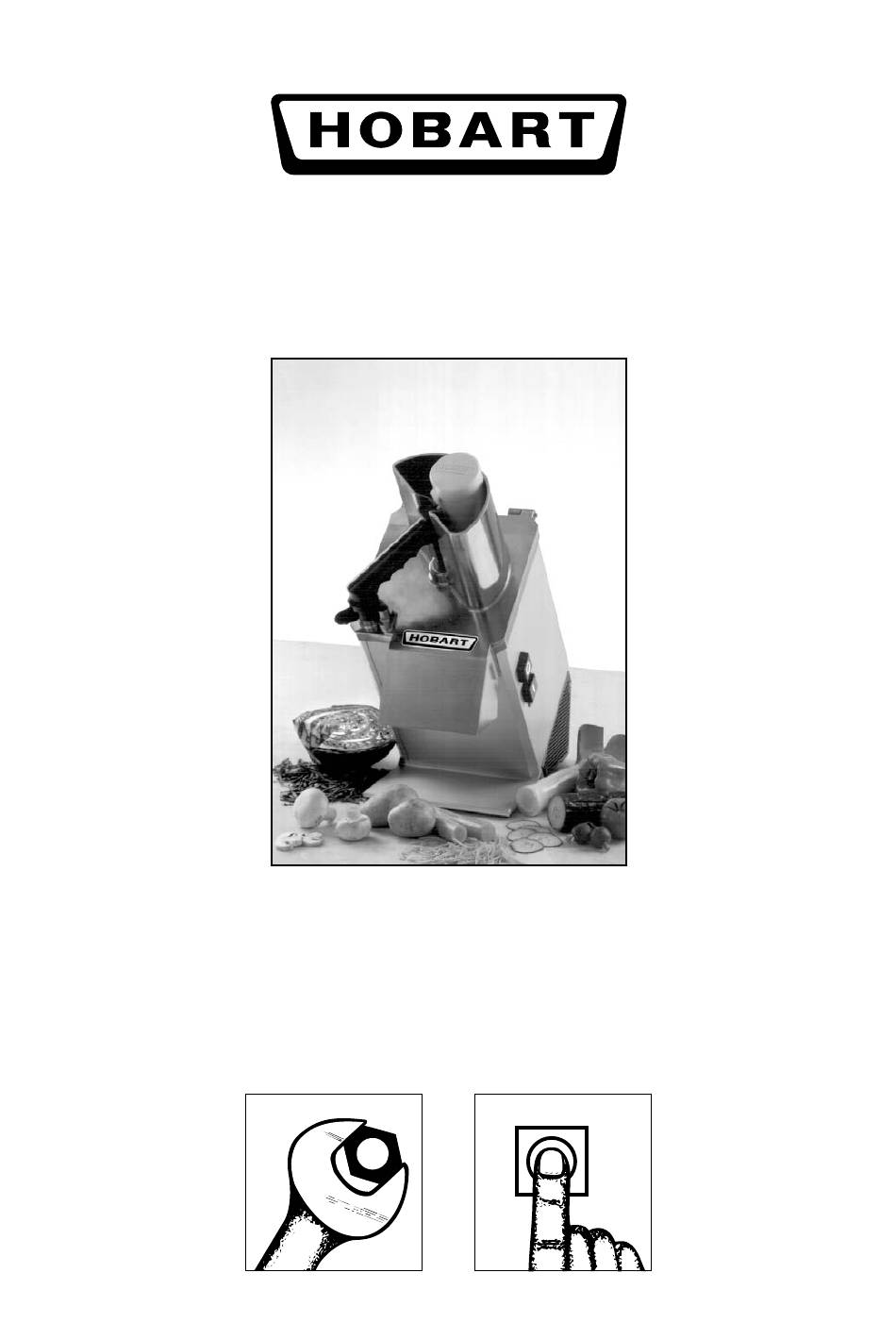

- Page 1 Vegetable Preparation Unit VPU 100 (VPU6) INSTALLATION OPERATION...
-
Page 2: Table Of Contents
Installation and Operation Instructions for the Vegetable Preparation Unit VPU 100 Content Page 1. Installation ....................3 2. Preparation ..................... 4 3. Use of the discs ..................5 4. Operation ....................6 5. Cleaning ....................7 6. Maintenance ................... 7 7. -
Page 3: Installation
– Crating and packaging materials should be removed with care. Shipping damage claims – This appliance was carefully inspected and packed before leaving the Hobart factory. The company transporting it assumes full responsibility for its safe delivery. Visible damage or loss –... -
Page 4: Preparation
Preparation Cutting / grating – Raise pusher plate (1) and turn it to the left. – Turn the lock handle anticlockwise and lift the feed head (2) to the rear. – Put the ejector plate (3) onto the shaft and turn it until it drops into position. -
Page 5: Use Of The Discs
Use of the cutting tools Description A Standard slicer, cutting size 10 mm, for normal use and with dicing grid 10 x 10 or 15 x 15 mm. B Fine cut slicer, cutting size 1.5 mm, for cutting firm or fragile products and for chopping with dicing grid. C Fine cut slicer, cutting sizes 4, 6 and 10 mm, use as fine cut slicer 1.5 mm. -
Page 6: Operation
Operation Operation with feed head – Switch ON main switch (if fitted). – Raise pusher plate (1) and turn it to the left. – Fill feed head with product. – Turn pusher plate to the right and lower it into the feed head. –... -
Page 7: Cleaning
– That knives and grating plates are intact and sharp. – That the pusher plate shaft has sufficient grease. Note: If not, use a drop of machine oil, not cooking oil. Note: If any of above functions do not work properly call your regional Hobart office. -
Page 8: Trouble Shooting
(sharpness) too strong feed pressure a slight feeding pressure leads to of pusher the best cutting results for most products As continued product improvement is a policy of HOBART, specifications are subject to change without notice. Printed in Germany AG-20264-B-02-93-TD...
