TOOLS REQUIRED:

• Power Drill with Clutch
• #2 Phillips Bit Driver
• Hand Screwdriver
• 7/16" Socket w/ 1/4" drive
• 1/2" Socket & 1/2"wrench
• Tape Measure
• Pencil or Marker
• Hammer, Pliers and C-Clamp
READ ALL INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION

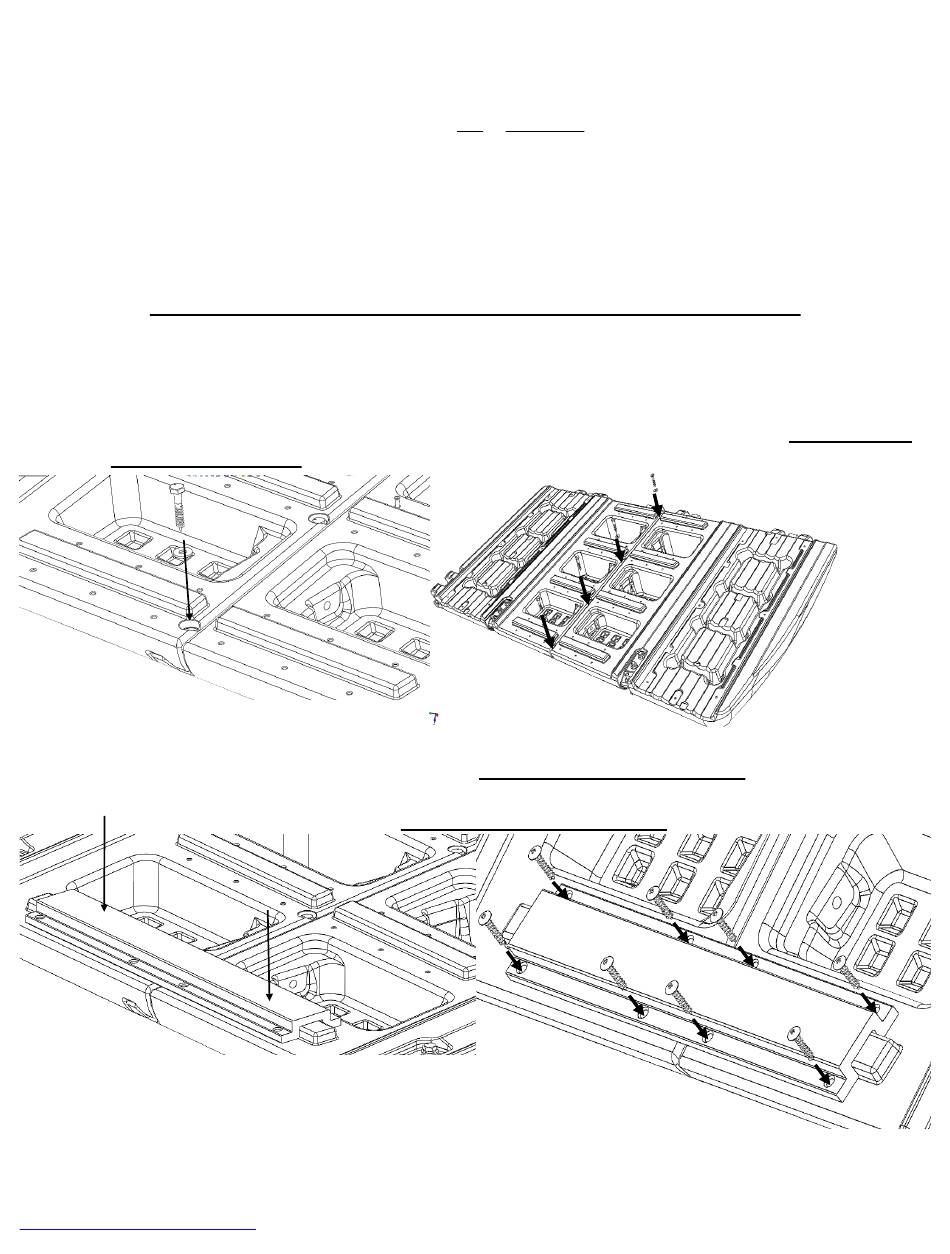

STEP 1: Lay shield halves down on a flat surface and attached the shields together. Press firmly on the top
shield to make sure the fasteners go directly in the bottom shield. Screw in (4) 1.5" lag screws and
washers. Torque gently with 7/16" ratchet until the shield halves pull together. Repeat this step with
the other half of the shield. This step will require (8) 1.5" lag screws and washers. Do not to over
tighten the lag screws.
STEP 2: Place Grips on shield as shown below, carefully align all (8) 1" Truss Head Screws in the holes.
Make sure the screws fall into the pilot holes even if they are angled slightly. Screw them in and
torque them by screw driver or drill (lightest clutch setting) until the Grips pull snug to the shield.
Repeat with the remaining 7 grips. Do not over tighten the screws.
®
CALIBER
952-985-9999
www.caliberproductsinc.com
CALIBER
®
V-Front Ramp Shield
Installation Instructions for Part No. 13404

HARDWARE INCLUDED:

Qty
Description
3
33 Pack of Stainless Truss Head Phillips Screws
6
1/2" Stainless Pins (2pc. 10-3/4" & 4pc. 6") w/ End Caps
12
5/16"x 2-1/2 SS Bolts, (24) washers and 12 lock Nuts
12
1/4"x2-1/2" SS Lag Screws, 36 washers and 12 lock washers
1
Rubber Retainer Strap
8
1/4" x1-1/2" SS Lag Screws and 8 washers
6
Aluminum Brackets
1
TM
CI5009
