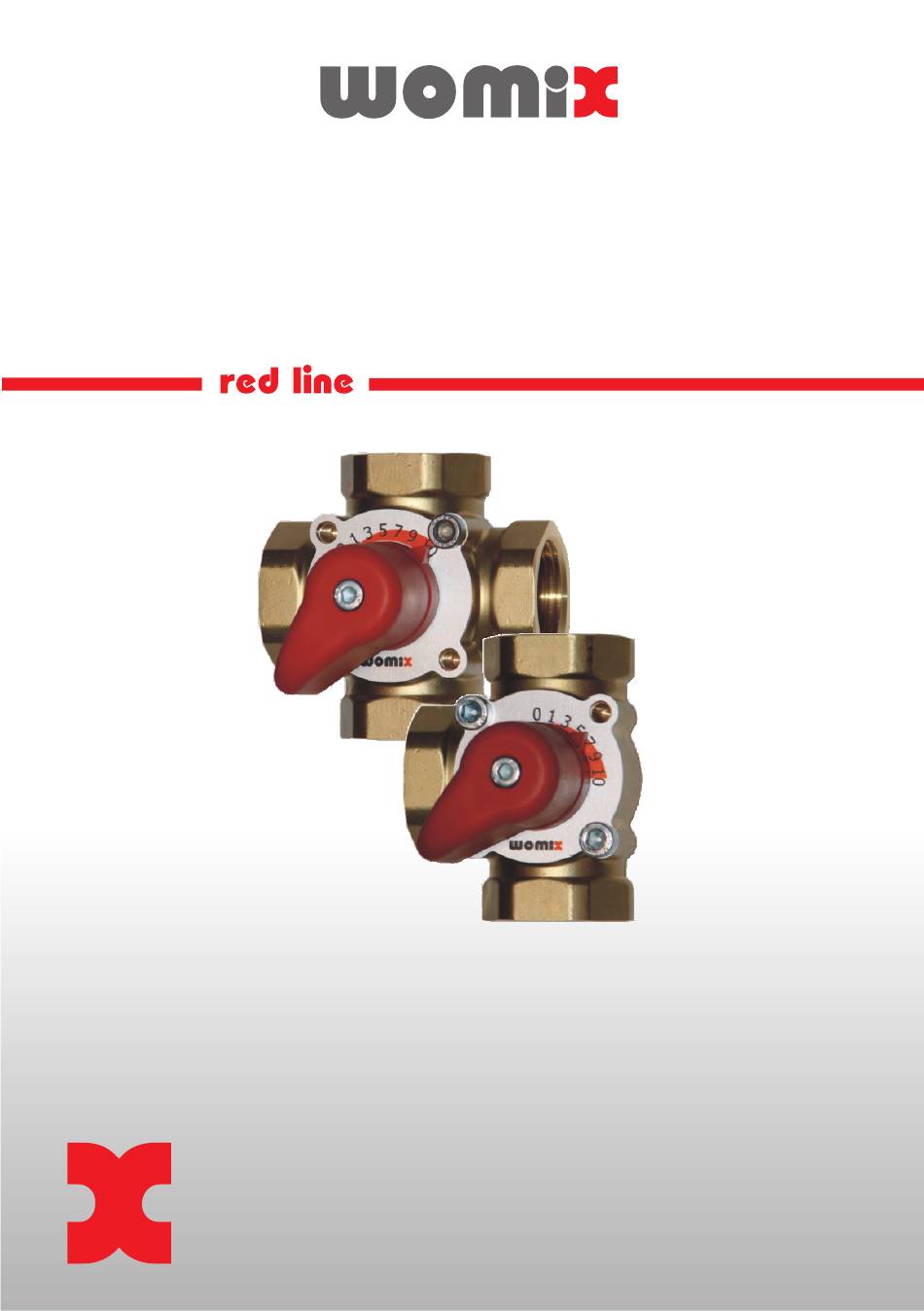

- Page 1 Mixing valve MIX M Mounting and Operating Instructions WOMIX Ul. Elizy Orzeszkowej 11 89-200 Szubin tel./fax +48 52 382 44 50 fax +48 52 382 44 51 www.womix.com.pl e-mail: biuro@womix.com.pl...
- Page 2 Introduction Thank you for your trust in our company and for purchasing energy-efficient mixing valve MIX M from WOMIX. This product will serve you for years and significantly influence the energy efficiency of heating. Mixing valve MIX Three-way mixing valve MIX M 3 is used in central heating systems.
- Page 3 Examples of apalications 3-Ways mixing Valle Diagrams and scale setting Basic settings View valve head 3-Ways mixing Valle 4-Ways mixing Valle Examples of apalications 4-Ways mixing valve Diagrams and scale setting Basic settings...
