Page 1: User Manual

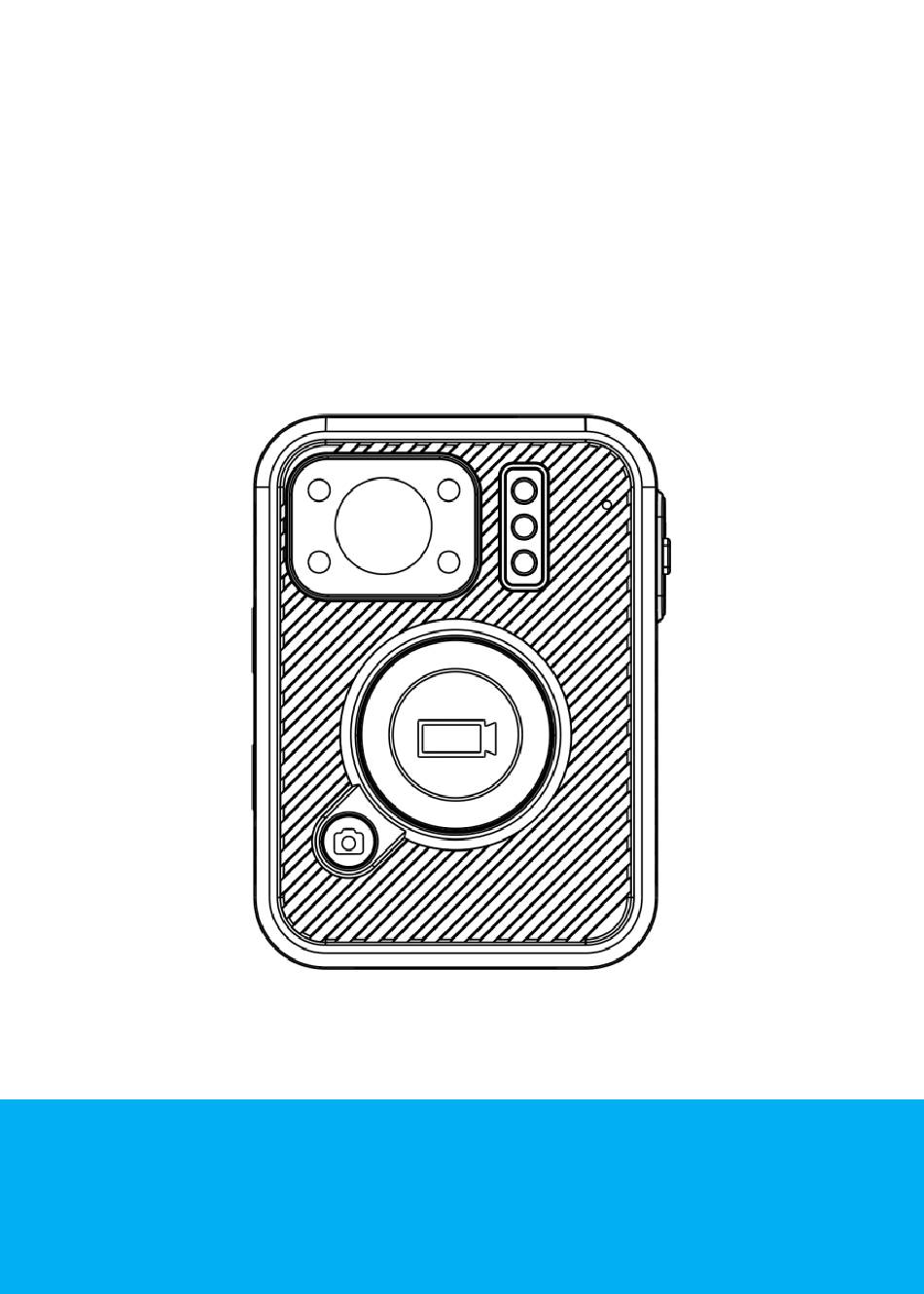

EH220 User Manual Body Worn Video and Audio Recorder Thanks for your purchasing. This camera is specially designed for video recording and photo taking. Please read the user manual before using it. - Page 2 Body Camera Exterior Overview...
- Page 3 Item Description # Show camera status like battery, storage, WIFI, GPS, resolution and IR. 1. LCD Screen # Press power button to turn on/off LCD backlight. 2. Charging dock Connect charging dock for charging or connector connecting PC Provide infrared light compensation in low light 3.
- Page 4 For charging or connection to PC 10. USB Port PS: connects to external camera, optional a) Press to turn on/off infrared lights when infrared lights are in manual mode. 11. Fn Button b) When camera is in standby mode, hold 3 seconds to turn on/off WIFI.
- Page 5 How To Operate Power on/off and Standby Mode Hold the power button for 3 seconds to turn the camera on. Camera will enter standby mode. Hold for 3 seconds again to turn off the camera. Video Recording When the camera is in standby mode, press the REC button to start video recording.
- Page 6 LCD Screen LCD screen overview: IR icon : When the IR Infrared light has been turned on, IR icon will turn red. Mute icon : When the mute function is triggered, mute icon will show a red cross. WIFI icon : When WiFi has been turned on, WiFi icon will turn blue.
- Page 7 Video recording icon : When video recording starts, the red dot will start flashing. When the camera is in standby mode, the red dot will be solid red. Recording time : The time by HHH:MM:SS indicates the video recorded time. LED Indication Charging indication LED: Blue: Charging Status...
- Page 8 Reset RESET BUTTON is inside the USB port. Press the RESET BUTTON when the camera freezes up or works abnormally. Note: When the cameras battery level goes to 5%, it will prompt voice alarm: LOW BATTERY, LOW BATTERY … … When the cameras memory level descends to 200MB, the camera will prompt a voice alarm: CARD FULL, CARD FULL …...
- Page 9 Camera Setting 1. Install BodyWornCamera.exe (download from website) in your computer. 2. Connect the camera to computer and run BodyWornCamera.exe. PS: Make sure the camera is not in recording mode or pre-recording mode before connecting camera to computer. You can find “discover device access”...
- Page 10 3. Enter password and connect device, then click “login”. PS: default password is 000000. 4. Synchronising date and time: click “get” and then “set”. 5. Changing Device/Police ID: enter Device/Police ID and click “set”. 6. Password setting: Enter old password, new password and confirm password and then click “Modify”.
- Page 11 Setting Description Options 2560×1440 30P 2304×1296 30P Resolution The image resolution for video 1920×1080 30P 1280×720 30P 848×480 30P While recording video, the camera will Video split 5 min, 15 min, automatically split its recording into files time 30 min of this length.
- Page 12 The volume of camera speaker. This affects the loudness of video playback, audio playback, the key tone, record Volume 0,3,6,9,12 warning, and any other sounds played by camera. This doesn't affect the volume of the recorded video or audio files themselves.
- Page 13 After you change the settings, click “set and return” to go back to previous interface. 8. Review the recorded files Press Enter U disk to mount the camera as mass storage in computer. PS: you will hear a sound from computer announcing camera is under U disk mode.
