HEDÜ L223 Operator's Manual

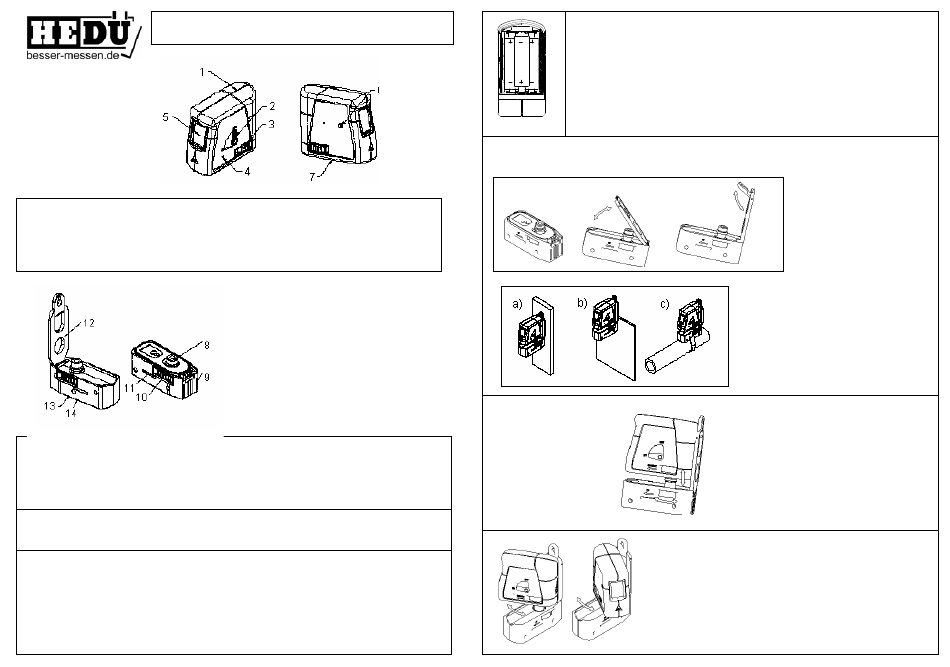

Operators Manual Laser Cross Level L223
1 – Battery compartment cover
2 – ON/OFF-Switch
3 – Thumbwheel
4 – Power indicator lamp
12
8 – Elevating screw
9 – Magnets
10 – Elevating thumbwheel
11 – Slot for fixing strap
Kit consists of: Instrument, multi-functional mount, 3 x AA battery,
magnetic laser target, fixing strap, bag, operators manual.
Take special care:
1 - DO NOT STARE INTO BEAM.
2 - Don't knock, drop and heat the unit. Do not use in rain.
3 - Transport only in original bag.
Ensure that the unit is powered off at transport.
4 - Clean instrument with soft cloth.
5 - Recheck instrument at regular intervals and before important measurements.
5- Laser emitting window
6- Side calibration hole
7 – 5/8" nut (connection to multi-
functional mount)
Multi-functional mount
12 – Hanging board
13 – 5/8" nut for connection to
builders' tripod
14 – 1/4" nut for con. to camera tripod
Use of FL40-Pocket:
- Open the battery compartment cover "1" and put in 3 AA batteries
as per figure (take care of correct polarity).
- Place the unit on a platform or tripod.
- Switch the unit on. A cross line will be projected.
- A visual alarm (blinking lines) indicates that the unit was set up
outside of compensator range. Set it up on a more even surface!
Multi-functional mount:
Remove the laser by moving the thumbwheel "3" counter-clockwise (release).
Set the unit back to the
Height adjustment:
The unit can be
moved up and down
within a range of
15 mm.
Horizontal rotation:
L223 can be rotated by 90° to the left and
90° to the right on the mount.
Unfold hanging board.
Set the unit back to the
multi-functional mount
and move the thumb-
wheel "3" clockwise
(connect).
b) Fix the mount to a wall by use
of a screw or nail.
b) Attach it to a metal plate by use
of the built-in magnets "9".
c) Fix it to a pipe by use of the
fixing strap.
Move elevating
thumbwheel "10"
in direction
"up" or "down"
as indicated on the
mount.
