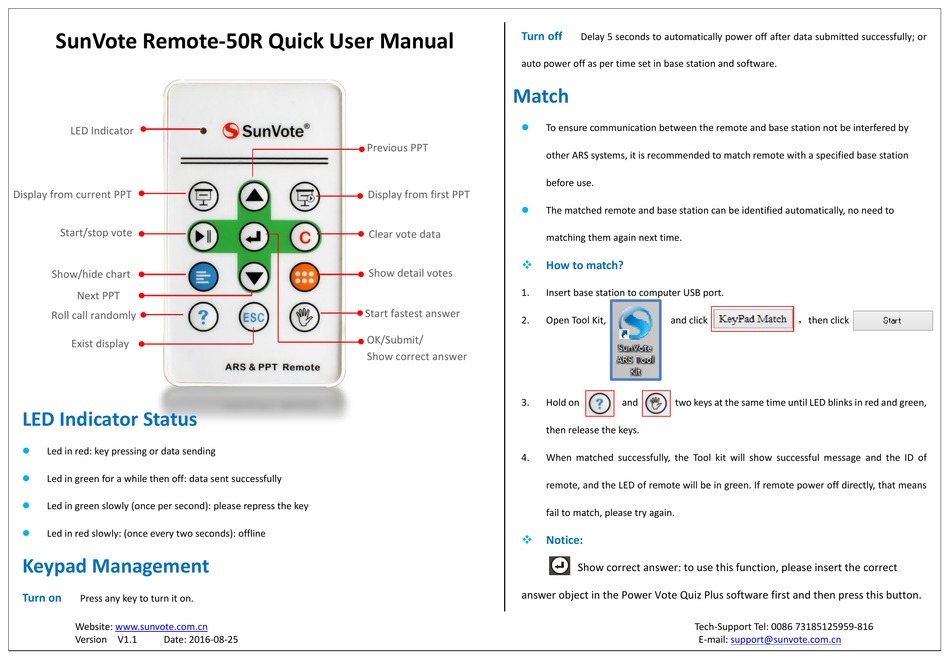

SunVote Remote-50R Quick User Manual

SunVote Remote-50R Quick User Manual
LED Indicator
Display from current PPT
Start/stop vote
Show/hide chart
Next PPT
Roll call randomly
Exist display

LED Indicator Status


Led in red: key pressing or data sending

Led in green for a while then off: data sent successfully

Led in green slowly (once per second): please repress the key

Led in red slowly: (once every two seconds): offline

Keypad Management

Turn on

Press any key to turn it on.
Website: www.sunvote.com.cn
Version V1.1 Date: 2016-08-25

Turn off

auto power off as per time set in base station and software.

Match


Previous PPT
Display from first PPT

Clear vote data

Show detail votes
1.
Start fastest answer
2.
OK/Submit/
Show correct answer
3.
4.

answer object in the Power Vote Quiz Plus software first and then press this button.
Delay 5 seconds to automatically power off after data submitted successfully; or
To ensure communication between the remote and base station not be interfered by
other ARS systems, it is recommended to match remote with a specified base station
before use.
The matched remote and base station can be identified automatically, no need to
matching them again next time.

How to match?

Insert base station to computer USB port.
Open Tool Kit, and click
Hold on and two keys at the same time until LED blinks in red and green,
then release the keys.
When matched successfully, the Tool kit will show successful message and the ID of
remote, and the LED of remote will be in green. If remote power off directly, that means
fail to match, please try again.

Notice:

Show correct answer: to use this function, please insert the correct
Tech-Support Tel: 0086 73185125959-816
E-mail:
，then click
