UltraMixer Midi Specifications

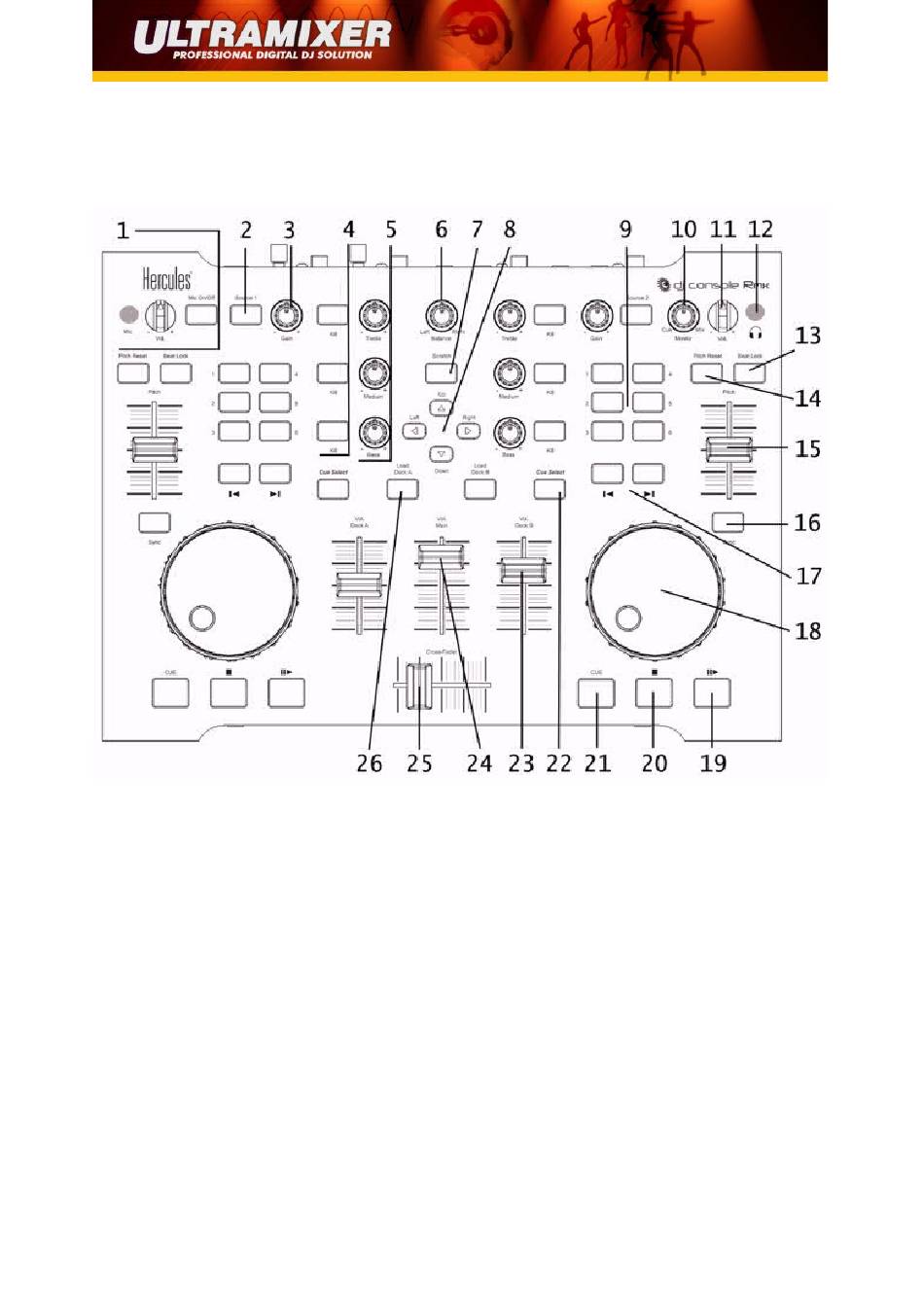

UltraMixer Hercules DJ Console RMX Midi Mapping:
1. ¼" microphone input, microphone volume knob and Mic On/Off button
Mic On/Off-Button activates the manual Talkover of UltraMixer
●
2. Source button: press to select left or right player
this is the selection for the balance-controller (panning on the left or right player)
●
3. Gain button: increase or decrease the music level on each deck
4. Kill buttons: press to cut out/restore treble, medium and bass frequencies, respectively
5. EQ knobs: adjust treble, medium and bass frequencies
6. Balance knob: adjust the stereo balance of a player (see Pan knobs in UltraMixer)
left/right player switchable through the "Source"-Buttons
●
7. Scratch button: breaks the Player or spins it up (Break-Effekt)
1
