INSTALLING THE NETRONIX
GSM/GPS COMMUNICATION MODEM INTO
DUSTTRAK
This guide will help you quickly install the Netronix™
Thiamis™ GSM/GPS Communication Modem onto the
various DustTrak™ Environmental Monitors.

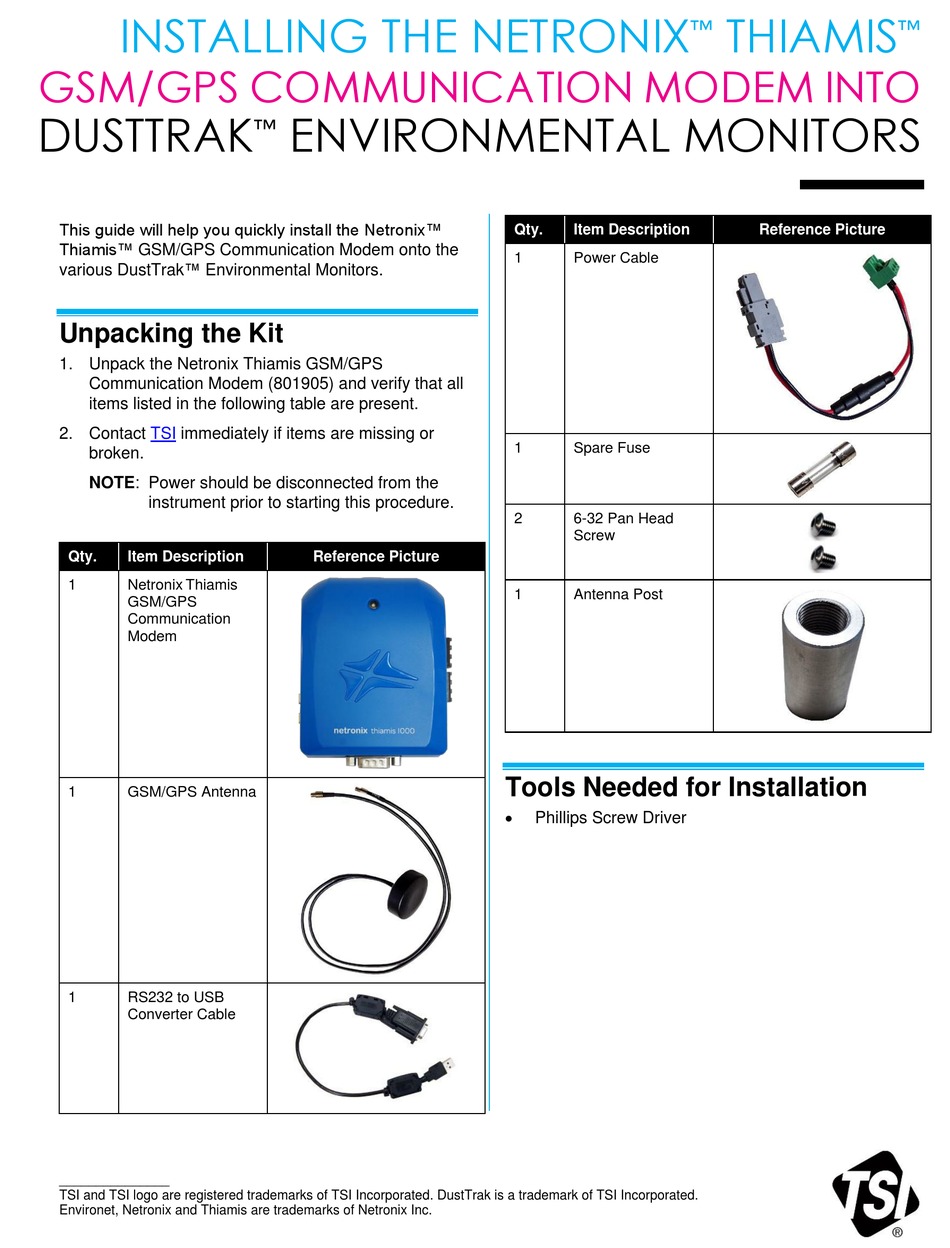

Unpacking the Kit
1. Unpack the Netronix Thiamis GSM/GPS
Communication Modem (801905) and verify that all
items listed in the following table are present.
2. Contact
TSI
immediately if items are missing or
broken.
NOTE: Power should be disconnected from the
instrument prior to starting this procedure.
Qty.
Item Description
1
Netronix Thiamis
GSM/GPS
Communication
Modem
1
GSM/GPS Antenna
1
RS232 to USB
Converter Cable
_______________
TSI and TSI logo are registered trademarks of TSI Incorporated. DustTrak is a trademark of TSI Incorporated.
Environet, Netronix and Thiamis are trademarks of Netronix Inc.
ENVIRONMENTAL MONITORS
™
Reference Picture
Qty.
Item Description
1
Power Cable
1
Spare Fuse
2
6-32 Pan Head
Screw
1
Antenna Post
Tools Needed for Installation
Phillips Screw Driver
THIAMIS
™
Reference Picture
™
