Summary of Contents for HIMA HIMatrix H 7033

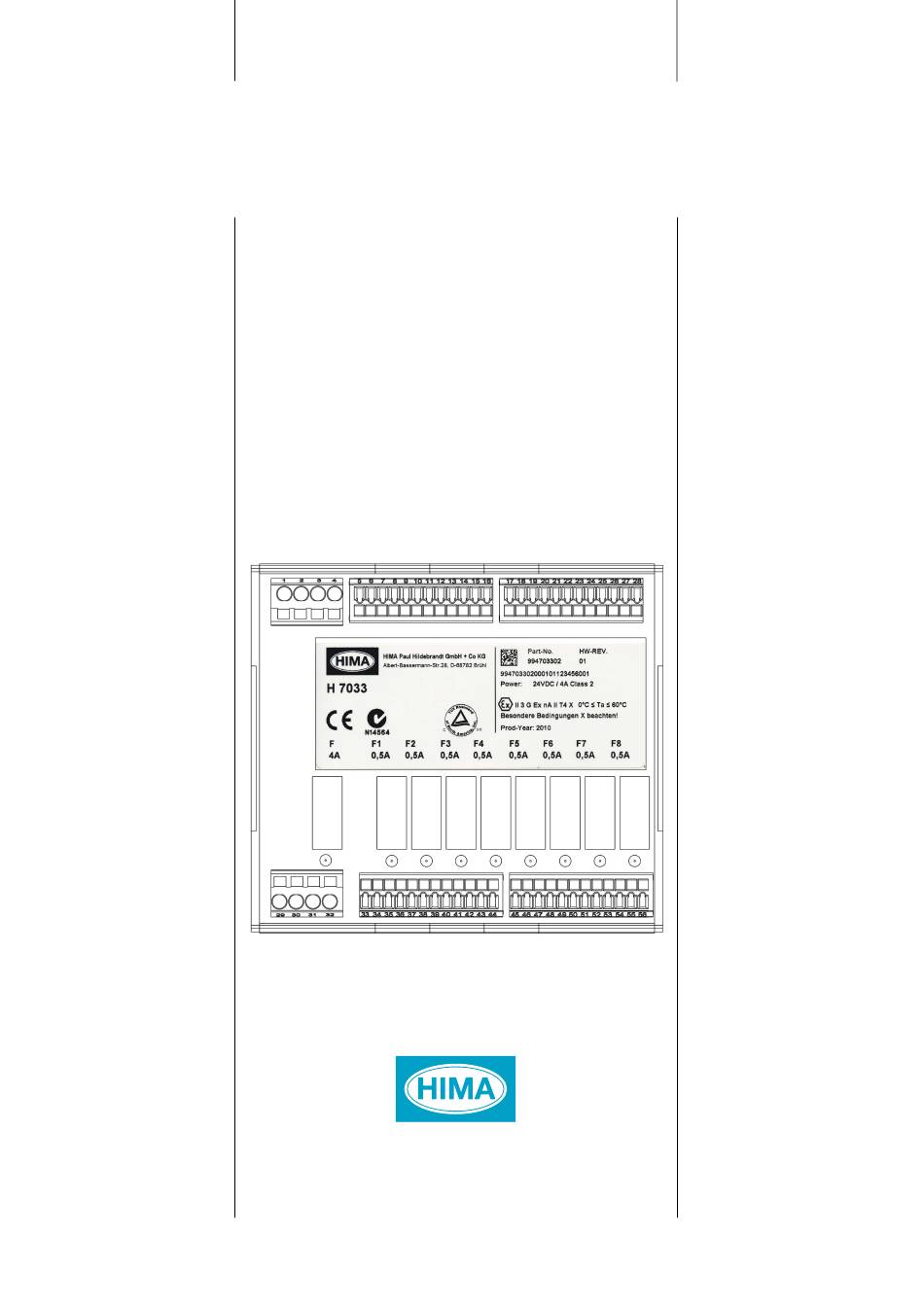

- Page 1 Industrial Automation HIMatrix System Manual H 7033 Three-Wire Transmitter Supply HIMA Paul Hildebrandt GmbH + Co KG Industrial Automation HI 800 417 BEA...
- Page 2 For this reason, HIMA offers no warranties and assumes no legal responsibilities or liabilities for the potential consequences of any errors in this manual. HIMA appreciates any information concerning possible errors.
-
Page 3: Table Of Contents
H 7033 Table of Contents 1 HIMatrix Three-Wire Transmitter Supply H 7033....4 Introduction ..................4 1.1.1 Terminal Description for H 7033 ..........5 1.1.2 PIN Assignment for Three-Wire Transmitter Supply....6 Operation ..................7 1.2.1 Monitoring of the Transmitter Supply Voltage U ......7 Specifications H 7033 ...............8 Mounting the H7033 in Zone 2 ............9 3 von 10... -
Page 4: Himatrix Three-Wire Transmitter Supply H 7033
HIMatrix H 7033 HIMatrix Three-Wire Transmitter Supply H 7033 HIMA Part no.: 99 4703302 Introduction H 7033 is a series connection unit for the modular MI 24 01 module of the HIMatrix F60 and supplies the connected three-wire transmitters with external supply voltage. -
Page 5: Terminal Description For H 7033
HI 800 417 BEA HIMatrix H 7033 1.1.1 Terminal Description for H 7033 Designation Function (analog inputs) Cross-section L+, L- Power supply H 7033 2.5 mm² S1...S8 Transmitter supply three-wire transmitter 1.5 mm² Transmitter ground 1.5 mm² INT1...INT8 Analog transmitter input 1.5 mm²... -
Page 6: Pin Assignment For Three-Wire Transmitter Supply
HI 800 417 BEA HIMatrix H 7033 1.1.2 PIN Assignment for Three-Wire Transmitter Supply Signal Signal IMI1 IMIH1 INT1 IMI2 IMIH2 INT2 IMI3 IMIH3 INT3 IMI4 IMIH4 INT4 IMI5 IMIH5 INT5 IMI6 IMIH6 INT6 IMI7 IMIH7 INT7 IMI8 IMIH8 INT8... -
Page 7: Operation
HI 800 417 BEA HIMatrix H 7033 Operation To operate the H 7033, set the following parameters: • In ELOP II Factory/SILworX, set transmitter supply of the module MI 24 01 MI[xx].Transmitter Used to "FALSE". • Set the power supply (L+) H 7033 to the following value:... -
Page 8: Specifications H 7033
HI 800 417 BEA HIMatrix H 7033 Specifications H 7033 Three-Wire Transmitter Supply Supply voltage (L+) 24...30 VDC, PELV, SELV regulated Class 2 Current consumption max. 4 A Transmitter supply (three-wire transmitter) Transmitter supply U Voltage between S and INT Current (transmitter supply) max. -
Page 9: Mounting The H7033 In Zone 2
(EC Directive 94/9/EC, ATEX) If the special conditions X are observed, the H 7033 device may be installed in Zone 2. The corresponding EC declaration of conformity is available on the HIMA website. Special Conditions X Mount the device in an enclousure (cabinet) that meets the EN / IEC 60079-15 requirements and achieves a type of protection of at least IP54 (category 1) in accordance to EN / IEC 60529. - Page 10 HIMA ...the safe decision. HIMA Paul Hildebrandt GmbH + Co KG Industrial Automation P.O. Box 1261 • 68777 Brühl Telephone: +49 6202 709-0 • Fax: +49 6202 709-107 E-mail: info@hima.com • Internet: www.hima.com (1043)
