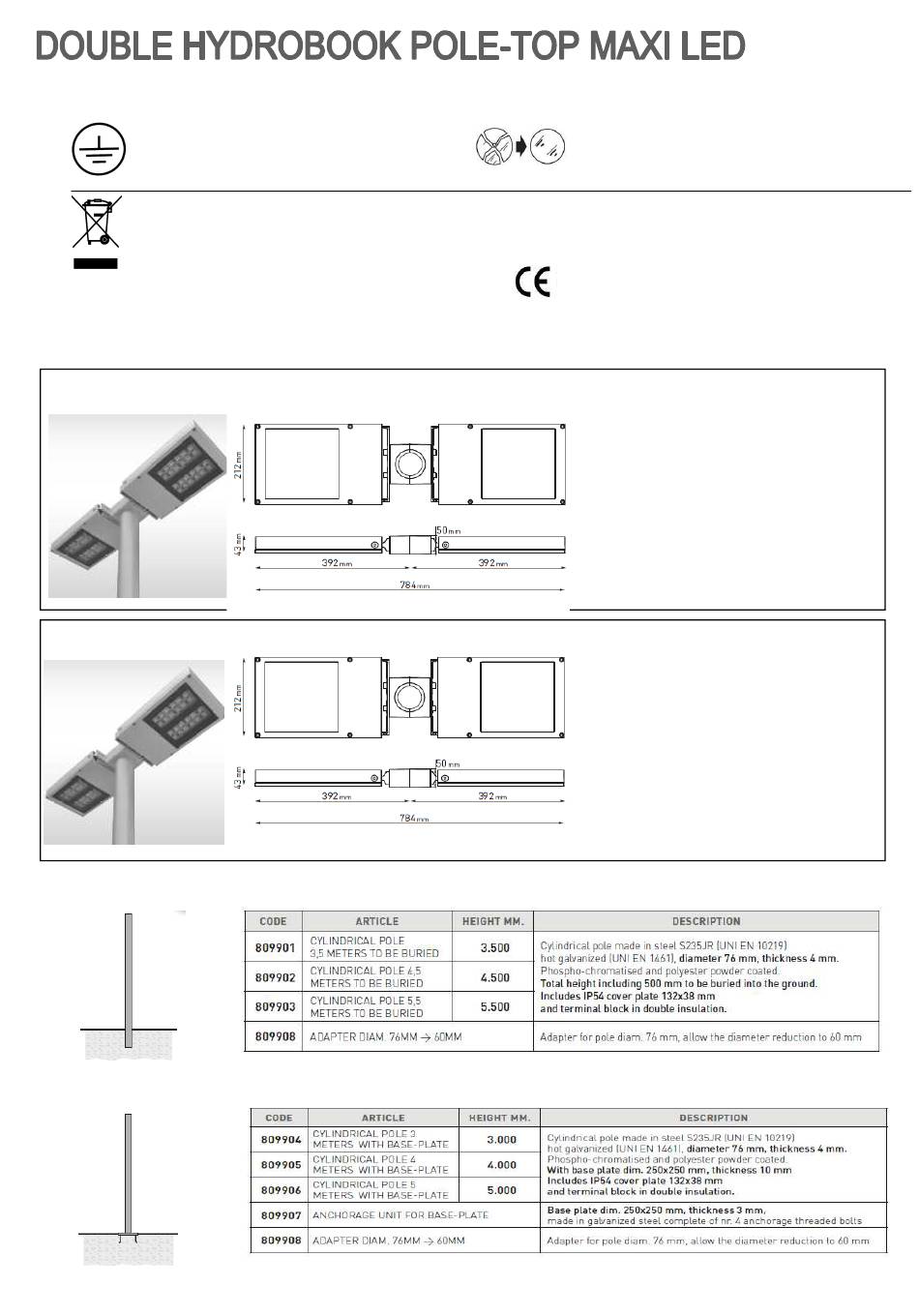

PUK HYDROBOOK POLE-TOP MAXI 12 LED Assembly And Operating Instructions

ASSEMBLY AND OPERATING INSTRUCTIONS: ASSEMBLY AND OPERATING INSTRUCTIONS: ASSEMBLY AND OPERATING INSTRUCTIONS: ASSEMBLY AND OPERATING INSTRUCTIONS:
-class I luminaire with built-in transformer 220-240V 50-60Hz
-apparecchio in classe 1 con trasformatore incorporato a 220-240V
50-60Hz
-getting rid of as urban waste forbidden
-separate collection is mandatory when the product is at the end of its life
-è vietato lo smaltimento come rifiuto urbano
-è obbligatoria la raccolta separata a fine vita del prodotto
NB: These assembly instructions must be given to end users for correct maintenance and so that they know how to change the bulb.
The appliance must not be tampered with or transformed and it must be installed and used as supplied and in compliance with the
National Rules on Installations. Any non-compliant installations will invalidate all forms of guarantee. The company cannot be held
responsible for damage caused by incorrect assembly.
COD. 803003 COD. 803003
COD. 803003 COD. 803003
COD. 803004 COD. 803004 COD. 803004 COD. 803004
BURIED POLES BURIED POLES BURIED POLES BURIED POLES
POLES WITH BASE POLES WITH BASE POLES WITH BASE POLES WITH BASE-PLATE PLATE PLATE PLATE
-replace the damaged protective glass
-sostituire i vetri di protezione se danneggiati
-glass features: plane float glass - safety tempered
-caratteristiche vetro: vetro piano float di sicurezza temperato
-totally dust-proof , protected against the water
IP65
-totalmente protetto contro la polvere , e ail'acqua
Made in Italy
HYDROBOOK POLE-TOP MAXI 12LED
-Power consumption : 2X18W
-Voltage :220-240V 50-60Hz
-Color Temperature : 3000K WARM WHITE
or other available 4000K or Blue
-Beam angle : cycle route pedestrian
(narrow) or street (medium wide)
-Lumen output : 2X1728
-Insulation class: I
-IP protection: IP65
-Gross weight: 5.8kg
HYDROBOOK POLE-TOP MAXI 24 LED
-Power consumption : 2X36W
-Voltage :220-240V 50-60Hz
-Color Temperature : 3000K WARM WHITE or
other available 4000K or Blue
-Beam angle : cycle route pedestrian (narrow)
or street (medium wide)
-Lumen output : 2X3456
-Insulation class: I
-IP protection: IP65
-Gross weight: 5.8kg
COD. 803003 COD. 803003 COD. 803003 COD. 803003
COD. 803004 COD. 803004 COD. 803004 COD. 803004
