Ford Rear Seat Entertainment System Quick Start Manual

To Operate
How to Play a Video Cassette Tape
Your system audio defaults to wireless
headphones. To play the system audio over
your vehicle's speakers:
1. Slide the frequency switch from the OFF
position to position 1 (88.7 MHz) or
position 2 (89.1 MHz).
2. Turn the audio system ON and tune the
radio to 88.7 or 89.1 depending on where
you set the frequency switch in step 1.
3. Press the POWER control on the video
display unit.
4. Insert a VHS videocassette into the VCP,
and the video should start playing.
Do not force the tape into the VCP while the ignition is OFF.
POWER
BRIGHTNESS
SENSOR
After Using your Rear Seat Entertainment system:
•
To resume normal AM/FM radio operation, slide the frequency switch to the
off position. Rotate the flip-down screen up into the housing for storage when
not in use.
How To Get Going
VOLUME SELECT
AV1 AV2
FREQUENCY
OFF 1 2
To Play a Video Game
How to Use Auxiliary Inputs
Your system is capable of accepting other
auxiliary inputs such as video games or
camcorders. These may require a
12-volt DC to 120-volt AC power inverter.
•

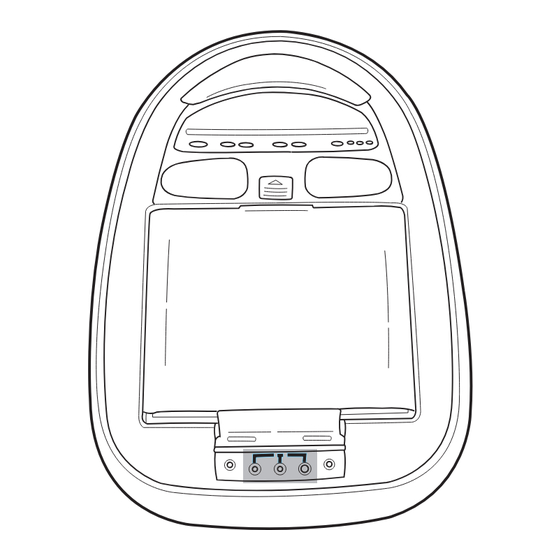

Remove the black plastic cover at the
back of the overhead video display unit.
•
Connect the video line from your video
game device to the YELLOW jack on the
overhead video display unit.
•
Connect the left and right audio cables
to the WHITE and RED jacks
respectively on the overhead video
display unit.
•
Press the select switch on the video
display unit. The AV2 indicator will
illuminate.
•
Turn on the game.
