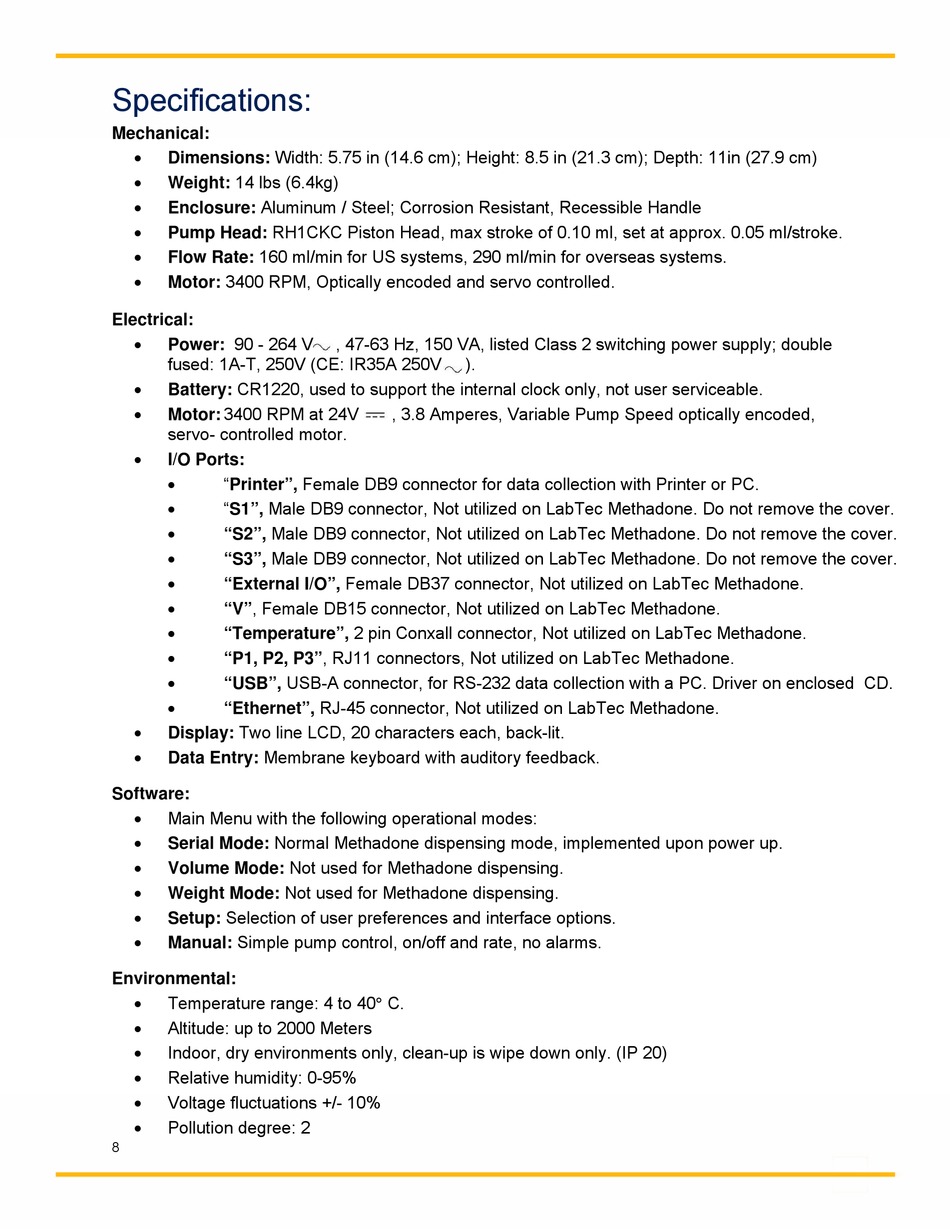

Specifications:

Mechanical:

Dimensions: Width: 5.75 in (14.6 cm); Height: 8.5 in (21.3 cm); Depth: 11in (27.9 cm)

Weight: 14 lbs (6.4kg)

Enclosure: Aluminum / Steel; Corrosion Resistant, Recessible Handle

Pump Head: RH1CKC Piston Head, max stroke of 0.10 ml, set at approx. 0.05 ml/stroke.

Flow Rate: 160 ml/min for US systems, 290 ml/min for overseas systems.

Motor: 3400 RPM, Optically encoded and servo controlled.
Electrical:

Power: 90 - 264 V
fused: 1A-T, 250V (CE: IR35A 250V

Battery: CR1220, used to support the internal clock only, not user serviceable.

Motor: 3400 RPM at 24V
servo- controlled motor.

I/O Ports:

"Printer", Female DB9 connector for data collection with Printer or PC.

"S1", Male DB9 connector, Not utilized on LabTec Methadone. Do not remove the cover.

"S2", Male DB9 connector, Not utilized on LabTec Methadone. Do not remove the cover.

"S3", Male DB9 connector, Not utilized on LabTec Methadone. Do not remove the cover.

"External I/O", Female DB37 connector, Not utilized on LabTec Methadone.

"V", Female DB15 connector, Not utilized on LabTec Methadone.

"Temperature", 2 pin Conxall connector, Not utilized on LabTec Methadone.

"P1, P2, P3", RJ11 connectors, Not utilized on LabTec Methadone.

"USB", USB-A connector, for RS-232 data collection with a PC. Driver on enclosed CD.

"Ethernet", RJ-45 connector, Not utilized on LabTec Methadone.

Display: Two line LCD, 20 characters each, back-lit.

Data Entry: Membrane keyboard with auditory feedback.
Software:

Main Menu with the following operational modes:

Serial Mode: Normal Methadone dispensing mode, implemented upon power up.

Volume Mode: Not used for Methadone dispensing.

Weight Mode: Not used for Methadone dispensing.

Setup: Selection of user preferences and interface options.

Manual: Simple pump control, on/off and rate, no alarms.
Environmental:

Temperature range: 4 to 40 C.

Altitude: up to 2000 Meters

Indoor, dry environments only, clean-up is wipe down only. (IP 20)

Relative humidity: 0-95%

Voltage fluctuations +/- 10%

Pollution degree: 2
8
, 47-63 Hz, 150 VA, listed Class 2 switching power supply; double
).
, 3.8 Amperes, Variable Pump Speed optically encoded,
