IDENTIFICATION OF CONTROLS AND CONNECTIONS
1 ANTENNA CONNECTOR
2 TELEPHONE JACK
WARNING: DO NOT connect the Quick Talk to a line
from the telephone company
3 BATTERY HOLDER
NOTE: ALWAYS INSTALL A FRESH SET of alkaline
batteries before programming the unit.
4 SWITCH #1 TERMINALS
5 SWITCH #2 TERMINALS
IMPORTANT: Do not remove any other fasteners or
further disassemble the Quick Talk unit; doing so risks
damage to the unit and voiding the manufacturer's warranty.

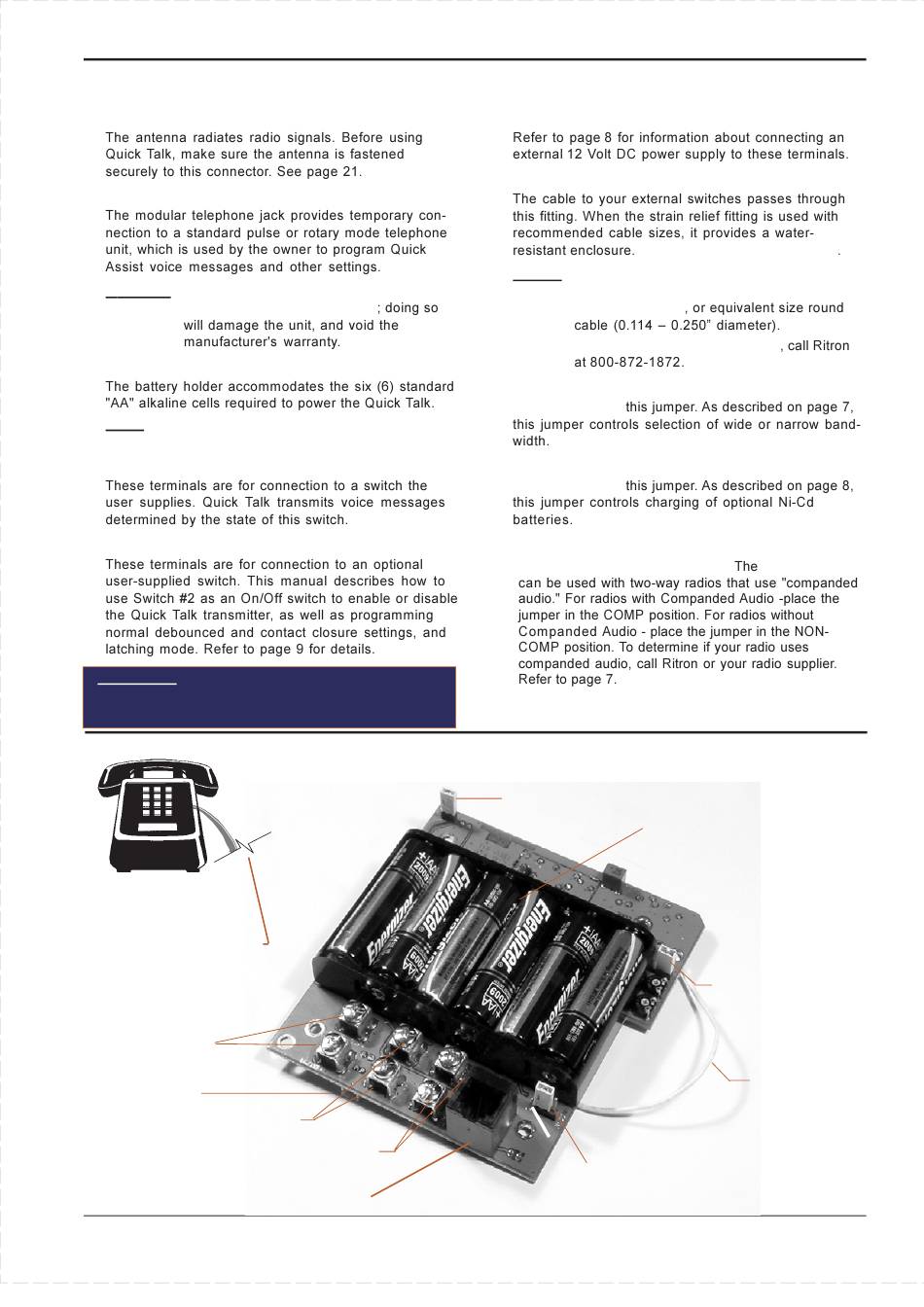

FIG-1: CONTROL & CONNECTION LOCATIONS
O
WNER
D
ESK
SWITCHED TO
M
O D E
O - M
WNER SUPPLIED ODULAR
T C :
ELEPHONE ORD
DO NOT
CONNECT TO
,
TELEPHONE LINE BUT TO A
.
TELEPHONE SET ONLY
6
External Power
Input Terminals
7
Customer Service
Push-button
Connection
4
Switch #1
Terminals
Page 2 For assistance, call RITRON at 800-872-1872, or go to www.ritron.com
All manuals and user guides at all-guides.com
- S
S U P P L I E D TANDARD
T S ,
ELEPHONE ET
P D
ULSE IALING
Q T
TO UICK ALK
,
TELEPHONE JACK
(I 2).
TEM
5
Switch #2
Terminals
2
Standard
Modular
Telephone Jack
6 EXTERNAL POWER TERMINALS
7 WATERTIGHT STRAIN RELIEF CABLE FITTING
Do not overtighten this fitting
NOTES: Use Radio Shack Telephone Station Wire,
6-conductor, solid 24-AWG In-wall Type CM,
Cat. No. 278-874
If you cannot find suitable wire
8 TRANSMITTER BANDWIDTH SELECT JUMPER
DO NOT remove
9 BATTERY TYPE SELECT JUMPER
DO NOT remove
10. COMPRESSED/NOT-COMPRESSED AUDIO SELECTOR
Do not remove this jumper.
9
Battery Type Selector
3
Battery
Holder
10
Compressed/Not-Compressed
Audio Select Jumper
Quick Talk
8
Transmitter Bandwidth
Select Jumper
1
Antenna Co-Axial
to BNC Connector
