Summary of Contents for Trivest Beep VU WiFi NVR Kit

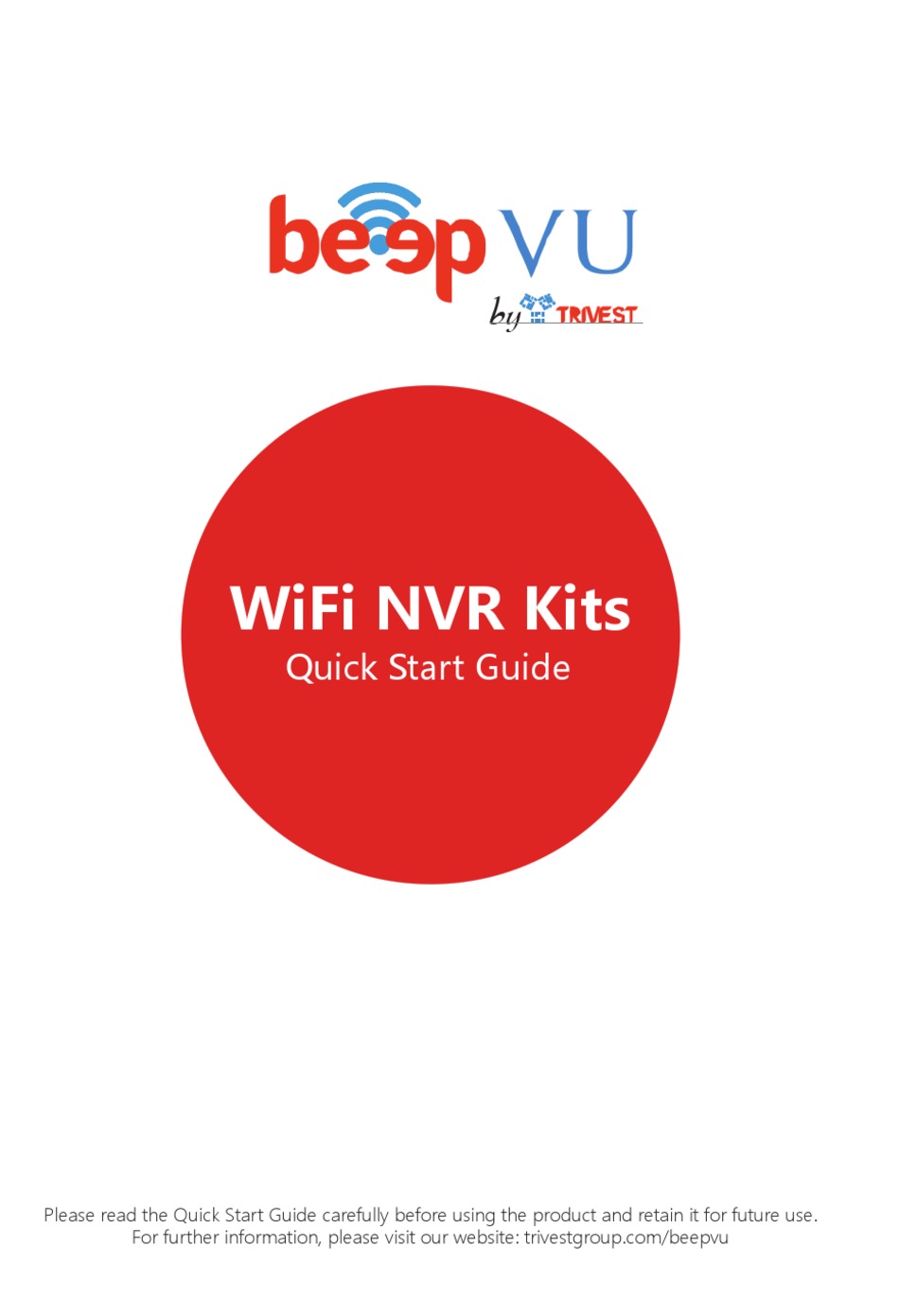

- Page 1 WiFi NVR Kits Quick Start Guide Please read the Quick Start Guide carefully before using the product and retain it for future use. For further information, please visit our website: trivestgroup.com/beepvu...
-
Page 2: Safety Precautions
Declaration Thank you for purchasing our products. If you have any questions or clarifications, please contact us. This manual is for WiFi NVR Kits ( wireless NVR & wireless cameras). It is subject to periodic updates at our discretion and new versions may not be specifically obvious. In the event this manual differs from your product, please contact us for further information/updates. - Page 3 Products Appearance Description Below are key parts of your NVR device, for easy identification. Antenna Antenna Audio Output Power input port Notes：Images are for guidance only. The actual product may differ in some regards from those shown. WiFi NVR Kits Quick Installation Guide This WiFi NVR Kit requires no communication cable, no complex set up, but offers easy plug and play installation, wireless communication using automatic passwords generation mechanism to ensure that the video will be not ‘”tapped”...
- Page 4 2. Make sure WiFi NVR Kits is working well. Connect NVR to a monitor, and ensure all devices are powered on. Cameras auto-pair with NVR. No complex settings needed. When all the IPC videos appear on the display, the device is working normally and is ready for the next steps.
- Page 5 Ideal Installation Mode Correct demonstration ....Figure 1 Not Suggested Suggested Figure 2-1 Figure 2-2...
-
Page 6: System Login
System login Start up the NVR, right click the desktop and enter the user login interface. Input the user name and password. System default - username : “admin”, password: “12345”. Preview Enter preview interface after device start up. Preview interface include date and time of system, and channel name. -
Page 7: Recording Setting
Shortcut menu introduction Right click to popup Shortcut menu. The menu consists of the following three parts: Preview mode: Select the preview mode of your choice in the menu bar. Shortcut menu mode: Choices are Poll, Record, Add Camera, NVR image. You may click and then enter corresponding menu directly. - Page 8 2. Enter “Record” interface to set recording from shortcut “Record” menu or main menu “Storage”. Default setting is all channels are recorded 24 hours a day. 3. Motion Detection Setting: Enable “Motion” to activate motion recording. Motion sections have no more than 6 time periods each day.
- Page 9 Playback Enter “Playback” interface by clicking “Playback” from shortcut or main menu, select channels and search the recorded files to play back desired footage. (Video playback interface) Note: To improve security, please disable SSID broadcast after the installation is finished. Enter menu “Configuration”-”Network”-”WIFI”-”Advanced”, and uncheck “SSID broadcast”...
-
Page 10: Live View
Live View 1. Enter Live View interface by left clicking shortcut menu “1-win” or “4-win”. It is possible to add single channel or multi-channel on one screen. 2. The default wireless system is factory auto-paired, so no need for any other setting. In case there is no image shown or ESSID and passwords have been changed, please pair the codes first. - Page 11 PC Side LAN Access １. NVR LAN login (the PC and the NVR must be on the same LAN) ① Make sure the recorder and the connected PC (computer) are on the same LAN segment. If not, please set IP address of your PC to be in the same segment as the NVR’s. For example “172.136.123.101”, but it must be different IP from the NVR’s.
- Page 12 2. IPC LAN Login (the PC and the device are on the same LAN) ① Establish LAN connection via network cable between your PC and IPC. Make sure the devices and the connected PC are on the same LAN segment. If your PC is on a different segment, please set IP address of your PC to same segment as the device’s, for example “172.136.123.101”，but it must be different IP from the NVR’s and IPC’s.
- Page 13 Mobile App Access Download and install FreeIP on smart phone by following below guide: 1. In Google PlayStore or iPhone App Store enter “FreeIP” in search field, download and install. 2. Scan the following QR codes to download and install the App. Android 3.
- Page 14 ⑤ ⑥ ⑦ ⑧ ① Click 【Device】to add the device. ② Click the button of the interface【+Add device】, select “ the serial number add” to access the QR code scanning interface. ③ Scan the QR code on the device sticker or poster on the webpage to add the device. ④...
