Douglas Dynamics Western 85200 Operating Instructions Manual

Cabcommand hand-held control for the fleet flex electrical system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WARNING
To prevent accidental movement of the blade,
always push the ON/OFF button to switch the
control OFF whenever the snowplow is not in
use. The power indicator light will turn OFF.

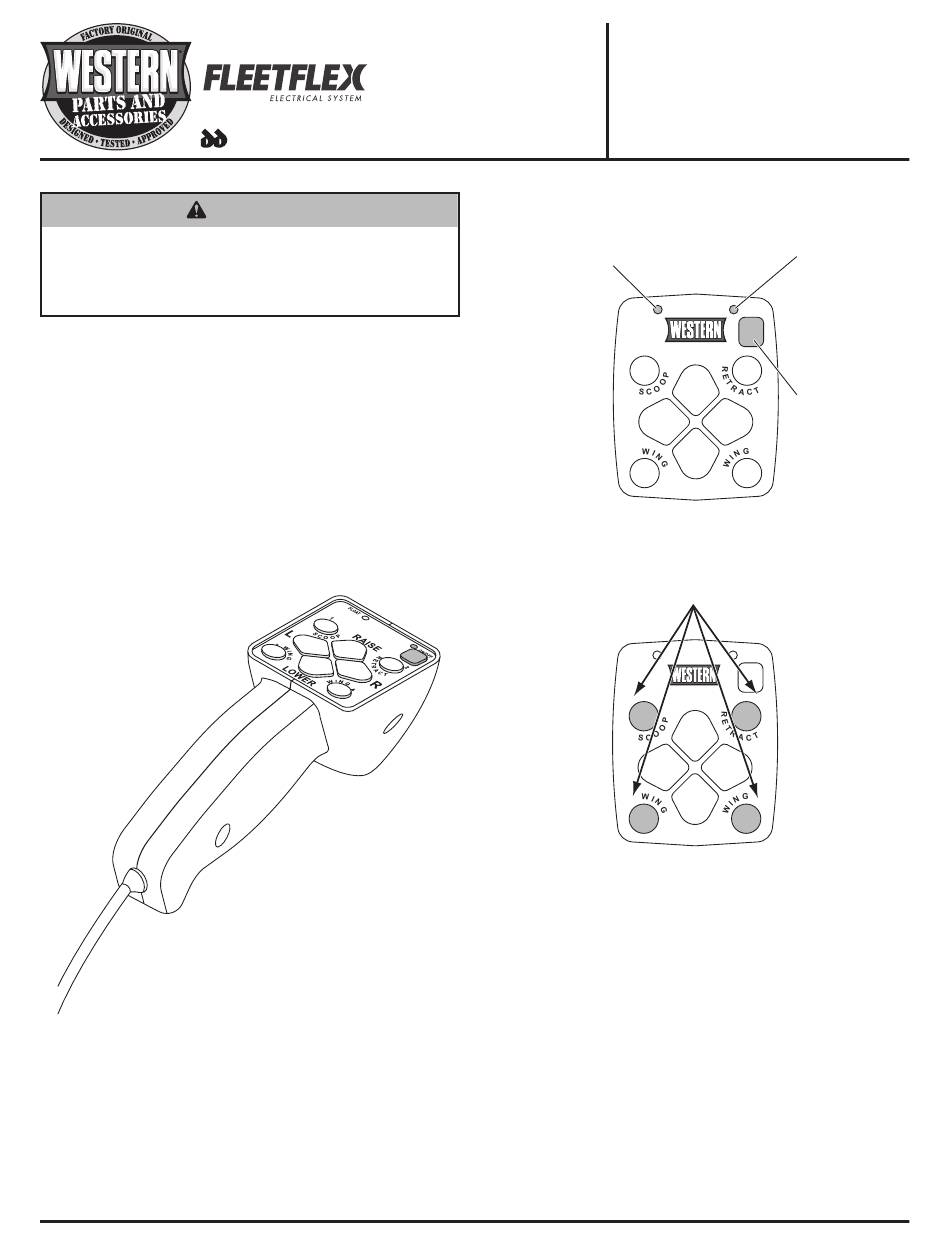

CONTROL OVERVIEW

Each control is equipped with an ON/OFF button and
an indicator light to show when the control is powered
ON or OFF. The controls are powered by the vehicle's
battery, so your vehicle ignition (key) switch must be
ON to use the controls.
Install the control as stated in the Hand‑Held Control
Kit Installation Instructions, and check all snowplow
functions described in the following pages.
Lit. No. 96582, Rev. 00
Western Products
PO Box 245038
Milwaukee, WI 53224‑9538
www.westernplows.com
A DIVISION OF DOUGLAS DYNAMICS, LLC
85200, 96500 – CabCommand
HAND-HELD CONTROL for the
Operating Instructions
FLOAT Light
(green)
FLOAT
1
L
3
Buttons numbered 1, 2, 3, and 4 control
SECURITY GUARD™ System functions.
FLOAT
1
L
3
1
Power Indicator
Light (red)
ON/OFF
RAISE
2
ON/OFF
R
Button
(Emergency
4
Stop)
LOWER
ON/OFF
RAISE
2
R
4
LOWER
April 1, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Western 85200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Douglas Dynamics Western 85200

  • Page 1 85200, 96500 – CabCommand PO Box 245038 HAND-HELD CONTROL for the Milwaukee, WI 53224‑9538 FLEET FLEX Electrical System www.westernplows.com Operating Instructions A DIVISION OF DOUGLAS DYNAMICS, LLC WARNING Power Indicator FLOAT Light To prevent accidental movement of the blade, Light (red) (green)
  • Page 2 85200, 96500 CabCommand HAND-HELD CONTROL OPERATING THE CONTROL Control Functions – Straight Blade Snowplows WARNING FLOAT ON/OFF The driver shall keep bystanders clear of the blade when it is being raised, lowered or FLOAT Light RAISE angled. Do not stand between the vehicle and (green) the blade or within 8 feet of a moving blade.
  • Page 3 85200, 96500 CabCommand HAND-HELD CONTROL Control Functions – Multi-Position Blade Scoop/Retract Blade Positions Snowplows FLOAT ON/OFF FLOAT ON/OFF RAISE FLOAT Light RAISE (green) The two round buttons located to the left and right of the RAISE button move both wings at the same time, into the following blade postions.
  • Page 4 85200, 96500 CabCommand HAND-HELD CONTROL FLEET FLEX ELECTRICAL SYSTEM 4. Once a 4‑digit security code has been established, the SECURITY GUARD system will recognize any control that has been programmed with the same WESTERN snowplows come standard with ® 4‑digit security code. If a control not programmed user‑controlled programmable features.
  • Page 5 85200, 96500 CabCommand HAND-HELD CONTROL Clearing an Established 4-Digit Security Code Additional Notes 1. Turn the vehicle ignition switch to the "ON" or • The SECURITY GUARD system requires any "ACCESSORY" position. control other than the one with the assigned 4‑digit security code to enter the security 2.
  • Page 6 Do not exceed vehicle ratings with a snowplow. Western Products offers a limited warranty for all snowplows and accessories. See separately printed page for this important information. The following are registered ( ) or unregistered (™) ® trademarks of Douglas Dynamics, LLC: SECURITY GUARD™, WESTERN , WIDE‑OUT™. ® Printed in U.S.A.

This manual is also suitable for:

Western 96500
