120V AC
RELAY

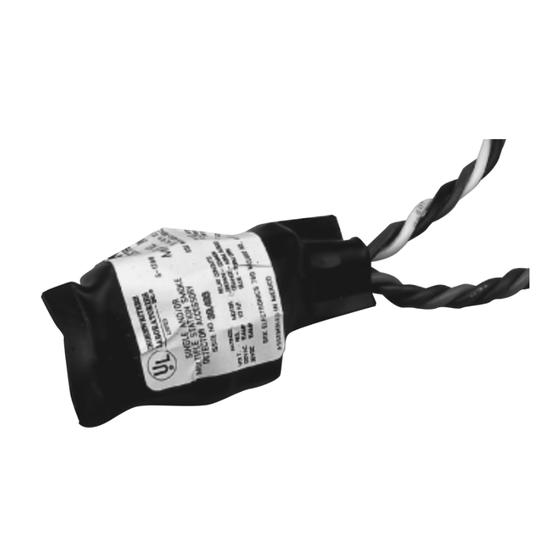

•120V AC powered relay
designed to send the
alarm signal from BRK
smoke and carbon
monoxide alarms to
auxiliary devices, such
as emergency lights,
strobes, bells door
closures, etc.
Features
120V AV relay has Form C contacts that switch between a normally open contact and a normally closed contact, when the alarm alarms
Works with any AC powered BRK smoke or carbon monoxide alarm
Fits in any junction box
See reverse side for wiring diagram
AC
Power
®
BRK
RM3
Relay
www.BevanSecurity.Com
RM3
Cat. No.
To Alarm
To Auxiliary Device
Advertisement
Related Manuals for BRK electronic RM3
Summary of Contents for BRK electronic RM3
- Page 1 ® Cat. No. To Alarm 120V AC RELAY To Auxiliary Device •120V AC powered relay designed to send the alarm signal from BRK smoke and carbon monoxide alarms to auxiliary devices, such as emergency lights, strobes, bells door closures, etc. Features 120V AV relay has Form C contacts that switch between a normally open contact and a normally closed contact, when the alarm alarms Works with any AC powered BRK smoke or carbon monoxide alarm...
- Page 2 120V AV Cat. No. Relay Module SPECIFICATION DESCRIPTION: This accessory relay is designed to be used to activate auxiliary devices Relay Contact such as bells, lights, door closers, etc., when used with 120VAC powered Contact Ratings: (Maximum) smoke and carbon monoxide alarms. The relay contacts will activate whenever the detector sounds an alarm and will automatically deactivate when the detector stops alarming.
