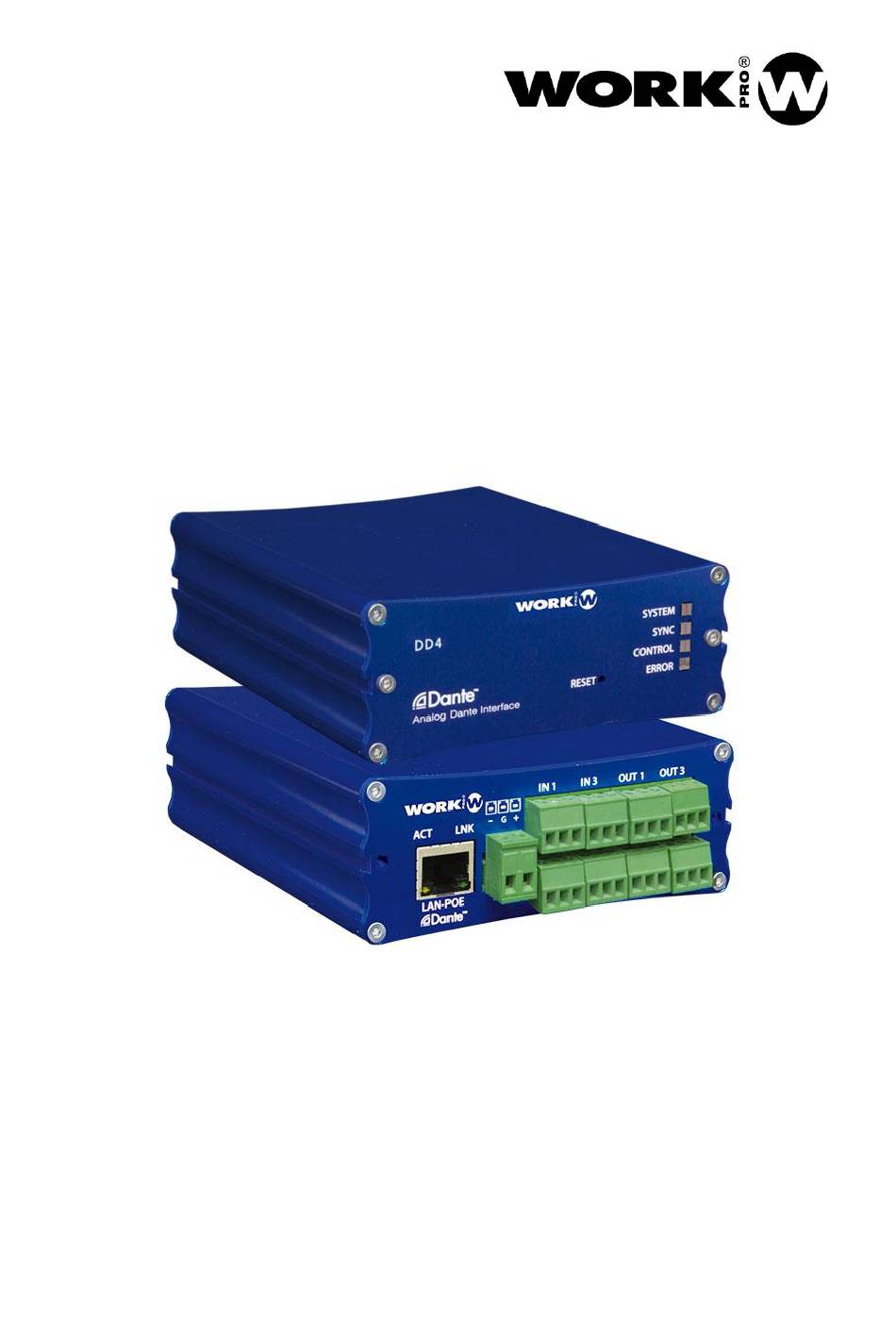

  • Page 1 DD2/DD4 User Manual Version1.1...

  • Page 2: Safety Instructions

    This symbol notifies the user about additional information or optional instructions. WELCOME TO WORK PRO Thank you for choosing the WORK PRO DD2/ DD4. This document contains essential information on the use of the system. Read this document carefully to become familiar with the system.

  • Page 3: Table Of Contents

    DD2/DD4 USER MANUAL VERSION 1.1 CONTENIDO 1. Introduction ............................3 2. Features ............................3 Description of the device ......................5 2.1.1. Status LEDs behaviour ....................6 2.1.2. Analog audio inputs ..................... 6 2.1.3. Analog audio outputs ....................7 2.1.4. LAN Port ........................8 2.1.5.

  • Page 4: Introduction

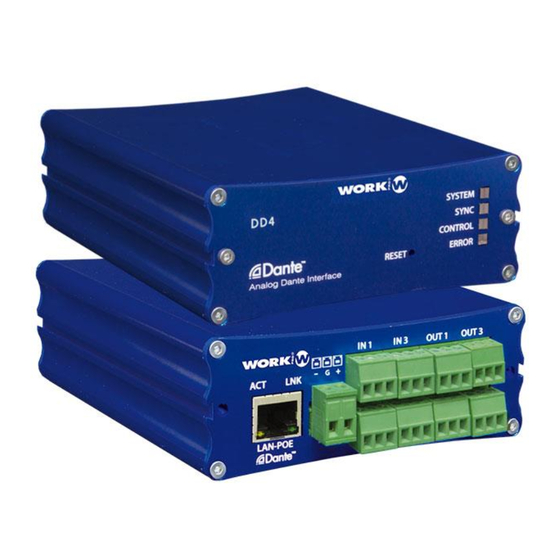

    VERSION 1.1 1. Introduction The DD2 and DD4 devices are gateways with 2 inputs / 2 outputs and 4 inputs / 4 outputs respectively, between analog audio and the Dante ™ AoIP protocol. The DD2 and DD4 devices have been designed to transmit line signals in a fixed installation, so their connectors are of the 3.5mm euroblock type.
  • Page 5 < -80 dB (20 kHz) Frequency response 20 Hz - 20 kHz Dimensions 109mm×133.75mm×40.45mm Peso 326 g Main supply External power supply 24 VDC / 500 mA PoE supply Class 0 802.3af DD2 consumption 2.4W DD4 consumption 3.85W DD2/DD4 www.workpro.es...

  • Page 6: Description Of The Device

    VERSION 1.1 Description of the device The features of the DD2 device, which are identical to the DD4 device, are described below, and only the number of inputs and outputs vary. 1. Reset button. Take the device to its factory settings. Turn on the device with this button pressed to make it effective.

  • Page 7: Status Leds Behaviour

    DD2/DD4 USER MANUAL VERSION 1.1 The external power supply is not provided with the device. 2.1.1. Status LEDs behaviour SYSTEM: • Red. The system is starting. • Green. The system is ready to operate. SYNC: • Red. Synchrony error. •...

  • Page 8: Analog Audio Outputs

    DD2/DD4 USER MANUAL VERSION 1.1 The connection of the input signal to the device can be balanced or unbalanced. UNBALANCED BALANCED 2.1.3. Analog audio outputs The analog audio output of the device can be balanced or unbalanced. To do this, keep in...

  • Page 9: Lan Port

    DD2/DD4 USER MANUAL VERSION 1.1 BALANCED 2.1.4. LAN Port RJ45 port for LAN connection. Allows PoE (Class 0 802.3af). Next to the RJ45 connector you will find two LEDs indicating the status of the device: LINK (green) The device is connected to the local network (LAN).

  • Page 10: Start Up

    DD2/DD4 USER MANUAL VERSION 1.1 To make use of all the Dante Controller functionalities, we recommend that you go to its manual, which you can download from the Audinate page. https://dev.audinate.com/GA/dante-controller/userguide/pdf/latest/AUD-MAN- DanteController-4.1.x-v1.0.pdf 2.2.1. Start up 1. Connect the analog audio signals to the emitting and receiving devices according to your needs.

  • Page 11: Network Level Configuration

    2.2.3. Network level configuration Automatic IP By default, DD2 / DD4 devices come with the automatic IP option selected. This means that if you have a DHCP server in your local network, it will distribute IPs to all devices with the automatic IP option enabled, including your PC.
  • Page 12 PC as automatic. Static IP On the other hand, DD2 / DD4 devices also offer the possibility of working with static IP. To select this IP address mode, having your PC in the same subnet as the devices, and through Dante Controller, double click on the device to be modified in the "Routing"...
  • Page 13 DD2/DD4 USER MANUAL VERSION 1.1 Apply and restart the device for the changes to take effect. To change the IP address of your PC (Windows) to static, go to Network and Sharing Center / Connection: Ethernet / Internet Protocol 4 Properties (TCP / IPv4) and configure the static IP of your PC.
  • Page 14 DD2/DD4 USER MANUAL VERSION 1.1 DD2/DD4 www.workpro.es...

  • Page 15: Accessories

    DD2/DD4 USER MANUAL VERSION 1.1 Accessories The DD2 / DD4 devices include a series of accessories for mounting on a wall or with the rack accessory BL AR 19 (not included): 2x Wings for mounting in a wall. 4 screws.
  • Page 16 DD2/DD4 USER MANUAL VERSION 1.1 DD2/DD4 www.workpro.es...
