Summary of Contents for alfaplam Alfa Term 35

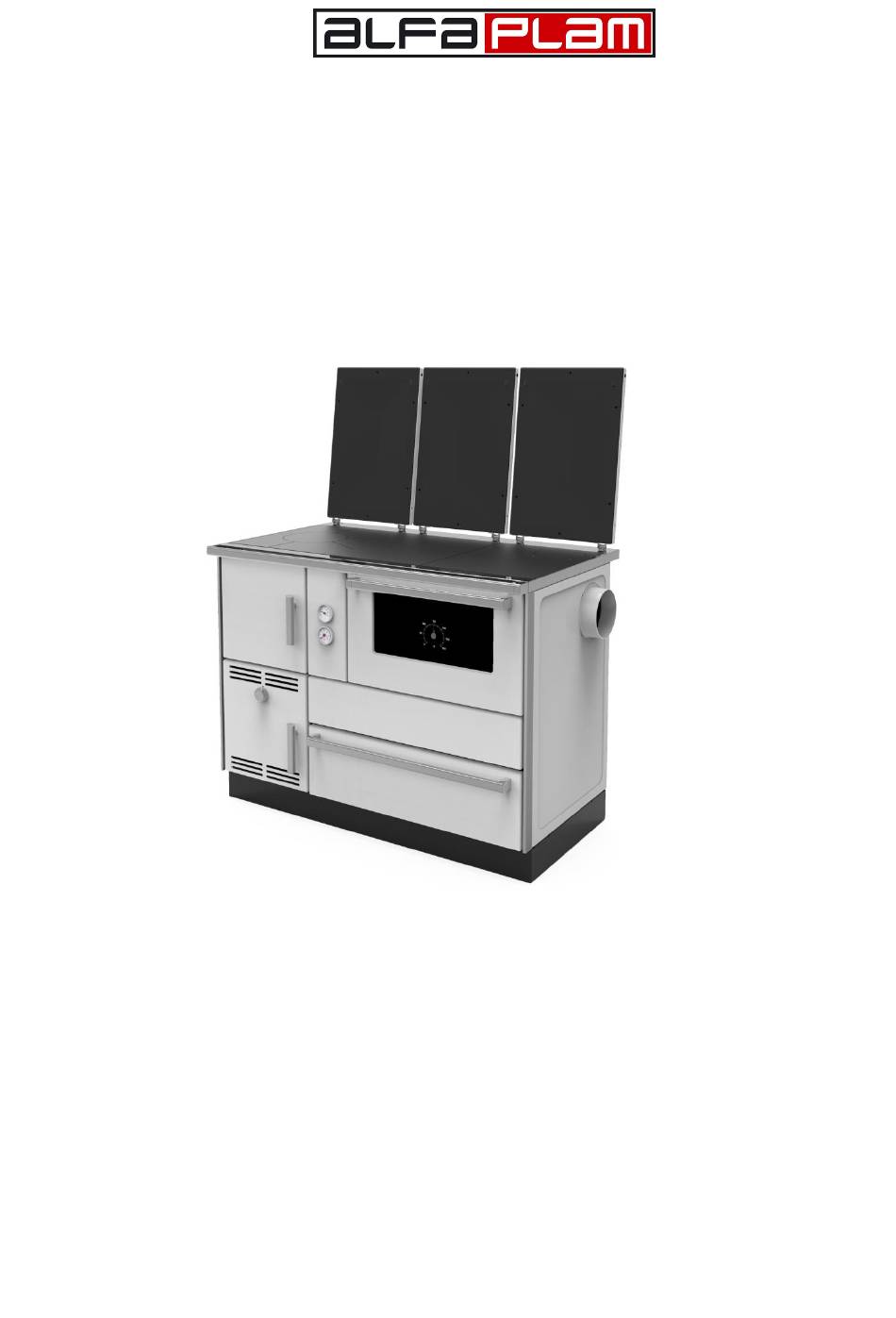

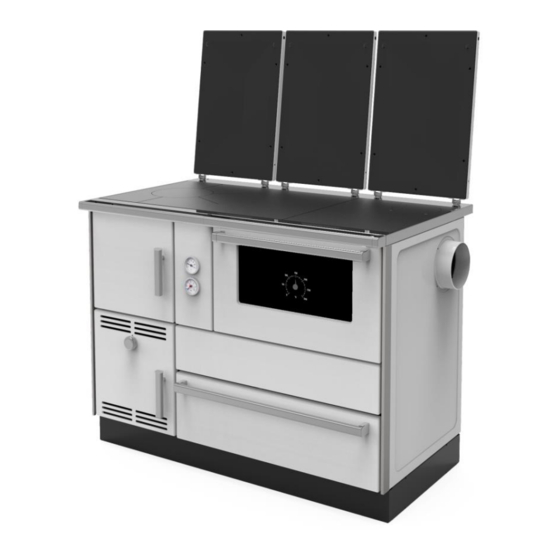

- Page 1 LOCAL HEATING COOKER ALFA TERM 35 INSTRUCTION FOR INSTALLATION, SETTING, AND USE...
-
Page 2: Technical Data
0. TECHNICAL DATA HEATING POWER WITH THE GRATE IN LOWER POSITION: 32 kW / 32 kW Rated heating power (wood/brown coal briquette) 10 kW / 10 kW Heating power by radiation of heat (wood/brown coal briquette) 22 kW / 22 kW Heating power transferred to water (wood/brown coal briquette) HEATING POWER WITH THE GRATE IN UPPER POSITION: 21.6 kW / 21.6 kW... -
Page 3: Purpose
CERTIFICATE OF COMPLIANCE Subject: Asbestos and cadmium absence We hereby confirm that the materials used for assembly of all our devices are free of asbestos and asbestos derivatives and that the materials used for welding do not contain cadmium, as prescribed by applicable norms. Subject: CE No. -
Page 4: Safety And Reliability Of Cooker Operation
Before installing up this cooker, please carefully read these instructions and observe all advice provided herein. Use only the recommended types of fuel: beech firewood, brown coal. In the space where the firing equipment is placed, ensure there is sufficient fresh air. If the windows and doors are sealed (made according to the energy efficiency criteria) or some other devices are also operational, such as hearing devices, vacuum cleaners, laundry driers, fans, etc. - Page 5 Place the chimney connection (collar) (Fig. 1, pos. 13), which is delivered together with the cooker and placed inside the wood box, and screw it on the outlet on the cooktop or on the side outlet. First remove the cover and use the same screws to fasten the collar.
-
Page 6: Installing The Cooker In A Water Heating System
Wrong Good Wrong Figure 4 6. INSTALLING THE COOKER IN A WATER HEATING SYSTEM The cooker should be installed by a professional, in accordance with appropriate design. The cooker is intended for local and central heating. The stove can be installed in closed or open heating circuit. Conform to the standards: JUS M.E7.201 and JUS M.E7.202. -
Page 7: Flow Pipe And Return Pipe (Fig. 5, Pos. 1 And 2 And Fig. 7, Pos. 18 And 19, Fig. 8, Pos. 13 And 14)
Figure 5 6.1 FLOW PIPE AND RETURN PIPE (Fig. 5, pos. 1 and 2 and Fig. 7, pos. 18 and 19, Fig. 8, pos. 13 and 14) The size of the flow pipe and return pipe outlets is 5/4” and may not be reduced or tapered before the first branch. -
Page 8: Safety Valve (Fig. 7, Pos. 5, Fig. 8, Pos. 3 And Fig. 5, Pos. 4)
- It is recommended to discharge the water from the system at least once, to empty the system of dirt. - For a system to which only the “Alfa term 35” cooker is connected, we recommend an expansion vessel of 30 (l) and not less than 25 (l), which should be fitted on the return pipe, as close to the boiler as possible, and no block valves can be fitted between the boiler and expansion vessel. - Page 9 Figure 7 1. Hot water boiler 11. Floor heating collector 2. Thermal release valve 12. Cold water filter 3. Thermal release valve probe 13. Slope pressure regulator with pressure gauge 4. Automatic air release cup 14. Hot water filter 5. Safety valve 15.
-
Page 10: Commissioning And Lighting The Fire
INSTALLATION DIAGRAM OF OPEN CIRCUIT SYSTEM COOKER FOR LOCAL HEATING ALFA TERM Figure 8 1. Hot water boiler 9. Open expansion vessel 2. Automatic air release cup 10. Valve 3. Safety valve 11. Spigot for filling and discharging 4. Hydraulic switch 12. -
Page 11: Using The Grate In The Upper And Lower Position
the corresponding position depending of the chimney draught and desired power, leave the butterfly handle button pulled out, and turn the rosette button for heating-baking to the right to position “0” (Fig. 13 and pos. 19) using a key. When the butterfly and rosette are positioned like this, the optimal utilisation of fuel is ensured and thus better heating as well. -
Page 12: Secondary And Tertiary Air Regulators
on the regulation knob. The cooker power is regulated by turning the knob ‘’+’’ to increase and the knob ‘’-‘’ to reduce the power. In the power regulation system, air regulator (damper) fully controls combustion air supply if other openings are closed. -
Page 13: Cleaning And Maintenance
Figure 16 Figure 17 Figure 18 Table 1 Fuel Heating power (kJ/kg.) Brown coal 15000 - 19000 Dry beech firewood 15300 NOTE: To ensure the nominal heating capacity and maximum yield, we recommend you burn dry beech wood cut at the length of L = 33 cm. 14. - Page 14 Pressure in the system is over 3 (2.5) bar and safety valve is not Safety valve Replace the safety valve discharging water from malfunctional system. Air in the installations Bleed the air from the radiators. Open all valves in the heating system and Valves toward radiators are enable normal water circulation in the shut...
- Page 15 If you do not have backup supply of the circulation pump or a thermal release valve installed, then you should open the bypass valve connected in parallel with the circulation pump on the pipeline system and remove embers from the cooker.
-
Page 16: Table Of Contents
17.0. THE PERIOD OF GUARANTEED SERVICE This implies the period during which we guarantee the service, tools and spare parts, starting with the date of purchase of the device. The duration of the guaranteed service is in accordance with the applicable laws and regulations. In case of change of model and design of the device, the deadline for replacement of parts that changed the design is within the legal deadline. - Page 17 OUTLINE DIMENSIONS OF ALFA TERM 35 COOKER Figure 19...
