Operating and Installation Instructions ProTect Safes Grad S2

1. Scope of delivery

The delivery comprises:

For models with electronic locks – operating instructions for the safe, operating instructions for the lock, anchor

bolt.

For models with key locks – 2 keys for the outer door, operating instructions for the safe, anchor bolt.

Important: Please check the bearing capacity of the floor prior to installing the safe. The floor must

indicate at least the weight of the safe per square metre.

The concrete should have a crushing strength of up to 30Nm (4,350psi) and should be reinforced with

reinforcing steel with a diameter of at least 8mm and a mesh spacing of 150mm.

(Generally, a floor bearing capacity of at least 0.5kg/cm² is applicable for all types of safes.) It is

recommended to be very careful when installing the safe. Prior to bolting the door should be opened and

closed for a few times to ensure functionality. In case the safe is to be bolted to the floor, the open door

should be lined with appropriate materials to prevent the risks associated with tipping of the safe.

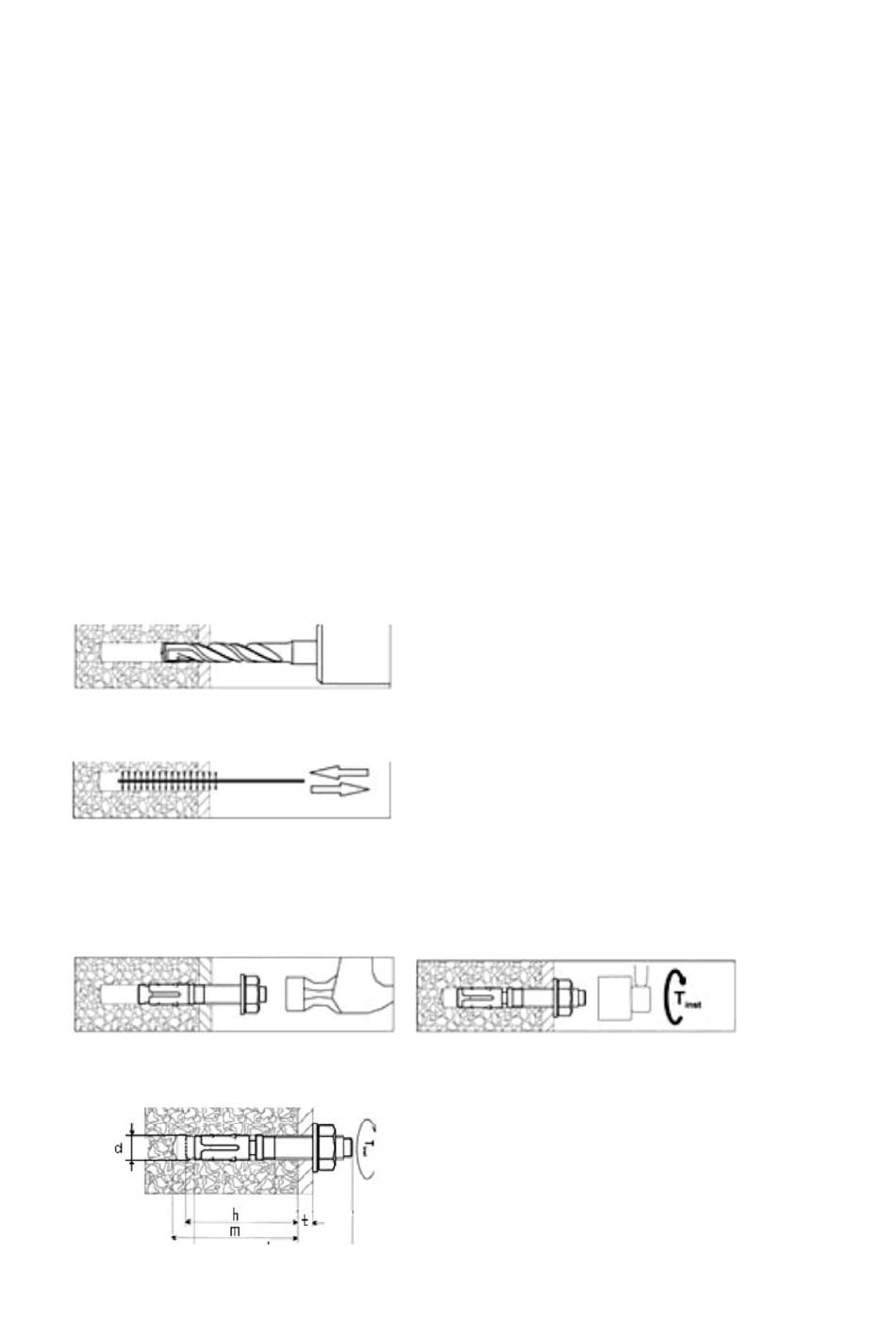

1. Mark the bore hole positions.

2. Drill the holes in accordance with your anchor bolt and the table in item 7.

3. Remove dust and place the anchor (without the bolt) into the bore hole.

4. Align the safe to the bore hole.

5. Secure the safe on the floor using the anchor bolt (the use of a torque wrench with the setting 30Nm is

recommended).

6. Press the plastic cover onto the anchor bolt.

Table of Contents

Do you have a question about the S2-100 and is the answer not in the manual?

Page 1 Operating and Installation Instructions ProTect Safes Grad S2 1. Scope of delivery The delivery comprises: For models with electronic locks – operating instructions for the safe, operating instructions for the lock, anchor bolt. For models with key locks – 2 keys for the outer door, operating instructions for the safe, anchor bolt.
Page 2 The hinges should be lightly lubricated at the appropriate points on a yearly basis. 6. Service Please contact your dealer or dial the following service number Service number: P: +49 (0) 221-88081930 7. Technical features of ProTect Safe Security level S2 Gaia Modell S2-100...
Page 3 Chronos 30P Modell S2-100 S2-120 S2-140 S2-160 S2-180 S2-200 * - allowed tolerance +/–10% of the weight of the products listed in the table Chronos 60P Modell S2-220 S2-240 S2-260 * - allowed tolerance +/–10% of the weight of the products listed in the table...
