Summary of Contents for SYCLOPE electronic HYDRO’Com Series

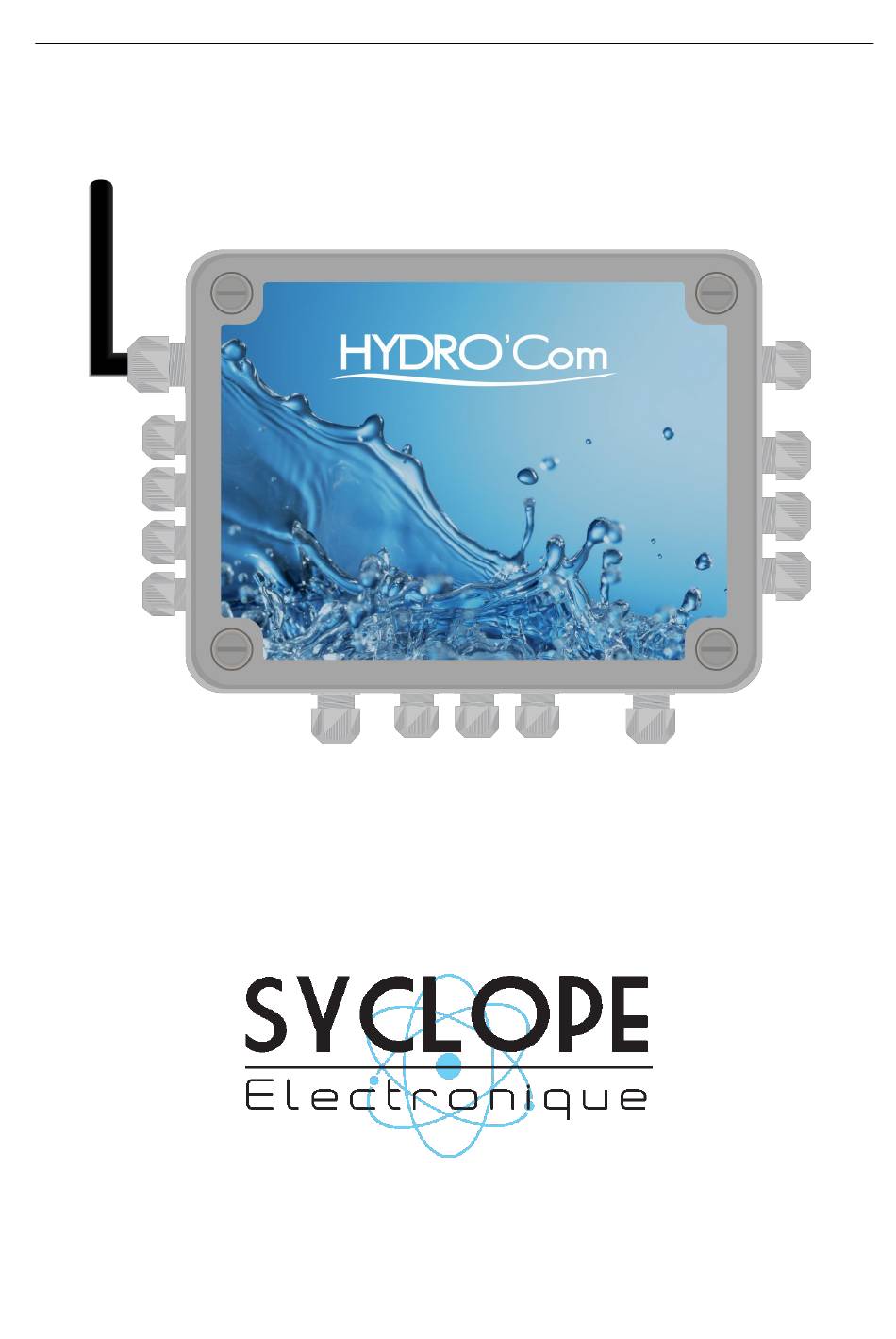

- Page 1 HYDRO’Com ® Communication gateway for private swimming pools Installation and commissioning instructions References HYDCOM, HYD7000, HYD7010 and HYD7020 Rev : 1.2...
- Page 2 General informations Page 2/36 General informations : SYCLOPE Electronique 2016 ® Manual of February 7 , 2018 Rev:1.2 Installation and commissioning instructions manual (Ref : DOC0257) Editor : SYCLOPE Electronique S.A.S. Z.I. Aéropole pyrénées Rue du Bruscos 64 230 SAUVAGNON - France – Tel : +33 559 337 036 Fax : +33 559 337 037 Email :...
-
Page 3: Table Of Contents
Summary Page 3/36 Summary General informations ......................4 Applicability ........................4 Use of the document ......................5 Symbols and signs ......................5 Stockage et transport ......................6 Packaging ......................... 6 Warranty .......................... 6 Environment and safety procedures ..................7 Use of the devices ......................7 User obligations ........................ -
Page 4: General Informations
General informations Page 4/36 General informations Applicability The HYDRO’Com ® communication gateway you have just purchased is an electronic device allowing connections to Internet for the various SYCLOPE apparatuses used for the water management of private swimming pools. It has been carefully developed and manufactured to ensure your greatest pleasure and peace of mind. -
Page 5: Use Of The Document
General informations Page 5/36 Use of the document Please read this entire document before starting to install, adjust or commission your controller device, in order to ensure the safety of swimmers, users and equipment. The information provided in this document must be strictly observed. SYCLOPE Electronique S.A.S. declines all responsibility in cases where failure to comply with the instructions of this documents is observed. -
Page 6: Stockage Et Transport
General informations Page 6/36 Stockage et transport It is important to store and transport your HYDRO’Com ® communication gateway in its original packaging in order to minimize risk of damage. Furthermore, the package must be stored in an environment that is protected against humidity and exposure to chemical products. -
Page 7: Environment And Safety Procedures
Environment and safety procedures Page 7/36 Environment and safety procedures Please: ➢ Read this manual carefully before unpacking, installing or commissioning this equipment ➢ Take into account all the hazards and recommended precautionary measures Failure to respect these procedures can result in serious injury to users or damage the device. Use of the devices HYDRO’Com ®... -
Page 8: Identification And Localization Of The Identification Plate
Environment and safety procedures Page 8/36 Make sure that the chemical sensors used with this device correspond well to the chemicals used. Refer to the individual technical note of each sensor. Chemistry of water is very complex, in case of doubt, contact immediately our engineering service or your approved installer/reseller. -
Page 9: Waste Disposal And Compliance
Environment and safety procedures Page 9/36 Waste disposal and compliance The recyclable packaging of the HYDRO’Com ® devices must be disposed of according to current regulations. Elements such as paper, cardboard, plastic or any other recyclable elements must be taken to a suitable sorting center. -
Page 10: Technical Features And Functions
Technical features and functions Page 10/36 III. Technical features and functions Technical features General characteristics Type Specification(s) Mark(s) Consumption 0,25A Maxi. (90VAC) to 0,1A Maxi. (240VAC) Power supply requirements Between 90 to 240VAC +/-10% Voltage category Class II Accept temporary overvoltage from the power supply Temporary overvoltage system. -
Page 11: Installation And Wirings
Installation and wirings Page 11/36 Installation and wirings Installation conditions To guarantee the users safety and to ensure correct operation of the HYDRO’Com ® communication gateway, please observe strictly the following instructions: ➢ Install the controller in a dry location. ➢... -
Page 12: Branchements Électriques
Installation and wirings Page 12/36 Branchements électriques The electrical installation must be performed in accordance with current regulations by an authorized personnel! A 30 mA differential circuit breaker must be installed! A breaker circuit of maximum 2A must be installed near the controller and easily accessible to stop the primary power supply. - Page 13 Installation and wirings Page 13/36 b) General electrical connections Socket MODEM location Antenna connector External GSM or WiFi antenna USB key for programming and stoking USB Connector for eternal stick Programming connector Fuse (315 mA Time-lag fuse type TR5) Terminal block for primary power supply connection Ground connector Relays outputs 4…20mA entry for Temperature sensor...
-
Page 14: Connection Of The Primary Power Supply
Installation and wirings Page 14/36 Connection of the primary power supply The HYDRO’Com ® communication gateway is equipped with a switching power supply. It is therefore able to be supplied by AC voltage comprised between 90V to 240V - 50/60Hz. ►... -
Page 15: Connection Of The "Free Of Potential" Entries
Installation and wirings Page 15/36 Connection of the “free of potential” entries The control entries named E1 to E4 are “free of potential”. An external switch must be used for activating or deactivating the function entry. The entries are not powered! Ex(+) : Switch Ex(-) : Switch Connection of the RS323C ports used to link the HYDRO controllers... -
Page 16: Connection Of The Gsm, Wifi And Ethernet Socket Modem For Internet Access
Installation and wirings Page 16/36 Connection of the GSM, Wifi and Ethernet socket MODEM for internet access The HYDRO’Com ® communication gateway can accept several type of socket Modems to establish communication away with internet site www.mysyclope.com. Connecting to the website “myHydro” allows to program the HYDRO’Com ®... -
Page 17: References Of The Hydro'com ® Communication Gateway With Included Modem
Installation and wirings Page 17/36 References of the HYDRO’Com ® communication gateway with included modem Reference Name HYD 7000 HYDRO’Com ® communication gateway type GSM HYD 7010 HYDRO’Com ® communication gateway type ETHERNET HYD 7020 HYDRO’Com ® communication gateway type WIFI Installation and commissioning instructions manual... -
Page 18: Presentation Of Myhydro Interface
Presentation and programming Page 18/36 V. Presentation of myHYDRO interface 1) Login The programming interface is available directly with your browser by the URL: http://hydro.mysyclope.com. A login and a password are necessary to access the application. 2) Main page As soon as connected, the main page of “myHydro” application appears as, for example, the following page: Immediately, the user is able to see the complete state of the HYDRO’Com ®... - Page 19 Presentation and programming Page 19/36 a. User Menu : Allows to define the profile of the user and the location of the connexion. Disconnection Management of the user profile Management of the location Definition of the site: Allows to name the entries and the slaves. b.
- Page 20 Presentation and programming Page 20/36 e. Informations about connected HYDRO controller Informations about the HYDRO pH/ORP controller connected to the first RS232C port. f. Statutes of the entries A red contour means the entry is activated (the opposite of the programmed “rest” state). It is possible to associate this state to another “alarm”...
-
Page 21: Graphic Page
Presentation and programming Page 21/36 Allows to show the main page of the site Allows to access to the graphic mode Allows to access to the alarm definitions Allows to access to the email sending’s Allows to access to the general programming 3) Graphic page In this section, the user can see all the graphs from data of connected HYDRO controllers and the internal temperature entry of the HYDRO’Com... -
Page 22: Alarm Page
Presentation and programming Page 22/36 4) Alarm page The alarm page shows the recording of the last five alarms registered by the HYDRO’Com ® communication gateway as well as for the two external HYDRO controller if connected. The alarms in red lighting represent the current alarms in progress. 5) Email page This page allows to program emails. -
Page 23: Programming Page
Presentation and programming Page 23/36 6) Programming page A simple click on logo allows to access to the programming page. During the loading of the page, the application “MyHydro” requests a reading of the HYDRO’Com ® communication gateway configuration. The programming page is shown as below: The superior band allows to confirm the programming and to save all parameters into the device. -
Page 24: Programming Control Inputs
Presentation and programming Page 24/36 7) Programming control inputs This window allows to configure the four control inputs. First, the user must choose of the type of entry needed. On/OFF input is equal to a simple switch. It can be “open” or “closed”. -
Page 25: Programming Analogue Input
Presentation and programming Page 25/36 8) Programming analogue input First, the user must choose the type of temperature measurement: “Air temperature” or “Water temperature”. Then, the corresponding programming window appears: The user must enter the following parameters: • The number of decimal after the comma must be defined according the choice of the user for displaying the measured value. -
Page 26: Programming The Slaves
Presentation and programming Page 26/36 When all periods of time are programmed, the user must record the programming by clicking on “Program” key. 10) Programming the slaves The window of programming the slaves allows to declare the slaves devices connected to the HYDRO’Com ®... -
Page 27: Programming The Modem
Presentation and programming Page 27/36 11) Programming the modem Before anything, the user must choose the type of Modem for connecting internet. Ethernet, Wi-Fi or GPRS modems are available for the HYDRO’Com ® communication gateway. When the modem is chosen, the configuration must be operated according the following windows: The first group of parameters “Internet connection”... - Page 28 Presentation and programming Page 28/36 • Mode : Type of network • Safety : Encoding of the network • Key : Word or code of encoding the network Specifically for the GSM modem, into the GPRS group, the field “APN” must contain the name of the GPRS provider.
-
Page 29: Using The Usb Stick
Using the USB stick Page 29/36 VI. Using the USB stick The USB stick allows two types of using: • Configuring the HYDRO’Com ® communication gateway • Update of the internal embedded software The USB stick must be formatted in FAT format. 1) Configuring the device For configuring the HYDRO’Com ®... -
Page 30: Maintenance
Maintenance Page 30/36 VII. Maintenance. The device has no particular maintenance. Repairs must be performed by specialized technician and must be executed in our factory. For any problem or councils in water treatment or in software or in any case of doubts, please contact our after sales service. - Page 31 CE compliance Page 31/36 Installation and commissioning instructions manual...
- Page 32 Notes Page 32/36 NOTES Installation and commissioning instructions manual...
- Page 33 Page 33/36 Installation and commissioning instructions manual...
- Page 34 Page 34/36 Installation and commissioning instructions manual...
- Page 35 Page 35/36 Installation and commissioning instructions manual...
- Page 36 SYCLOPE Electronique S.A.S. Z.I. Aéropole pyrénées Rue du Bruscos 64 230 SAUVAGNON - France – Tel : (33) 05 59 33 70 36 Fax : (33) 05 59 33 70 37 Email : syclope@syclope.fr Internet : http://www.syclope.fr © 2016-2018 by SYCLOPE Electronique S.A.S.
